2.7 Fire and Fault Tests
2.7.3 Manual Fire Test
2.7.2 Fault Test
• After alignment or maintenance, it is recommended that Fire and Fault tests are performed:
Although the Remote Fire Test adequately tests the Fire response of the system it is also possible to perform a
Manual Fire Test.
Slowly half-cover the Receiver. The Controller will indicate Fire after the Fire Delay Time.
Uncover the Receiver. The Controller will return to Normal state after approximately 5 seconds.
If Fire Latching Mode is set to ‘On’ then clear the Fire condition by:
• Applying a voltage between 5V and 40V to the external reset terminal
• Entering the Pass Code
• Disconnecting the power to the Controller for more than 20 seconds. System will clear latched fire when power
is re-applied.
Completely cover the Receiver taking less than 2 seconds to do so. The Controller will indicate Fault after the Fault
Delay time.
Uncover the Receiver. The Controller will return to Normal state after approximately 5 seconds.
2.7.1 Remote Fire Test

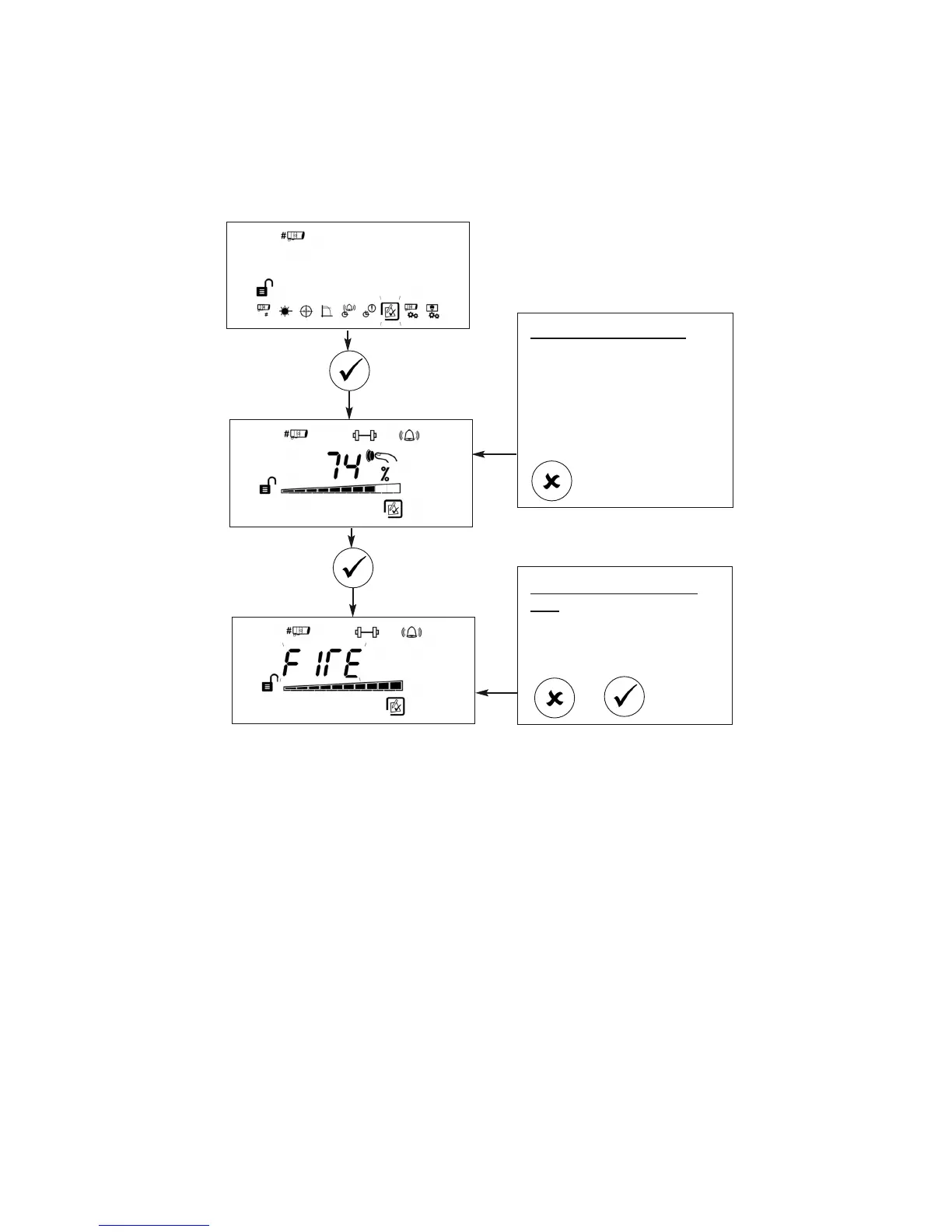

The Remote Fire Test allows the user to perform a Fire Test from the System Controller.
The Remote Fire Test is acceptable for Fire Authority Acceptance and Routine Maintenance per UL 268-5.
Receiver Fire LED Test
The Receiver will signal 'Fire',
the System Controller will stay
Normal.
To exit without performing
test, press:
Relay / Controller Wiring
Test
The System Controller signals
'Fire' to the Fire Control Panel.
To exit, press either:
OR
To Next Page
