2.7.2 Condenser fan(s)
The condensers of the [ CF ] EASY condensing units are equipped with single-phase fans.
Condensing units
Nr. of
Fans
Fan
speed
Diameter
Voltage
Power
input
Medium temperature
Low
temperature
Standard
Digital
Pcs
(rpm)
(mm)
V/ph/Hz
(W)
CFME020E
CFLE020E
1
830
450
220-240V /
1 Ph / 50 Hz
123
CFME025E
CFLE025E
CFME030E
CFLE030E
CFME040E
CFLE040E
CFDE040E
2
246
CFME050E
CFDE050E
CFLE050E
CFME060E
CFDE060E
CFLE060E
CFME075E
CFDE075E
CFLE075E
Table 4: Condenser fans technical data
2.7.3 Housing
[ CF ] EASY condensing units with BOM 304 & 454 have additional housing features:
 Controller-window in front of the cabinet door. The window is IP54 and shows the current
value of the electronic controller.
 The main power switch is installed on cabinet door and allows to de-energize the unit
without opening of the cabinet door. To open the door the main power switch must be in Off
position.
 The quick-locks allows easy and quick opening of the cabinet door by means of the cabinet
key.
 The cabinet key is delivered with the unit. It is fixed on one of the piping connections by
means of a cable strap.

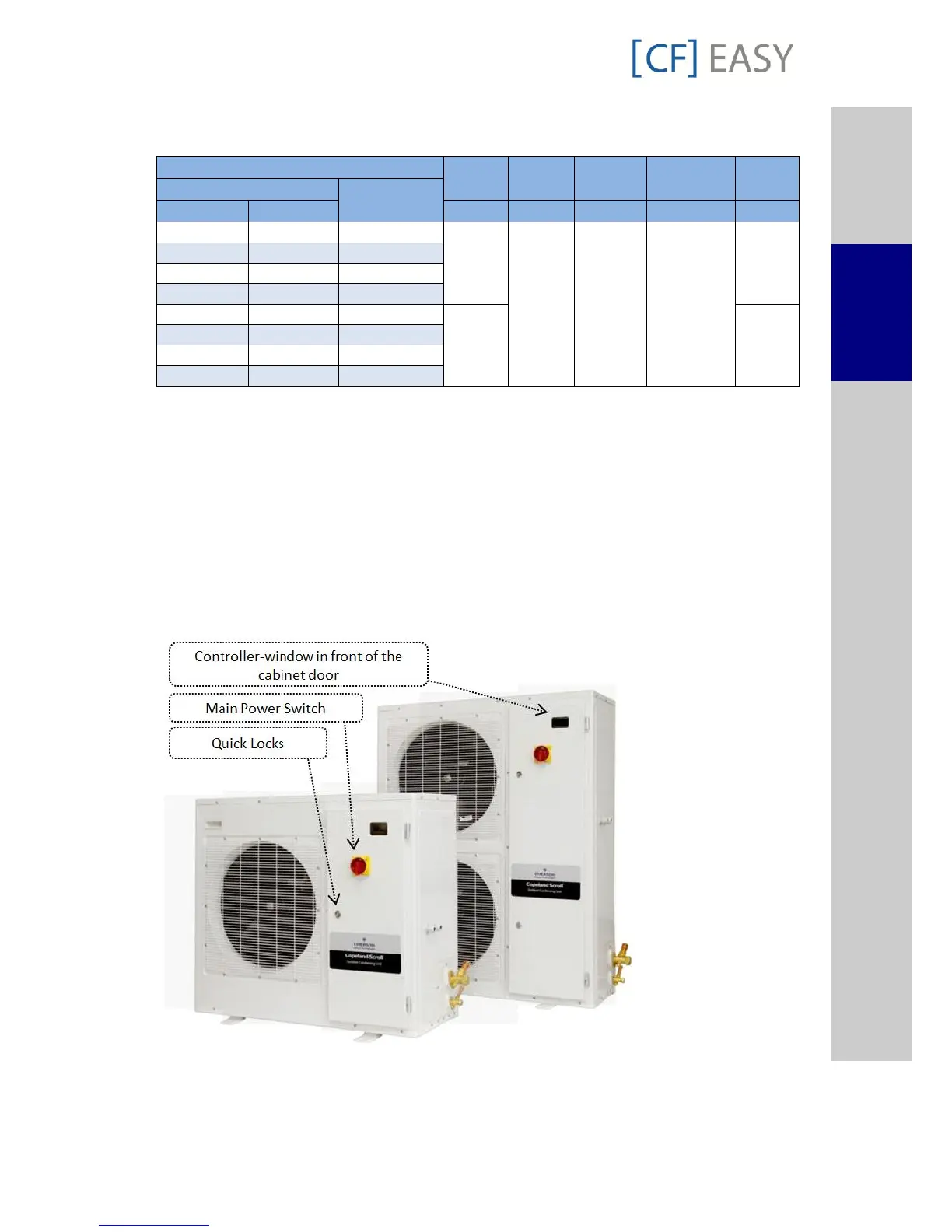

Figure 2: [ CF ] EASY unit housing
