ROBOTICS TXT 4.0 CONTROLLER
schertechnik TXT Operating manual_EN | 10. November 2021, 9:18 PM
MASTER OR EXTENSION
This symbol indicates whether the Controller is set at the Master or Extension.
M = operated as the Master (LED of the ON/OFF button illuminated blue); E = operated as Extension (LED of the
ON/OFF button illuminated green).
Changes can be made in the Settings | Properties menu.
Master:
The Controller set as the master receives control commands directly from the PC and transmits them to the
extensions.
Extension:
The Controller set as the extension receives control commands only from the master.
Up to 9 extensions are possible.
Single:
In this mode, using the CAN interface to connect additional TXT 4.0 Controllers as expansions is not supported.
This results in an energy savings of up to 10%, and therefore a longer battery life.
TIME
Displays the current set time. This can be changed using the Settings| Date and time menu.

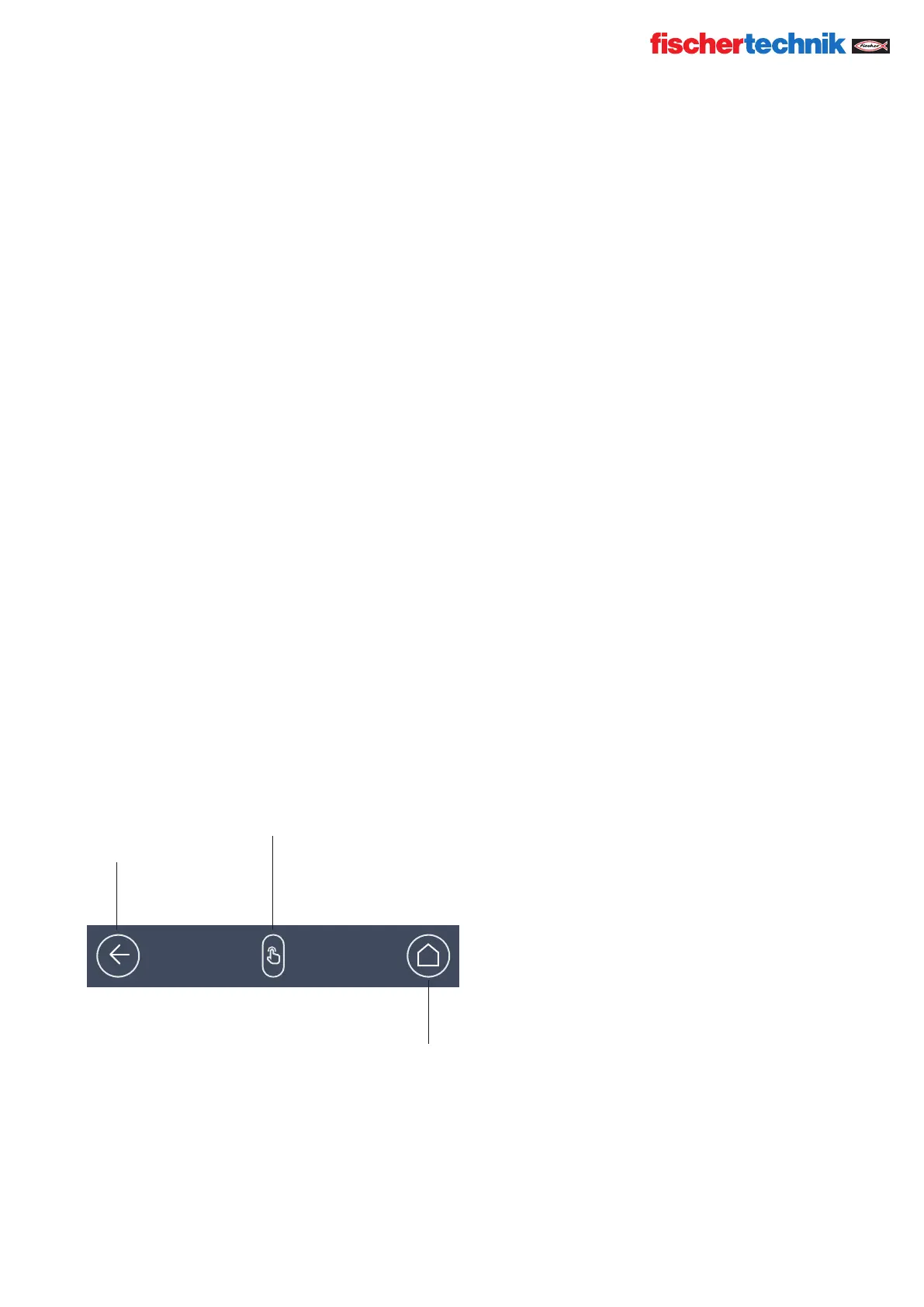

CONTROL ELEMENTS
The user can navigate through the menu by touching the control elements.
One step back
in menu
Scroll/swipe
To scroll through longer menus (appears only if the menu requires).
Back to main menu
