fischertechnik ROBOTICS TXT 4.0 User Manual

© Copyright 2001-2021 schertechnik GmbH | Klaus-Fischer-Straße 1 | 72178 Waldachtal
08
ROBOTICS TXT 4.0 CONTROLLER
schertechnik TXT Operating manual_EN | 10. November 2021, 9:18 PM
ROBOTICS TXT 4.0 CONTROLLER / EXPANSIONS
Up to nine Controllers can be linked via the two 6-pole expansion plugs (7). These plugs can also e used to connect
I2C components (such as combination sensors, environmental sensors, and RGB gesture sensors).
FISCHERTECHNIK USB CAMERA
The camera can be connected to the USB host interface (USB1) (1).
WIRELESS TRANSMISSION
The Controller can connect to other devices, such as a PC, tablet or smartphone, via Bluetooth or Wi-Fi.

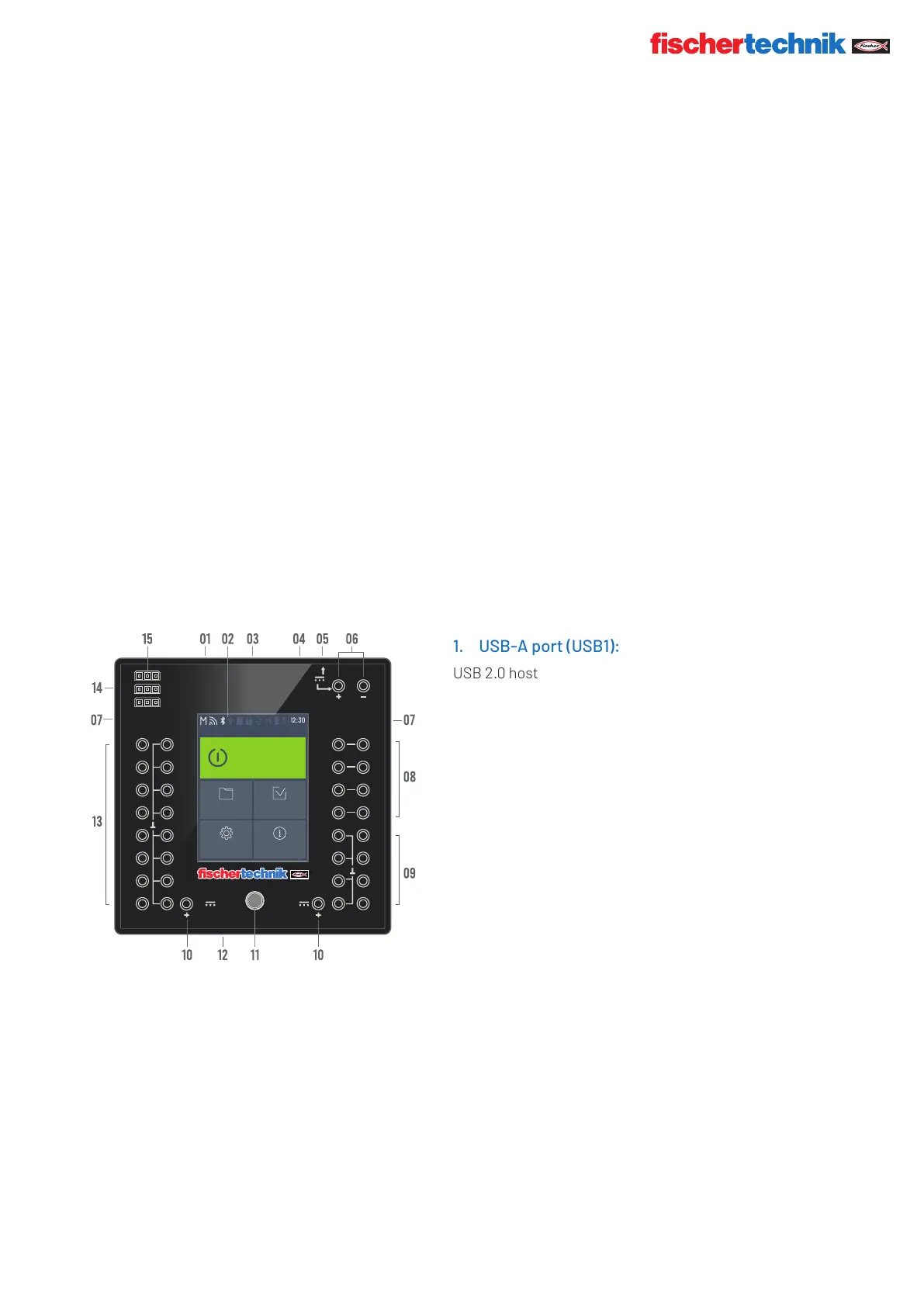

PORT, PLUG AND BUTTON FUNCTIONS
01 02
03 04
05 06
07 08
M1
M2
M3
M4
C1
C2
C3
C4
I1
I2
I3
I4
I5
I6
I7
I8
EXT1
EXT2
ON/OFF
TXT 4.0 Controller
S 1
S 2
S 3
SDUSB1 USB2
9V
OUT
IN9V
9V
OUT
Program1
12:30
PROGRAMM
NAME
STOPPED
PROGRAM 01
Program Running
Test
InfoSettings
File
Program1
12:30
01
0
0 0
1010
1
1
0
11
1
00
0 0
0
1
1. USB-A port (USB1):
USB 2.0 host connection, for instance for schertechnik
USB camera art. No. 152522 or USB stick.
2. Touch display
The color touch display shows the status of the Controller,
which programs are loaded, and where the user is in
the menu. Functions and programs can be selected,
activated or deactivated. The user can display the
values of variables or values from analog sensors while a
program is running. A helpful menu overview is provided
in the “Settings (Menu overview)” section. Swipe gestures
are supported.
3. Micro SD card slot
A Micro SD card ts in this slot (not included in the scope of delivery) to expand the device memory.
4. Mini USB port (USB2):
The USB 2.0 port (1.1 compatible) connects to the PC. A cable of this type is included
