Fisher & Paykel ActiveSmart RS90A Installation Instructions

8

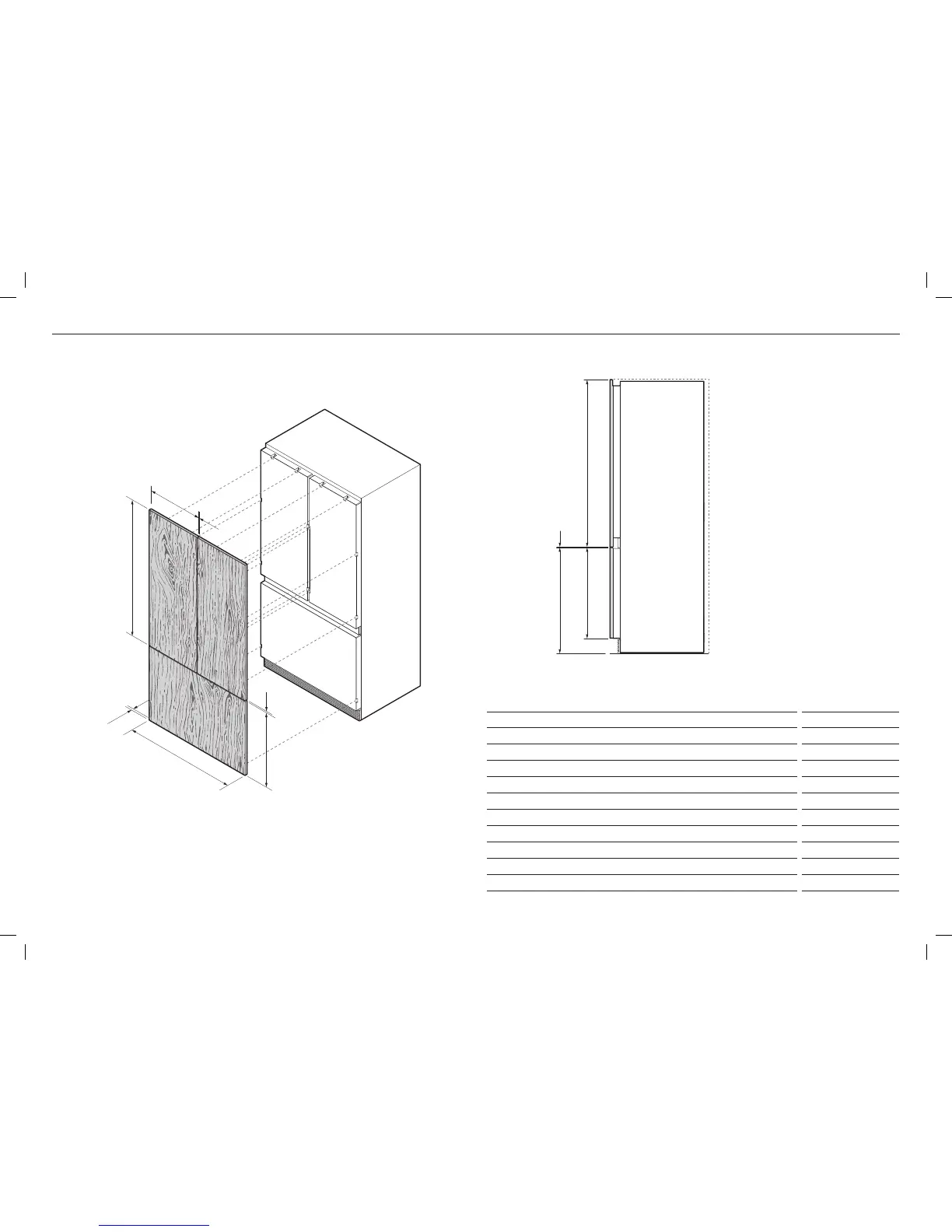

6 CUSTOM DOOR PANEL DIMENSIONS
When integrating your non-Ice & Water refrigerator with custom door panels, please follow the installation instructions provided with the integrating parts.
ISO VIEW
H
F
D
g
A
B
C
PROFILE VIEW
D
g
A
E
PROFILE VIEW
ISO VIEW
H
F
D
g
A
B
C
PROFILE VIEW
D
g
A
E
ISO VIEW
RS90A
CUSTOM DOOR PANEL DIMENSIONS mm
A
Height of top door panel 1096
B
Width of top door panel 446
C
Gap between top door panels 4
D
Height of bottom drawer panel 598
E
Height from bottom of product to top of bottom drawer panel 698
F
Width of bottom drawer panel 896
G
Gap between top door panels and bottom drawer panel 4
H
Maximum depth of custom panels 18
Maximum weight of an individual top door panel 10kg
Maximum weight of bottom drawer panel 9.5kg
Custom door panels and handles to be manufactured and fitted by cabinetmaker.
RS90A model shown only.
When designing custom door panels, these are only available for non-Ice & Water models.
