Type 2500
30

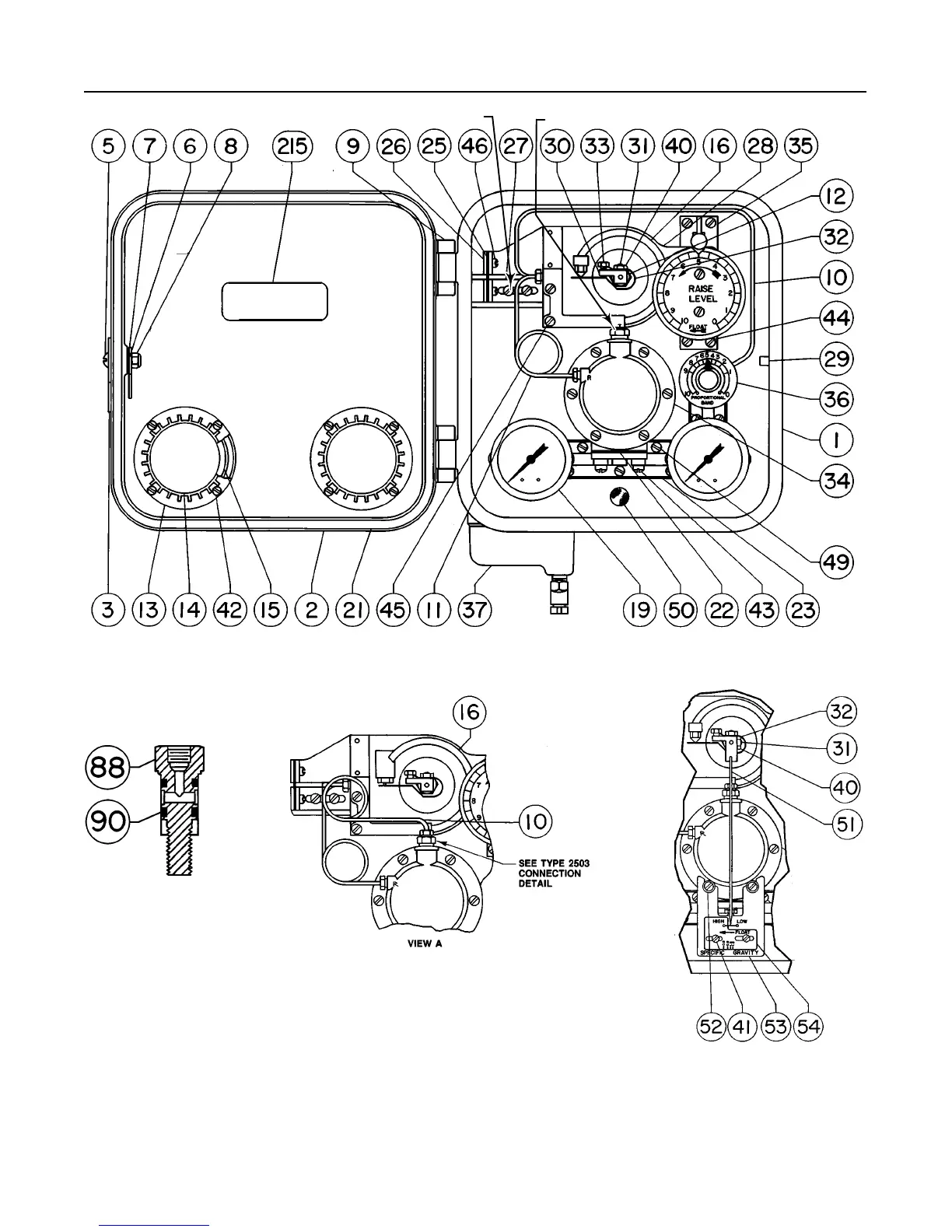

Figure 19. 2500 Series Controller / Transmitter Constructions
30A8865–D/DOC
32B0465–B/DOC
30A8869–D/DOC
30A8866–C/DOC
TYPICAL CONTROLLER
TYPE 2503 CONNECTOR DETAIL
ORIFICE ASSEMBLY
(SEE FIGURE 21)
TYPE 2503R CONTROLLER
CONSTRUCTION
DETAIL OF INDICATOR
ASSEMBLY ON C VERSIONS
SEE VIEW A
LEVEL SET MOUNTING SCREWS
NOTE:
PARTS NOT SHOWN 4, 24, 38, 39, 47, AND 48.
