Type 304 & 304L
16

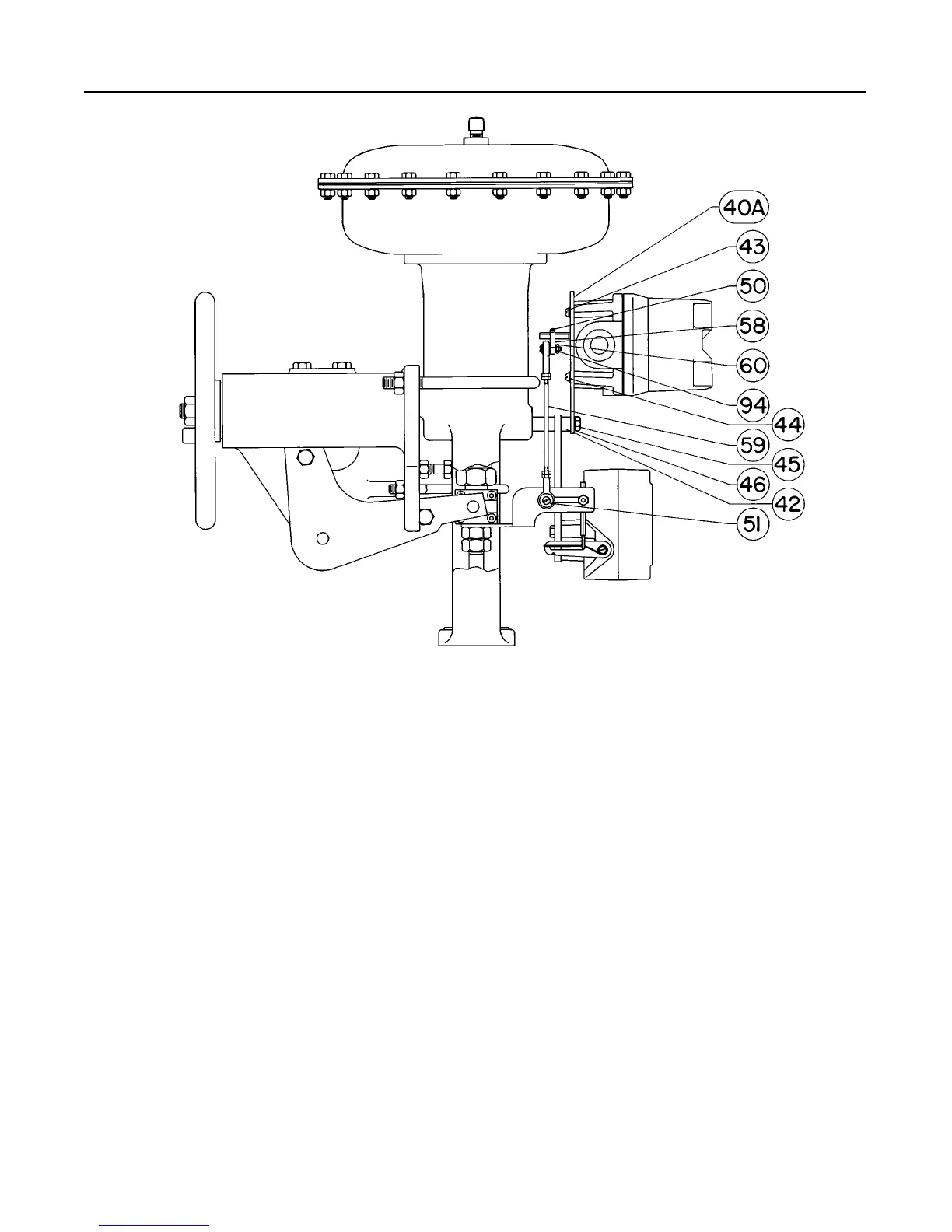

Figure 15. T ypical Switch Mounting for All Sizes of T ype 657 and 667 Actuators with
Handwheel (MO) and T ype 3582 Positioner or T ype 3583 T ransmitter
NOTE:
REFER TO THE PARTS LIST FOR KEY NUMBER DESCRIPTION AND
ORDERING INFORMATION. REFER TO THE ADDITIONAL PARTS FOR FIELD
MOUNTING SECTION FOR ACTUATOR PARTS REQUIRED FOR MOUNTING
THE TYPE 304 AND 304L SWITCHES.
42A1841–C / IL
Key Description Part Number
75 Hook bolt, steel
Sizes 40, 45, 46, 50, 60, and 70 (2 req’d) 10A8522X012
Size 70MO w/maximum 3 or 4 in. (76 or 102
mm) travel (2 req’d) 10A1934X012
Size 87 (2 req’d) 11A6712X012
Sizes 80 and 80MO (2 req’d) 11A6706X012
Size 100 (3 req’d) 15A6807X012
91 Hex nut, pl steel
Sizes 40, 45, 46, 50, 60, and 70 (4 req’d) 1A375324112
Size 70MO w/maximum 3 or 4 in. (76 or 102 mm)
travel (4 req’d) 1A375324112
Sizes 80, 87, and 80MO (6 req’d) 1A375324112
Size 100 (9 req’d) 1A375324112
94 Lockwasher, pl steel (2 req’d)
Sizes 34MO, 40MO, 45MO, 50MO, and 60MO
w/3582 or 3583 1A329128982
Type 667 Actuator (figures 7, 13, 14, and 15)
40A Mounting plate, steel
Sizes 30, 34, 34MO, 40MO, and 45MO 2N253528992
Sizes 34MO, 40MO, and 45MO w/3582 3U313025092
Size 40, 45, and 46 w/covered yoke 2N253628992
Sizes 50 and 60 w/covered yoke 2N253728992
Size 70 w/covered yoke 3N879925022
40 Mounting plate assembly, steel
Size 40 10A8524X012
Key Description Part Number
40 Mounting plate assembly, steel (cont)
Sizes 45 and 46 12A4277X012
Sizes 50 and 60 10A8528X012
Sizes 70 and 70MO w/maximum 3 in. (76 mm)
travel 11A6703X012
Sizes 70 and 70MO w/maximum 4 in. (102 mm)
travel 15A7816X012
Sizes 80 and 80MO 11A6705X012
Size 87 11A6711X012
Size 100 15A6809X012
41 Clip, pl steel
Sizes 80, 80MO, and 87 1N254136012
Size 100 15A6808X012
42 Spacer, pl steel (2 req’d)
Sizes 34MO and 40MO 1F906724092
Sizes 34MO and 40MO w/3582 1V102624092
Size 45MO 1J830724092
43 Machine screw, pl steel (4 req’d)
Size 30 1B822728992
Sizes 34, 34MO, and 40MO 1H340328992
Size 34MO, 40MO, and 45MO w/3582 1A345928982
Size 40 w/covered yoke 1N254328992
All other sizes 1C582428982
44 Lockwasher, pl steel (4 req’d) 1C225628982
45 Cap screw, pl steel
(2 req’d)
Sizes 34MO, 40MO, and 45MO w/3582 1D770424052
