Fisher 304 - Page 15

Type 304 & 304L
15

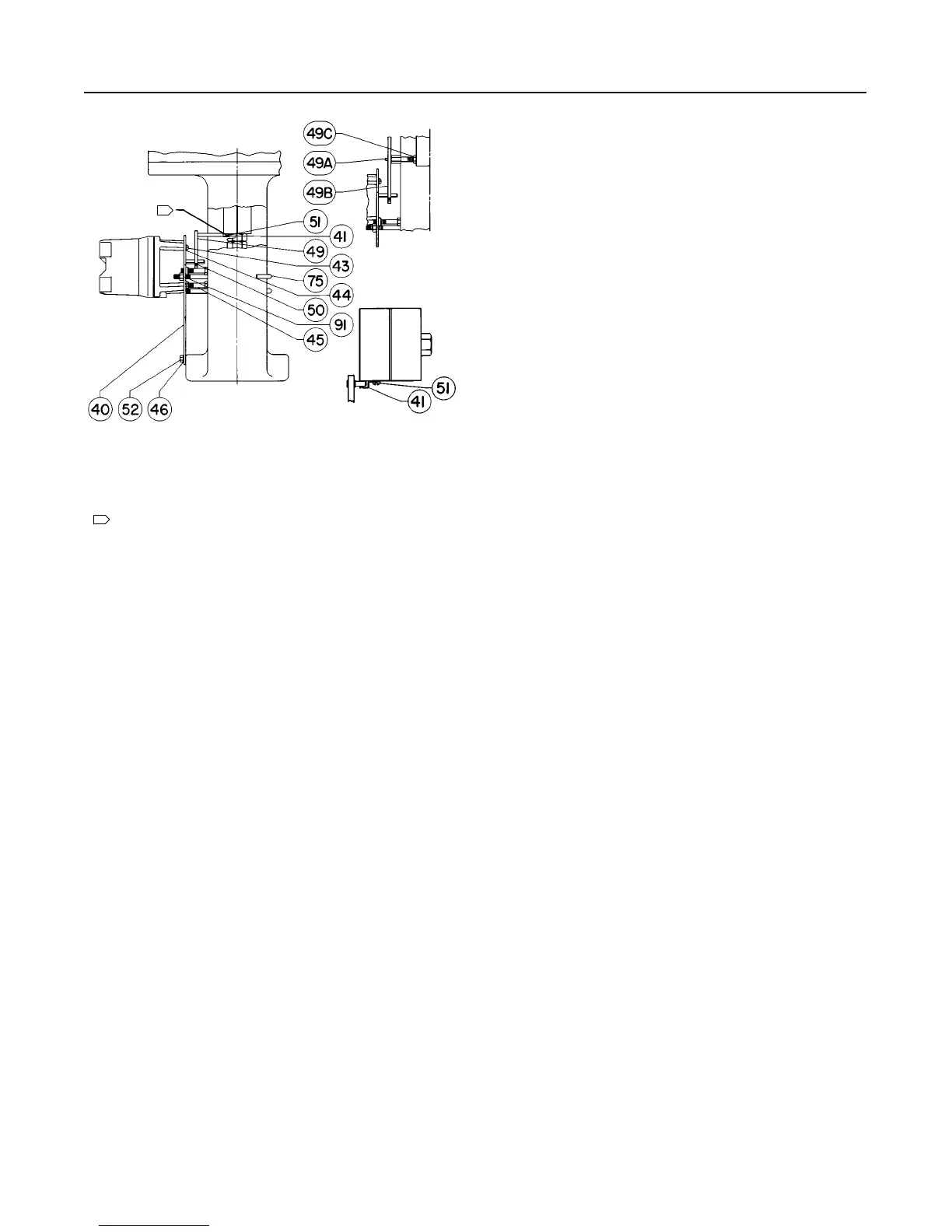

Figure 14. T ypical Switch Mounting for T ype 470 Actuator ,
Size 80 and 100; 478-16 Actuator , Sizes 80 and 100;
and T ype 657 and 667 Actuators, Sizes 80, 80MO,
and 87
NOTE:
REFER TO THE PARTS LIST FOR KEY NUMBER DESCRIPTION AND
ORDERING INFORMATION. REFER TO THE ADDITIONAL PARTS FOR FIELD
MOUNTING SECTION FOR ACTUATOR PARTS REQUIRED FOR MOUNTING
THE TYPE 304 AND 304L SWITCHES.
STEM CONNECTION FOR LESS THAN 8–1/8 INCHES (207 mm) TRAVEL
HOOK-UP FOR
8-1/8 INCHES
(207 mm) TRAVEL
STEM CONNECTOR
FOR SIZE 80 AND
LARGER
42A2156–D
A3202–2 / IL
1
1
Key Description Part Number
42 Plate spacer, steel (2 req’d)
Sizes 34MO and 40MO 1F906724092
Sizes 34MO and 40MO w/3582 or 3583 1V102624092
Size 45MO 1J830724092
Sizes 50MO and 60MO w/3582 or 3583 1J830724092
43 Machine screw, pl steel (4 req’d)
Size 30 1B822728992
Size 34, 34MO, 40MO,
and size 40 w/covered yoke 1H340328992
Sizes 34MO, 40MO, 45MO, 50MO, and 60MO
w/3582 or 3583 1A345928982
All other sizes 1C582428982
44 Lockwasher, pl steel (4 req’d) 1C225628982
45 Cap screw, pl steel
Sizes 30 and 34 and size 40 w/covered
yoke (3 req’d) 1C631224052
Sizes 34MO and 40MO (3 req’d) 1A352624052
Sizes 45, 46, and 70 w/covered yoke (2 req’d) 1C631224052
Sizes 34MO, 40MO, and 45MO
w/3582 or 3583 (2 req’d) 1D770424052
Sizes 40, 45, 46, 50, 60, and 70 (2 req’d) 1A352524052
Size 45MO (2 req’d) 1C379124052
Sizes 50 and 60 w/covered yoke (3 req’d) 1C631224052
Sizes 50MO and 60MO w/3582 or 3583 (2 req’d) 1F960324052
Size 70MO w/maximum 3 or 4 in (76 or 102
mm) travel (2 req’d) 1A352524052
Sizes 80 and 80MO (2 req’d) 1A344524052
Size 87 (2 req’d) 1A914524052
Size 100 (3 req’d) 1A344924052
Key Description Part Number
46 Lockwasher, pl steel
Sizes 30, 34, 34MO, 40MO, and 45MO (3 req’d) 1C225728982
Sizes 34MO, 40MO, 45MO, 50MO and 60MO
w/3582 or 3583 (2 req’d) 1C225728982
Sizes 40, 45, 46, 50, 60 and 70
w/covered yoke (3 req’d) 1C225728982
Size 70MO w/maximum 3 or 4 in. (76 or 102
mm) travel (1 req’d) 1C225728982
Size 100 (total of 4 req’d)
(3 req’d) 1A505628982
(1 req’d) 1C225728982
Sizes 40, 45, 46, 50, 60, 70, 80, 80MO,
and 87 (1 req’d) 1C225728982
47 Plate spacer, pl steel
Sizes 30 and 34 (none req’d) - - -
Sizes 34MO and 40MO 1F906724092
Sizes 40, 45, and 46 1N254324102
Size 45MO 1U9573X0012
Sizes 45, 46, and 70 w/covered yoke 1J915424102
Sizes 50, 60, and 70 and sizes 40, 50 and 60
w/covered yoke (none req’d) - - -
Size 70MO w/maximum 3 or 4 in (76 or 102
mm) travel (none req’d) - - -
49 Arm assembly, pl steel and stainless steel
Sizes 30, 34, 34MO and 40MO 1U9987000A2
Sizes 40, 45, 46, 50, and 60 1U9987000A2
Sizes 40, 45, 46, 50, and 60 w/covered yoke 1U9987000A2
Size 45MO 1V6323X0012
Size 70 and size 70 w/covered yoke 1N8083000A2
Size 70MO w/maximum 3 in. (76 mm) travel 1N8083000A2
Size 70MO w/maximum 4 in. (102 mm) travel 1R5304000A2
Size 80MO 13A0480X012
Sizes 80, 87, and 100 11A6825X012
50 Cap Screw, Hex Socket Head, steel 1H3697X0022
51 Machine screw, pl steel (2 req’d)
Sizes 34MO, 40MO, 45MO, 50MO, and 60MO
w/3582 or 3583 1V405828982
Sizes 80, 80MO, 87, and 100 1E490528982
52 Cap screw, pl steel
Sizes 30, 34, 34MO, and 40MO (none req’d) - - -
Sizes 40, 45, and 46 and sizes 45, 46, and
70 w/covered yoke 1A352624052
Sizes 40, 50, and 60 w/covered yoke (none req’d) - - -
Size 45MO 1C379124052
Sizes 50, 60, 70, 80, 80MO, and 87 1C631224052
Size 70MO w/maximum 3 or 4 in. (76 or 102
mm) maximum travel 1C631224052
Size 100 1A381624052
54 Mounting spacer, pl steel (4 req’d)
Size 30 1N254224102
Sizes 34, 34MO, and 40MO 1N254324102
Size 40 w/covered yoke 1N254324102
Sizes 45, 46, 50, and 60
w/covered yoke (none req’d) - - -
58 Arm, pl steel
Sizes 34MO, 40MO, 45MO, 50MO, and 60MO
w/ 3582 or 3583 1N807625142
59 Turnbuckle, pl steel
Sizes 34MO, 40MO, 45MO, 50MO, and 60MO
w/ 3582 or 3583 1R683999012
60 Hex Nut, pl steel (2 req’d) (not shown)
Sizes 40, 45, 46, 50, 60, 70, and 70MO 1A342124122
60 Hex nut, pl steel (2 req’d)
Sizes 34MO, 40MO, 45MO, 50MO, and 60MO
w/3582 or 3583 1A839628982
