Type 304 & 304L
14

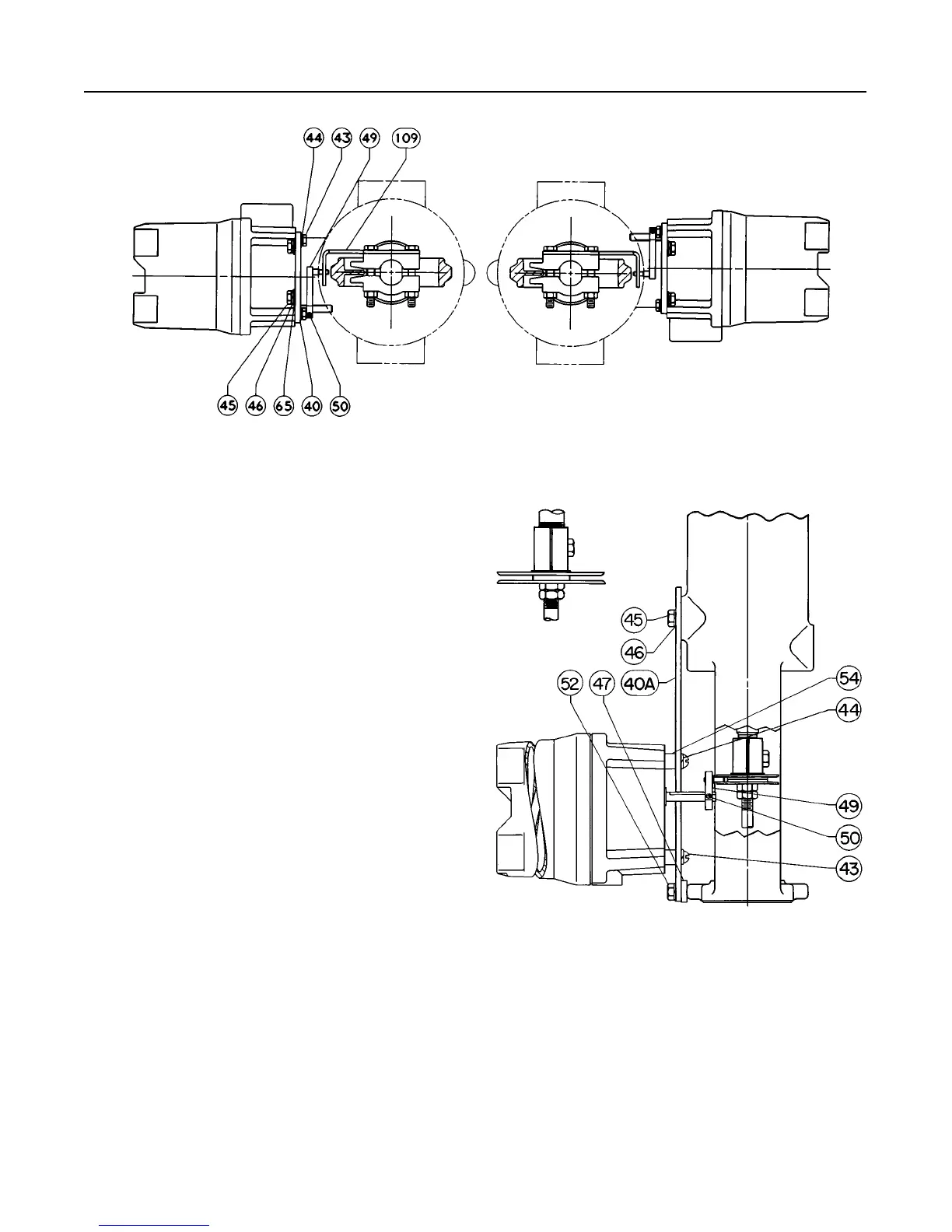

Figure
12. T
ypical Switch Mounting for T
ype 585C and 585CR Actuators
44B6341 / IL
Key Description Part Number
47 Spacer, pl steel (4 req’d)
Sizes 25 & 50 1N254324102
105 Sleeve, 416 stainless steel 18A0640X012
106 Operating arm, pl steel
Sizes 25 and 50 10B9997X012
Size 100 21B2692X012
Type 585C and 585CR Actuators (figure 12)
40 Mounting Plate, (steel) 24B6331X012
43 Cap Screw, zn pl steel (4 req’d) 1A391724052
44 Lockwasher, pl steel (4 req’d) 1C225628982
45 Cap Screw, pl steel (2 req’d) 1A352624052
46 Lockwasher pl steel (2 req’d) 1C225728982
65 Washer pl steel (2 req’d) 1B865928982
49 Arm Assembly 1U9987000A2
50 Cap Screw, S31600 SST 1H3697X0022
109 Stem Bracket, S30400 SST ENC HT
Size 25 24B6318X012
Size 50 24B6332X012
Type 657 Actuator (figures 7, 13, 14, and 15)
40A Mounting plate, steel
Sizes 30, 34, and 34MO 2N253528992
Size 34MO, 40MO, 45MO, 50MO, and 60MO
w/3582 or 3583
3U313025092
Sizes 40, 45, and 46 w/covered yoke 2N253628992
Sizes 40MO and 45MO 2N253628992
Sizes 50 and 60 w/covered yoke 2N253728992
Size 70 w/covered yoke 3N879925022
40 Mounting plate assembly, pl steel
Sizes 40, 45, and 46 10A8524X012
Sizes 50 and 60 10A8528X012
Size 70 12A6191X012
Size 70MO w/maximum 3 in. (76 mm) travel 11A6703X012
Size 70MO w/maximum 4 in. (102 mm) travel 15A7816X012
Sizes 80 and 80MO 11A6705X012
Size 87 11A6711X012
Size 100 15A6809X012
Figure 13. T
ypical Switch Mounting for T
ype 657 and 667
Actuators, Sizes 30, 34, and 34MO; and Size 40
through 70 with Covered Y
oke
NOTE:
REFER TO THE PARTS LIST FOR KEY NUMBER DESCRIPTION AND
ORDERING INFORMATION. REFER TO THE ADDITIONAL PARTS FOR FIELD
MOUNTING SECTION FOR ACTUATOR PARTS REQUIRED FOR MOUNTING
THE TYPE 304 AND 304L SWITCHES.
30A7540–F
Key Description Part Number
41 Clip, stainless steel
Sizes 80, 80MO, and 87 1N254136012
Size 100 15A6808X012
