67C Series
8
Includes auto-drain (key 2),
four ange screws (key 3), dripwell O-ring (key 4), and dripwell
(key 5). Note: Temperature rating is 40° to 175°F (4° to 79°C).
Types 67CF and 67CFR
Nitrile (NBR) R67ADNX0012
Fluorocarbon (FKM) R67ADFX0012
Types 67CFS and 67CFSR
Nitrile (NBR) R67ADNX0022
Fluorocarbon (FKM) R67ADFX0022
1 Body
Type 67C or 67CR, Aluminum T40643T0RG2
Type 67CS or 67CSR, CF3M/CF8M
Stainless Steel GE00909X012
Type 67CF or 67CFR, Aluminum T80510T0012
Type 67CFS or 67CFSR, CF3M/CF8M
Stainless steel 40C1887X012
Type 67CFR with Smart Bleed™, Aluminum GE03477X012
2 Drain Valve
Manual Type 67CF or 67CFR
Brass 1K418918992
18-8 Stainless steel AH3946X0012
Type 67CFS or 67CFSR
316 Stainless steel AH3946X0032
18-8 Stainless steel AH3946X0012
Automatic (only used with large capacity dripwell)
Type 67CFS or 67CFSR
Nitrile (NBR) GG00554X012
Fluorocarbon (FKM) GG00554X022
3 Flange Screw
Type 67C, 67CR, 67CF, or 67CFR
Standard spring case and spring case
with 1/4 NPT vent (10 required) T13526T0012
For wire seal
Zinc-plated steel (9 required) T13526T0012
Steel (with hole) (1 required) 14B3987X012
Type 67CS, 67CSR, 67CFS or
67CFSR (10 required) T13526T0042
4* O-ring
Type 67C, 67CR, 67CS, or 67CSR
Nitrile (NBR) T14380T0012
Fluorocarbon (FKM) T14380T0022
Silicone (VMQ) T14380T0032
Type 67CF, 67CFR, 67CFS, or 67CFSR
Nitrile (NBR) T14057T0042
Fluorocarbon (FKM) T14057T0022
Silicone (VMQ) T14057T0032
5 Dripwell
Type 67CF or 67CFR, Aluminum
T21040T0012
Large Capacity, manual drain GE34605X012
Large Capacity, automatic drain GE34606X012
Type 67CFS or 67CFSR,
CF3M/CF8M Stainless Steel
20C1726X012
Large Capacity, manual drain GE34607X012
Large Capacity, automatic drain GE31792X012
6* Filter Element
(Types 67CF, 67CFR, 67CFS, 67CFSR)
Polyethylene (5 microns) GE32761X012
Glass ber (5 microns) 17A1457X012
Polyvinylidene uoride (PVDF) (40 microns) GE32762X012
316 Stainless steel (40 microns) 15A5967X022
7 Spring Case Assembly
Type 67C, 67CR, 67CF, or 67CFR, Aluminum/Steel
Drilled hole vent T14070T0012
Single hole vent T14070T0022
Type 67CS, 67CSR, 67CFS, or 67CFSR,
CF3M/CF8M Stainless steel 20C1727X012
9 Filter Retainer
Type 67CF or 67CFR, Zinc-plated T14052T0012
Type 67CFS or 67CFSR, 316 Stainless steel T14052T0022
10*
(1)
Valve Cartridge T80434T0012
11*
(1)
Valve Plug
Type 67C, 67CR, 67CF, or 67CFR
Brass stem, Nitrile (NBR) plug T14053T0012
Aluminum stem, Fluorocarbon (FKM) plug T14053T0022
Aluminum stem, Nitrile (NBR) plug T14053T0032
11*
(1)
Valve Plug (continued)
Type 67CS, 67CSR, 67CFS, or 67CFSR
Stainless steel stem, Nitrile (NBR) plug T14053T0042
Stainless steel stem, Fluorocarbon (FKM) plug T14053T0052
12*
(1)
Valve Spring
Type 67C, 67CR, 67CF, or 67CFR
302 Stainless steel T14105T0012
Inconel
®
(NACE) T14116T0012
Type 67CS, 67CSR, 67CFS, or 67CFSR,
Inconel
®
(NACE) T14116T0012
13*
(1)
Valve Retainer, Rynite
®
T14071T0012
14*
(1)
O-ring
Nitrile (NBR) T14063T0012
Fluorocarbon (FKM) T14063T0022
Silicone (VMQ) T14063T0032
15*
(1)
Soft Seat
Nitrile (NBR) T14055T0012
Fluorocarbon (FKM) T14055T0022
16* Diaphragm Assembly
Type 67C or 67CF (without relief)
Nitrile (NBR) T14119T0022
Fluorocarbon (FKM) T14119T0042
Type 67CR or 67CFR (with relief)
Nitrile (NBR) T14119T0012

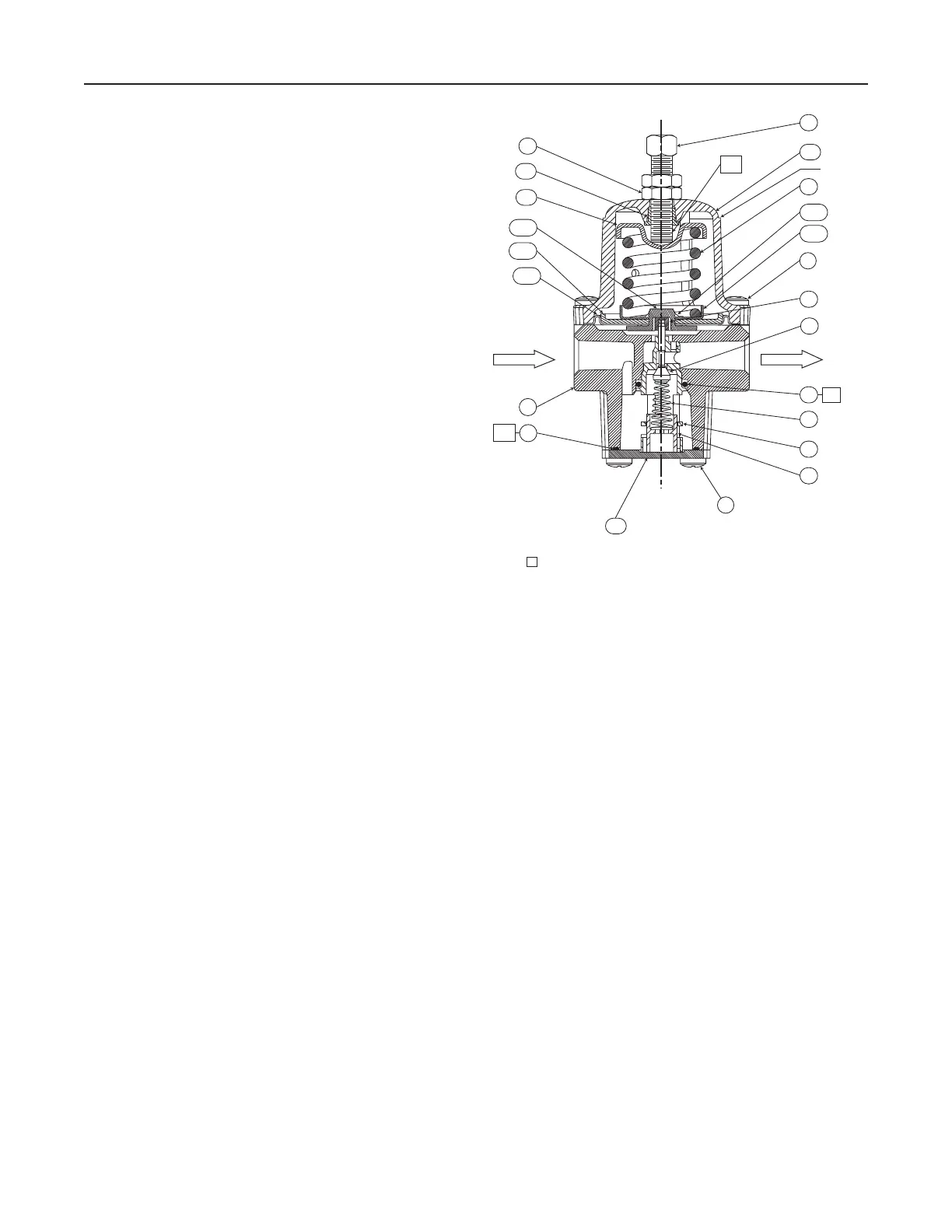

Figure 3. Type 67C or 67CR Assembly
4
1
16A
16C
16B
20
7B
19
39
3
13
10
12
14
11
15
3
16E
16D
17
18
7A
L
L
L
T40645
*Recommended Spare Part.
1. Valve cartridge assembly includes keys 10, 11, 12, 13, 14, and 15.
Inconel
®
is a marked own by Special Metals Corporation
Rynite
®
is a marked owned by E.I. du Pont de Nemours and Co.
NOTE: 1
