67C Series
9
16* Diaphragm Assembly (continued)
Fluorocarbon (FKM) T14119T0032
Silicone (VMQ) T14119T0052
Type 67CS or 67CFS (without relief)
Nitrile (NBR) T14119T0062
Fluorocarbon (FKM) T14119T0072
Type 67CSR or 67CFSR (with relief)
Nitrile (NBR) T14119T0082
Fluorocarbon (FKM) T14119T0092
Silicone (VMQ) T14119T0102
17 Spring
Type 67C, 67CR, 67CF, or 67CFR,
Plated steel
0 to 20 psig (0 to 1,4 bar), Green stripe GE07809T012
0 to 35 psig (0 to 2,4 bar), Silver T14059T0012
0 to 60 psig (0 to 4,1 bar), Blue stripe T14058T0012
0 to 125 psig (0 to 8,6 bar), Red stripe T14060T0012
Type 67CR or 67CFR (NACE), Inconel
®
(NACE)
0 to 35 psig (0 to 2,4 bar), Silver stripe T14113T0012
0 to 60 psig (0 to 4,1 bar), Blue T14114T0012
0 to 125 psig (0 to 8,6 bar), Red T14115T0012
Type 67CS, 67CSR, 67CFS or
17 Spring (continued)
67CFSR, Inconel
®
(NACE)
0 to 20 psig (0 to 1,3 bar), Green 10C1729X012
0 to 35 psig (0 to 2,4 bar), Silver stripe T14113T0012
0 to 60 psig (0 to 4,1 bar), Blue T14114T0012
0 to 125 psig (0 to 8,6 bar), Red T14115T0012
0 to 150 psig (0 to 10,3 bar), Black 10C1730X012
18 Adjusting Screw
Type 67C, 67CR, 67CF, or 67CFR,
Zinc-plated steel
For standard spring case
Square head T14061T0012
Handwheel T14102T0012
Wire seal (not shown) T14104T0012
For spring case with 1/4 NPT vent,
Zinc-plated steel
Square head for closing cap, T14101T0012
Handwheel T14103T0012
Wire seal (not shown) T14198T0012
Type 67CS, 67CSR, 67CFS, or 67CFSR
Square head with or without closing cap,
316 Stainless steel T14101T0022
Handwheel, Zinc-plated steel T14103T0012
33
45
39
18L
L
L
1
7
3
4
16
13
12
14
11
15
17
19
10
20

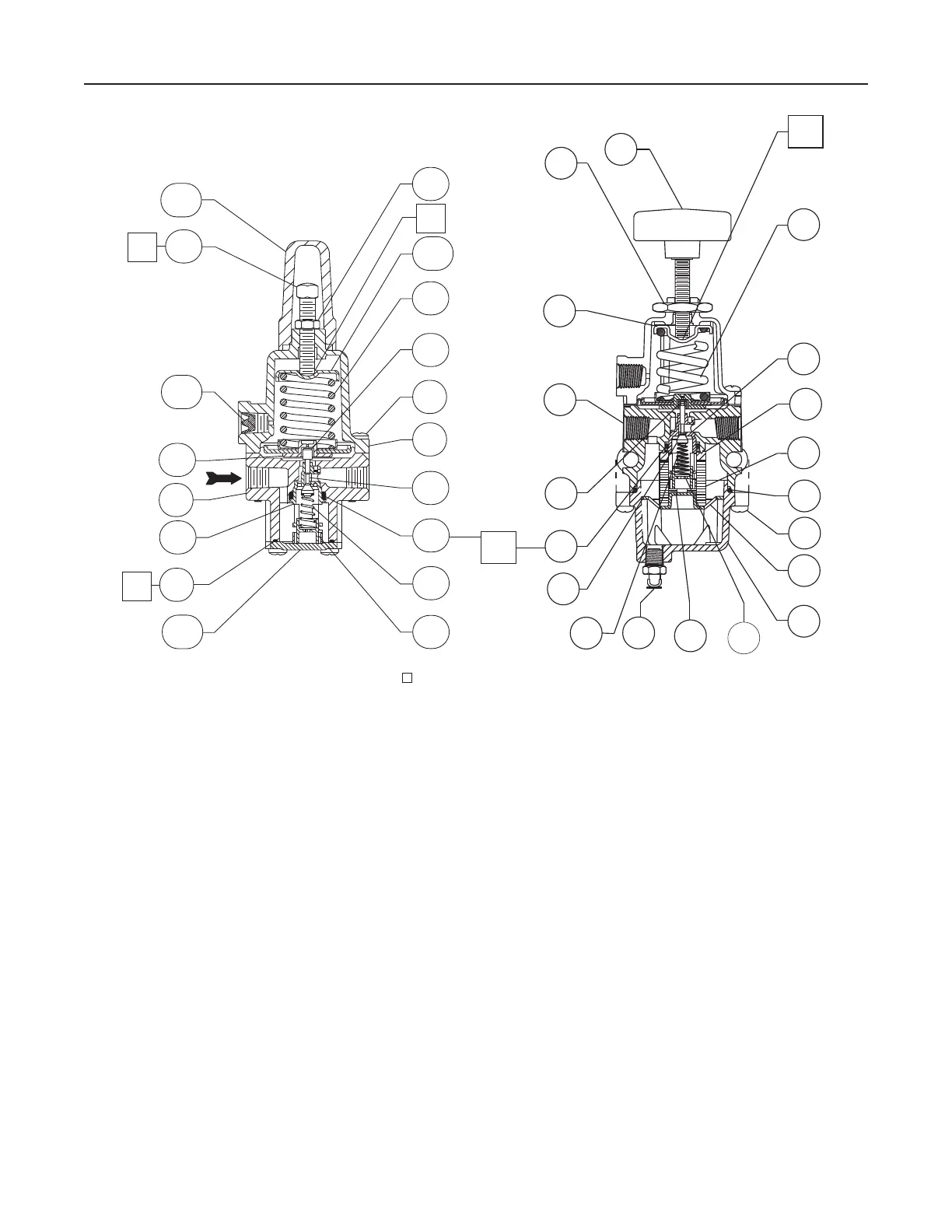

Figure 4. Type 67CS or 67CSR Assembly
GE03521
17
10
26
6
4
3
9
5
13
37
2
12
11
14
15
1
20
31
18
L
L
Figure 5. Type 67CF or 67CFR Assembly
T40580
*Recommended Spare Part.
