Fisher FIELDVUE DVC6200 Quick Start Guide

Quick Start Guide
D103556X012
DVC6200 Digital Valve Controllers
January 2017
29

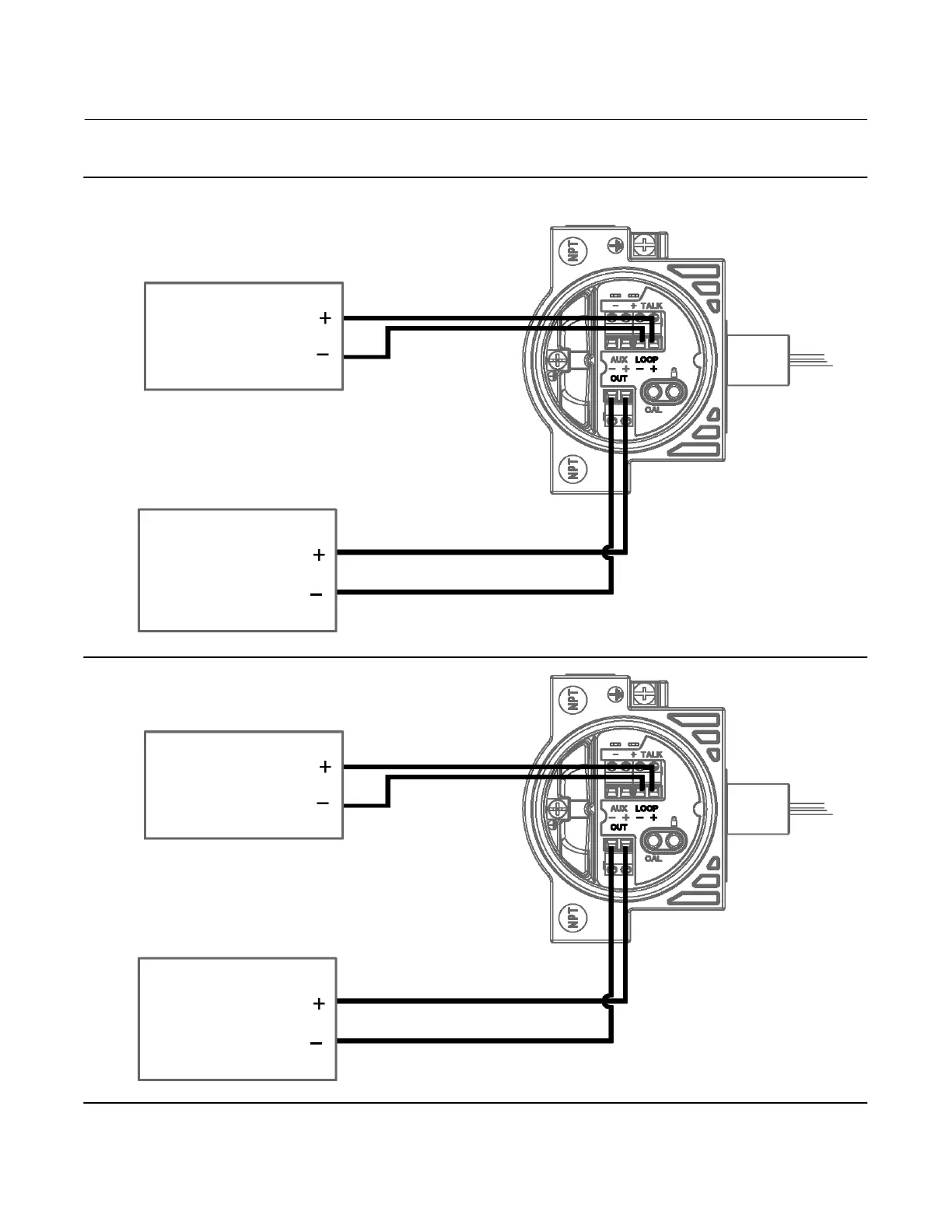

Figure 23. FIELDVUE DVC6200 with Position Transmitter or Discrete Switch, Field Wiring Schematic
AO
AO
AI
DI
4 - 20 mA
4 - 20 mA
8-30 VDC
POWERED
MAX 30V
POSITION TRANSMITTER
DISCRETE SWITCH
GE61668

Fisher FIELDVUE DVC6200 Specifications

General

Type	Digital Valve Controller
Operating Temperature Range	-40 to 85 °C (-40 to 185 °F)
Enclosure Rating	NEMA 4X, IP66
Input Signal	4-20 mA, HART
Communication Protocol	HART
Supply Pressure	1.4 to 7 bar (20 to 100 psi)
Diagnostics	Valve signature
Approvals	ATEX, IECEx, FM, CSA
Power Supply	Loop powered
