FLARING FC-500 - Installation Instruction; Installation of Air Regulator

4

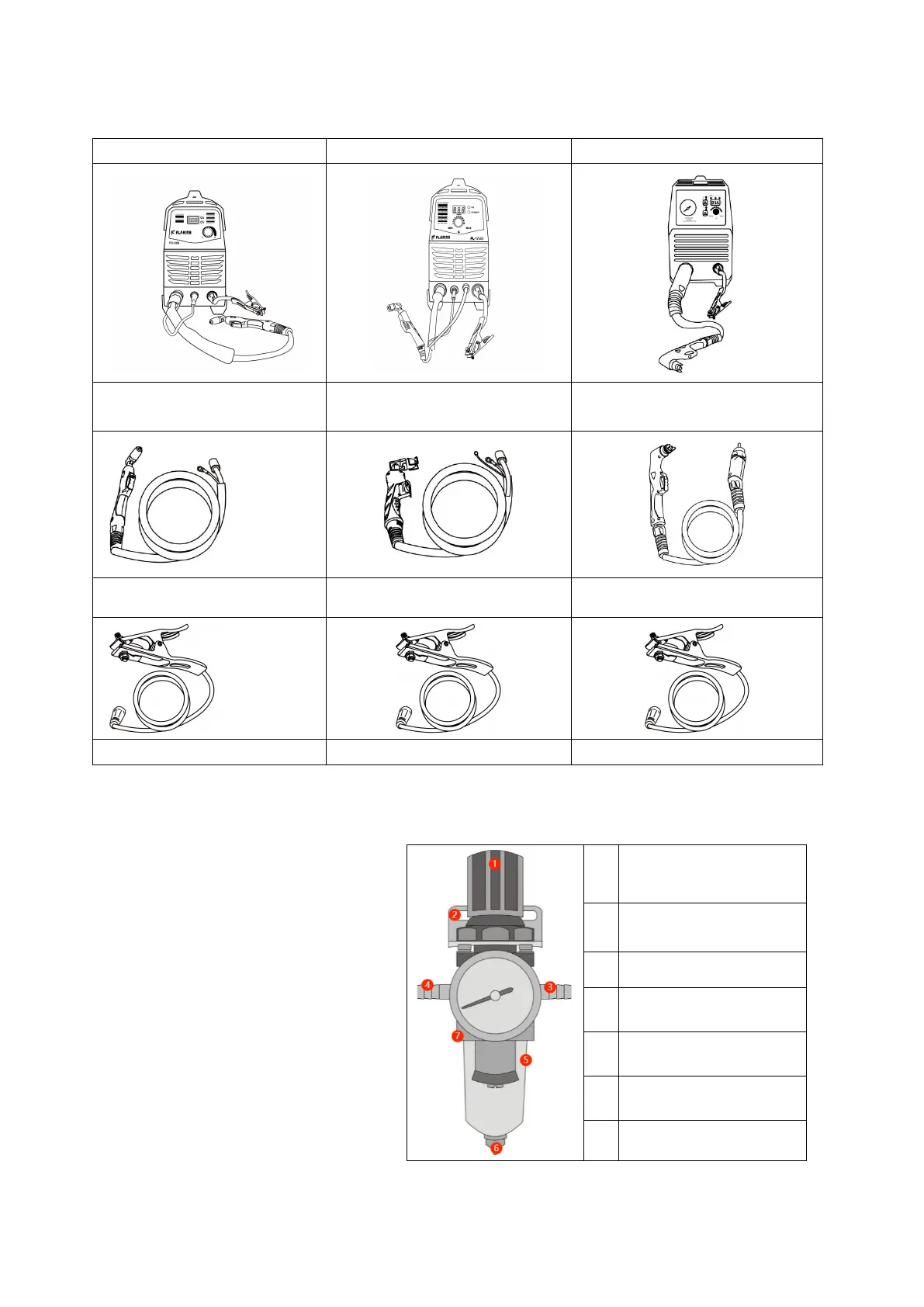

1.3 Accessories list
A B C
High Frequency Plasma Cutter*1 No Touch Pilot Arc High Frequency
Plasma Cutter*1
Non Touch Pilot Arc Low Frequency
Plasma Cutter*1
PT31 Plasma Cutter torch AG60 Plasma Cutter Torch*1 IPT60 Plasma Cutter torch * 1
Ground wire*1 Ground wire*1 Ground wire*1
2 Installation instruction
2.1 Installation of Air Regulator
(1) Wrap the copper gas nozzle around the
sealing tape and tighten it on the IN and
OUT ends;
(2) Wrap the meter head with the sealing tape
and tighten it on the meter head installation
position;
(3) Fix the connecting frame to the installation
position of the pressure reducing valve
behind the welder as shown in the figure;
(4) Unscrew the rubber nut and fix the pressure
reducing valve on the connecting frame as
shown in the figure;
(5) Turn on the air valve switch, lift up the
pressure regulating knob, adjust the air
pressure to the specified air pressure (turn to "+" to increase the air pressure, and to "-" to decrease the air
1
Pressure regulating knob
2
Fixed connection frame
3
Air outlet
4
Air inlet
5
Filter cylinder
6
Drain out
7
Pressure gauge
(what you see is A)
