07
Filament Outlet
Filament Guide Tube
Please pay attention to
loading direction!
4. After filament goes through guide tube, press
spring presser on the left side of extruder, and
insert filament vertically into filament intake to
the bottom.

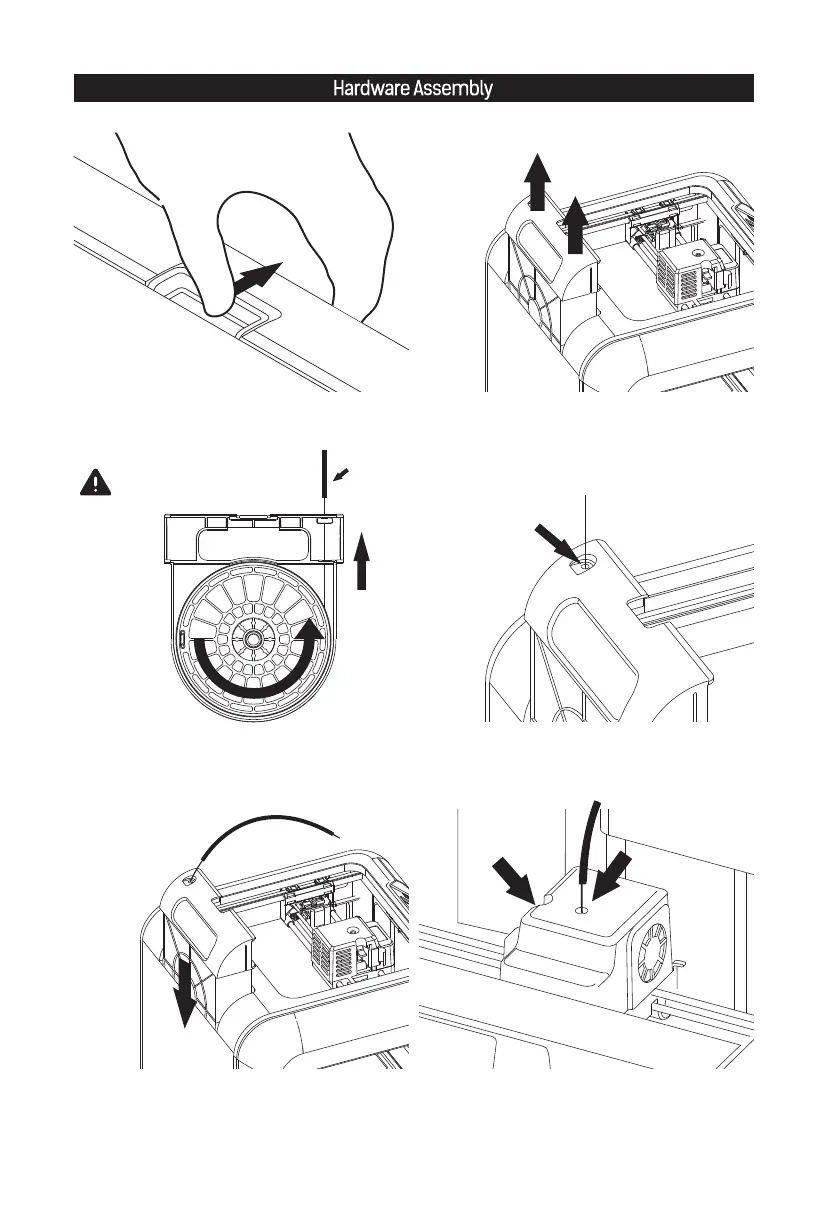

1. Filament cartridge is at the back of printer. Before taking out filament cartridge, please hold the
clip on the top and take filament cartridge out.
2. Take out filament, tear off vacuum packing and put it into filament cartridge. Put filament through
filament outlet as the picture shown on the top left.
3. Hold clip on the top of filament cartridge, put
filament catridge back to the printer, and put
filament through filament guide tube.
Attention: filament unwinding direction should keep pace with the picture, or causing cannot
print properly.
Press here Filament intake
