Flavel Castelle - Page 13

2.3.2 Remove the firebox / burner assembly from the packaging. Remove the
fuel-bed set from the combustion chamber and store in a safe location.
Remove the firebox mounting plate from the rear face of the firebox
assembly by unscrewing the 4 off M5 retaining screws as shown below
in figure 6.

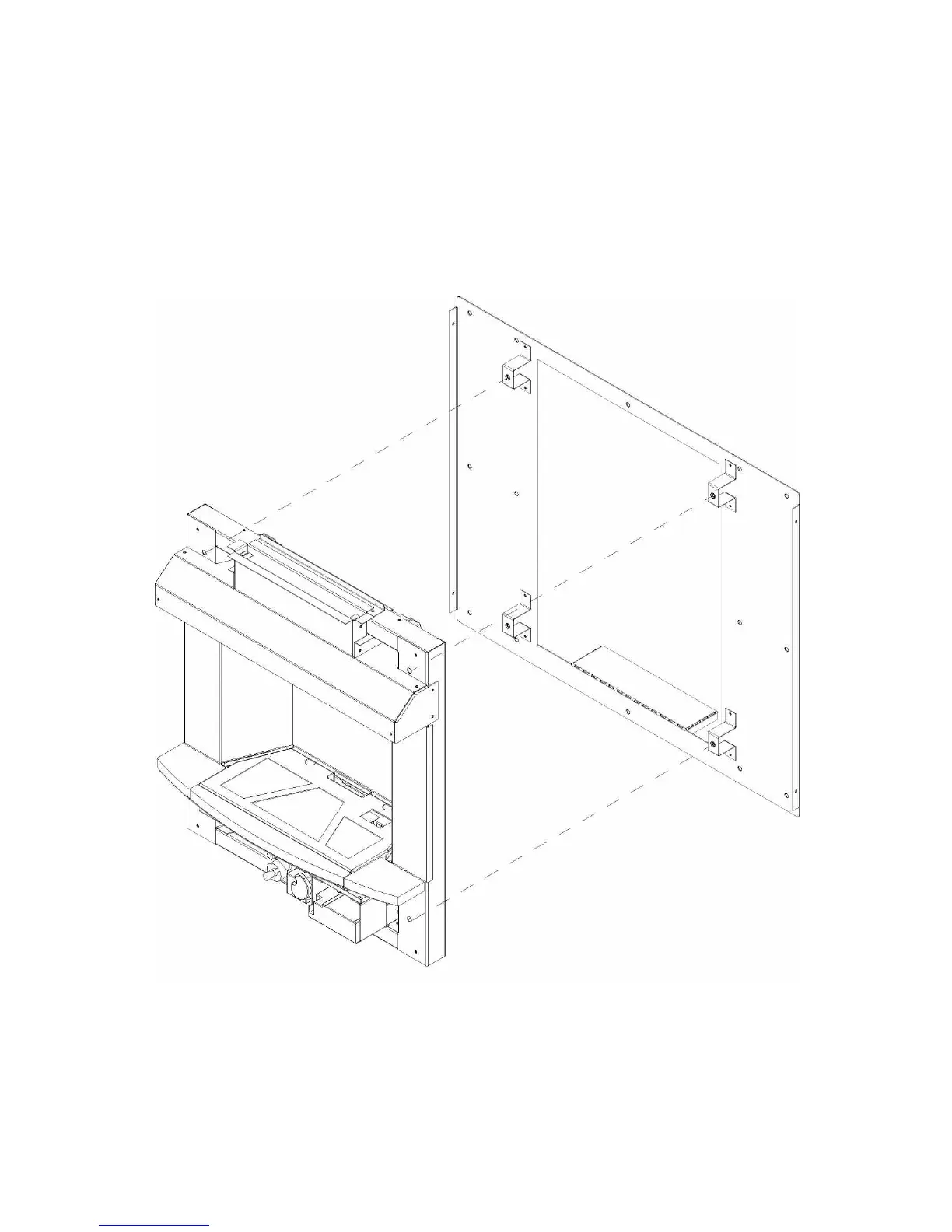

Fig. 6
13
