Flavel Castelle - Removal & Re-Fitting the Glass Fascia

5.5 REMOVAL & RE-FITTING THE GLASS FASCIA

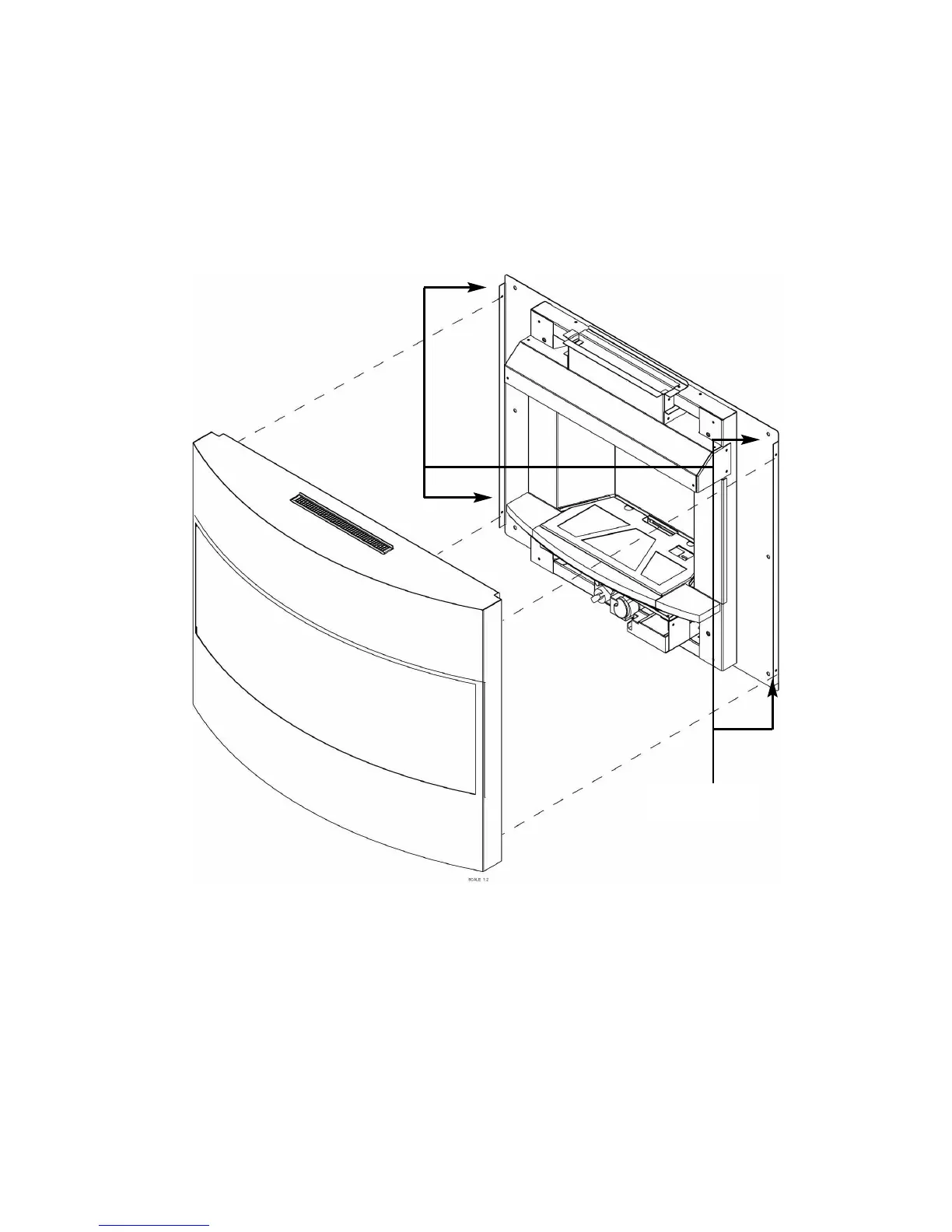

5.5.1 Fit the fascia as shown below in figure 10, and secure with 2 off screws
per side. Ensure the top edge of the fascia has hooked over the top
edge of the firebox.
Fig. 10
5.5.2 Fit the draught diverter cover as shown in section 5.6
41
2 off securing
screws per side
