Flavel Castelle - Fitting the Fascia

3.2 FITTING THE FASCIA

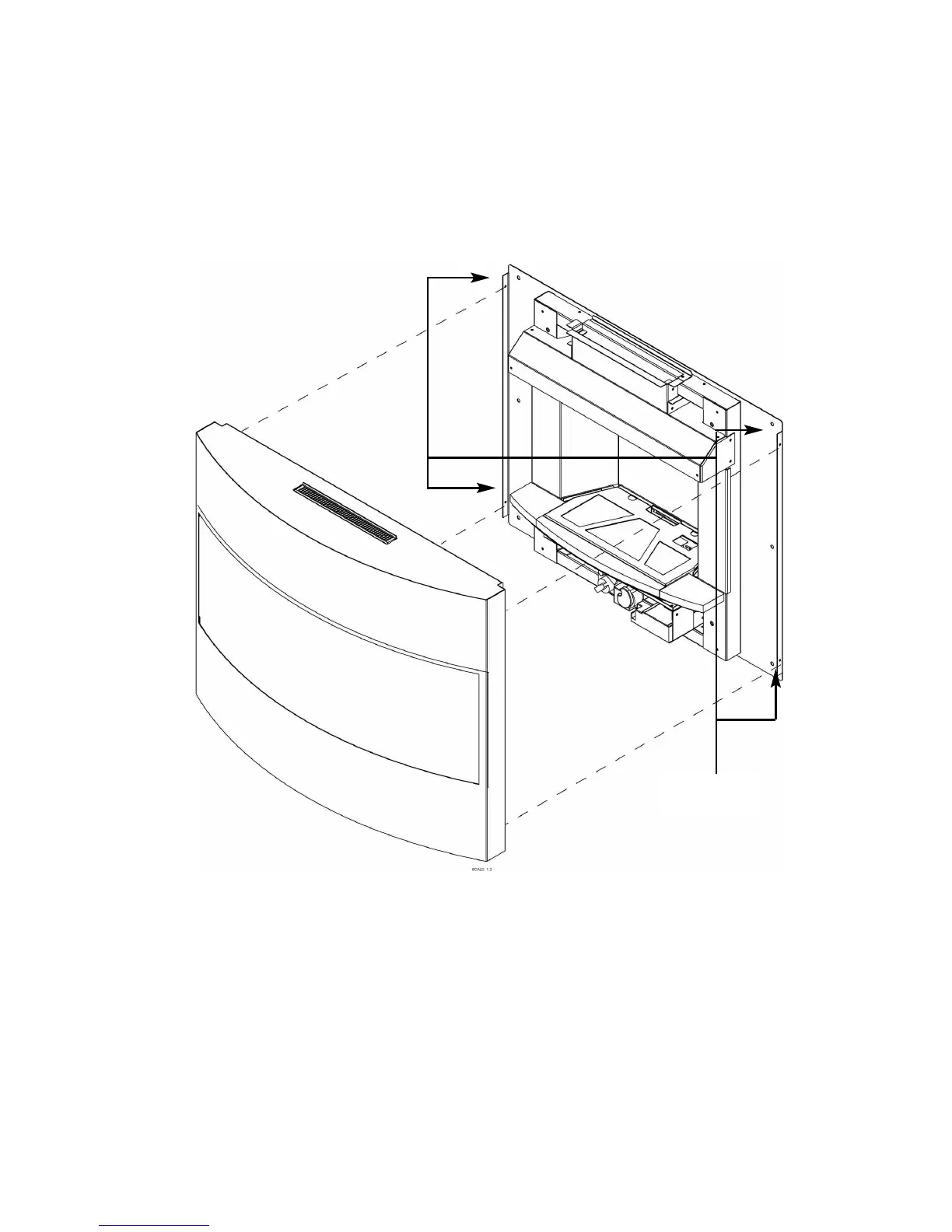

3.2.1 Fit the fascia as shown below in figure 20, and secure with 2 off screws
per side. Ensure the top edge of the fascia has hooked over the top
edge of the firebox.
Fig. 20
3.2.2 Fit the draught diverter cover (as supplied in the loose items pack) as
shown in section 3.5
23
2 off securing
screws per side
