5.3 ASSEMBLING THE FUEL-BED - Coal Fuelbed Model

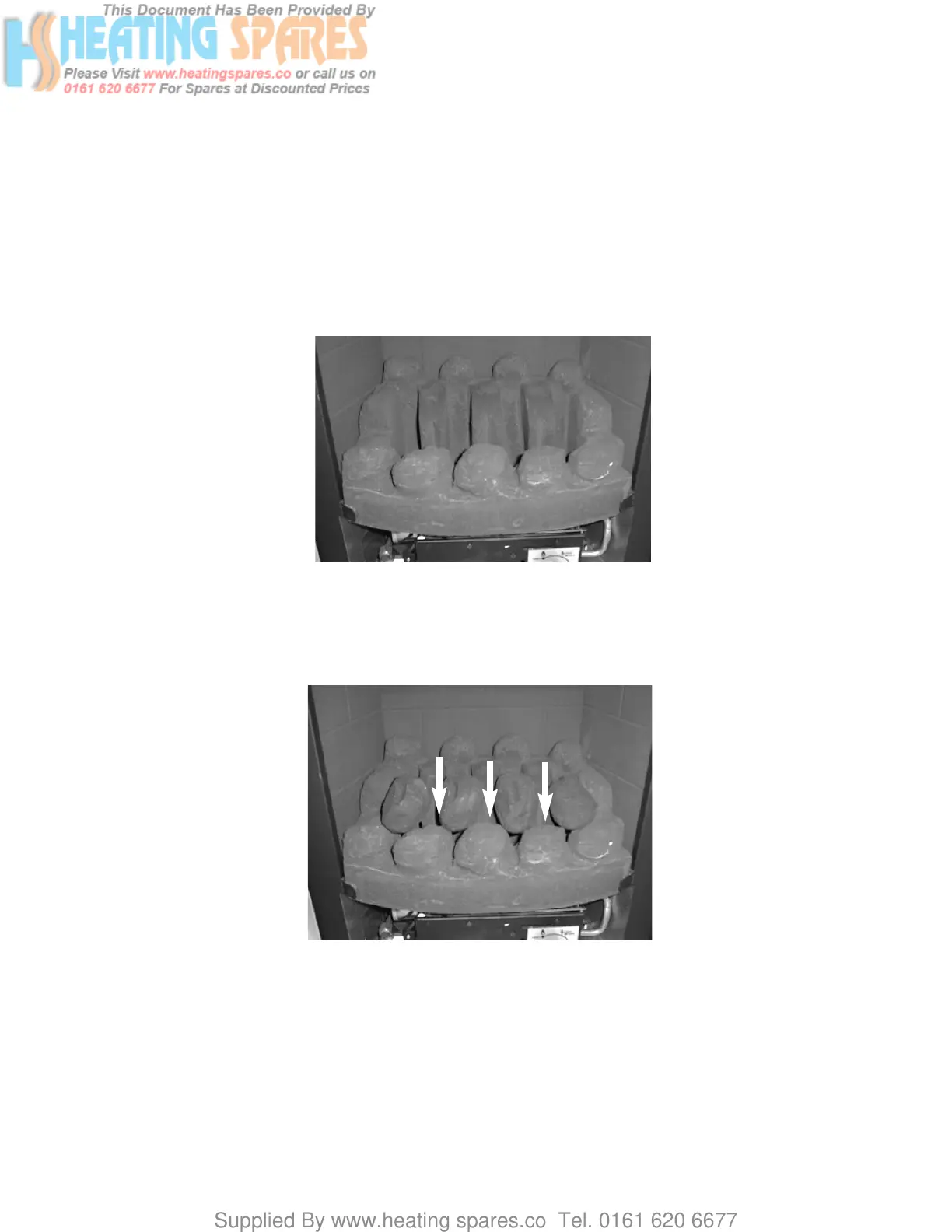

a) Place the fuelbed base centrally on to the fuelbed support and push
fully backwards to the rear face of the fibre boards Make sure that the
fuelbed base is located centrally in the fire box. See Fig. 26 below.
Fig. 26
b) Position the front row of four loose coals along behind the first row of
coals, ensuring that the flame paths as indicated are not interupted.
See Fig. 27 below
Fig. 27
