c) Position the piece of driftwood with the letter “B” stamped onto the
bottom face of it in the position at the centre of the fuelbed
matrix. Ensure the positioning grooves as shown are on the top face of
the piece of driftwood. See Fig. 34 below.

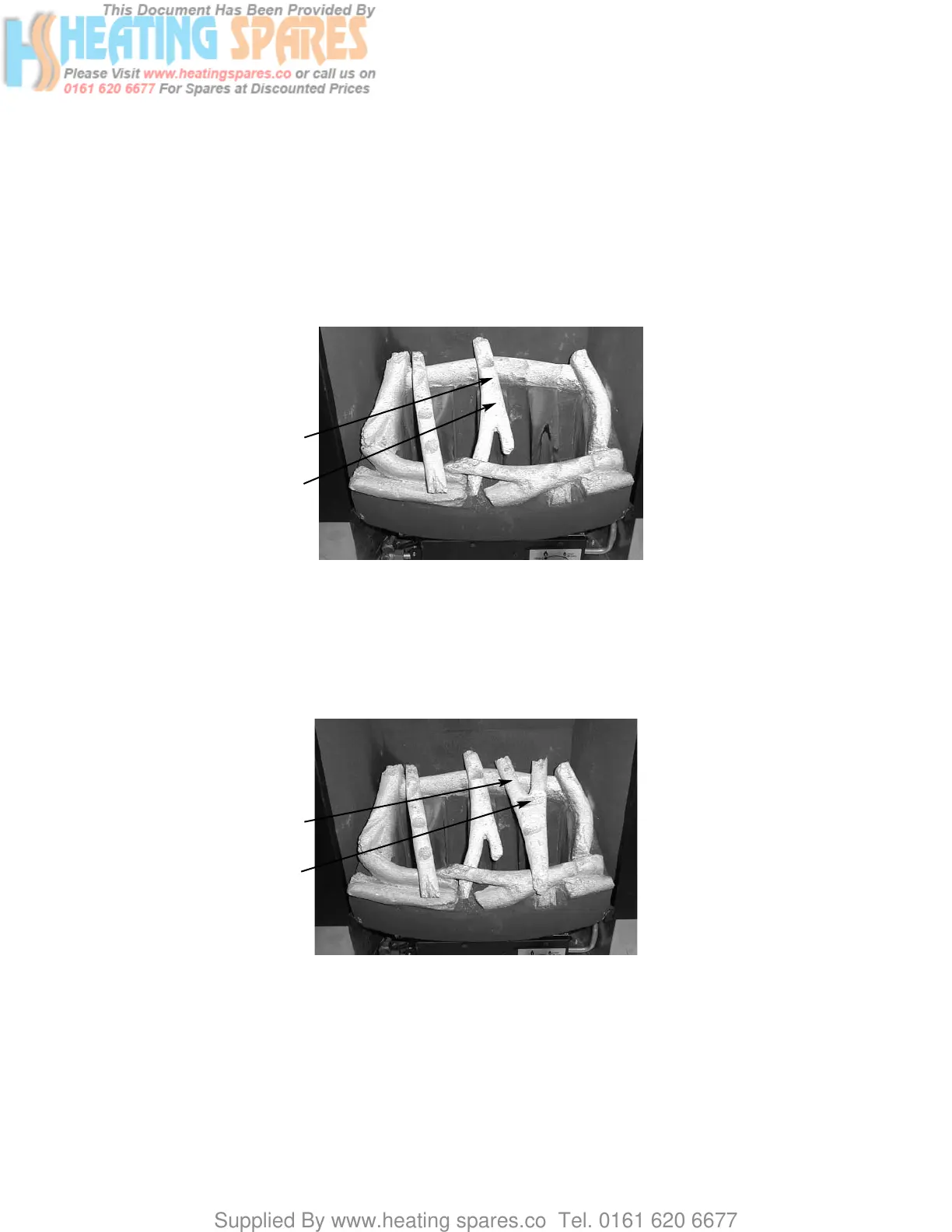

Fig. 34
d) Position the piece of driftwood with the letter “C” stamped onto the
bottom face of it in the position at the right-hand side of the fuelbed
matrix. Ensure the positioning grooves as shown are on the top face of
the piece of driftwood. See Fig. 35 below.
Fig. 35
Driftwood Piece
“B”
Grooves in top
face as detailed in
sectrion c)
Driftwood Piece
“C”
Grooves in top
face as detailed in
sectrion d)
