MODEL 2750 ECONOMINDER
1″ Commercial Demand Regeneration Control
Timer Settings
Typical Programming Procedure
Calculate the gallon capacity of the system, subtract the
necessary reserve requirement and set the appropriate
gallons available opposite the small white dot on the pro-
gram wheel gear. Note, drawing shows 10,000 gallons
setting. The capacity (gallons) arrow denotes remaining
gallons exclusive of calculated reserve.
How To Set The Time Of Day:
Press and hold the red button in to disengage the drive
gear.
Turn the large gear until the actual time of day is opposite
the time of day pointer.
Release the red button to again engage the drive gear.
How To Manually Regenerate Your Water Conditioner
At Any Time.
Turn the manual regeneration knob clockwise.
This slight movement of the manual regeneration knob
engages the program wheel and starts the regeneration
program.
The black center knob will make one revolution in the fol-
lowing approximately three hours and stop in the position
shown in the drawing.
Even though it takes three hours for this center knob to
complete one revolution, the regeneration cycle of your
unit might be set for only one half of this time.
In any event, conditioned water may be drawn after rinse
water stops flowing from the water conditioner drain line.
Immediate Regeneration Timers:
These timers do not have a 24 hour gear. Setting the gal-
lons on the program wheel and manual regeneration pro-
cedure are the same as previous instructions.
* Immediate regeneration times do not have 24 hour gear. No time of day can be set.

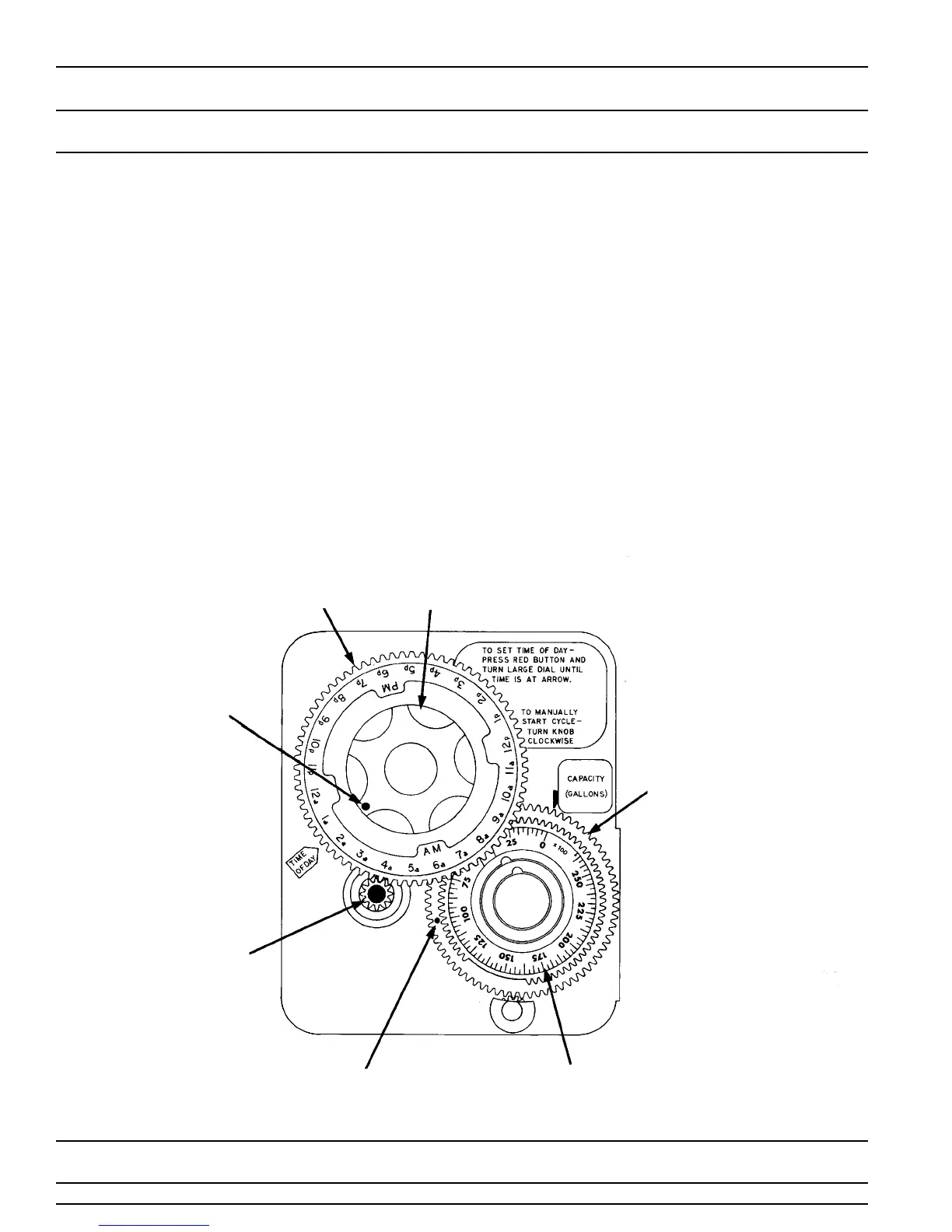

MANUAL
REGENERATION
KNOB
PROGRAM
WHEEL
GALLONS LABEL
WHITE DOT
RED TIME
SET BUTTON
SERVICE
POSITION
INDICATOR
* 24 HOUR
GEAR
