Fleck 2750 User Manual

Printed in U.S.A.
Page 5

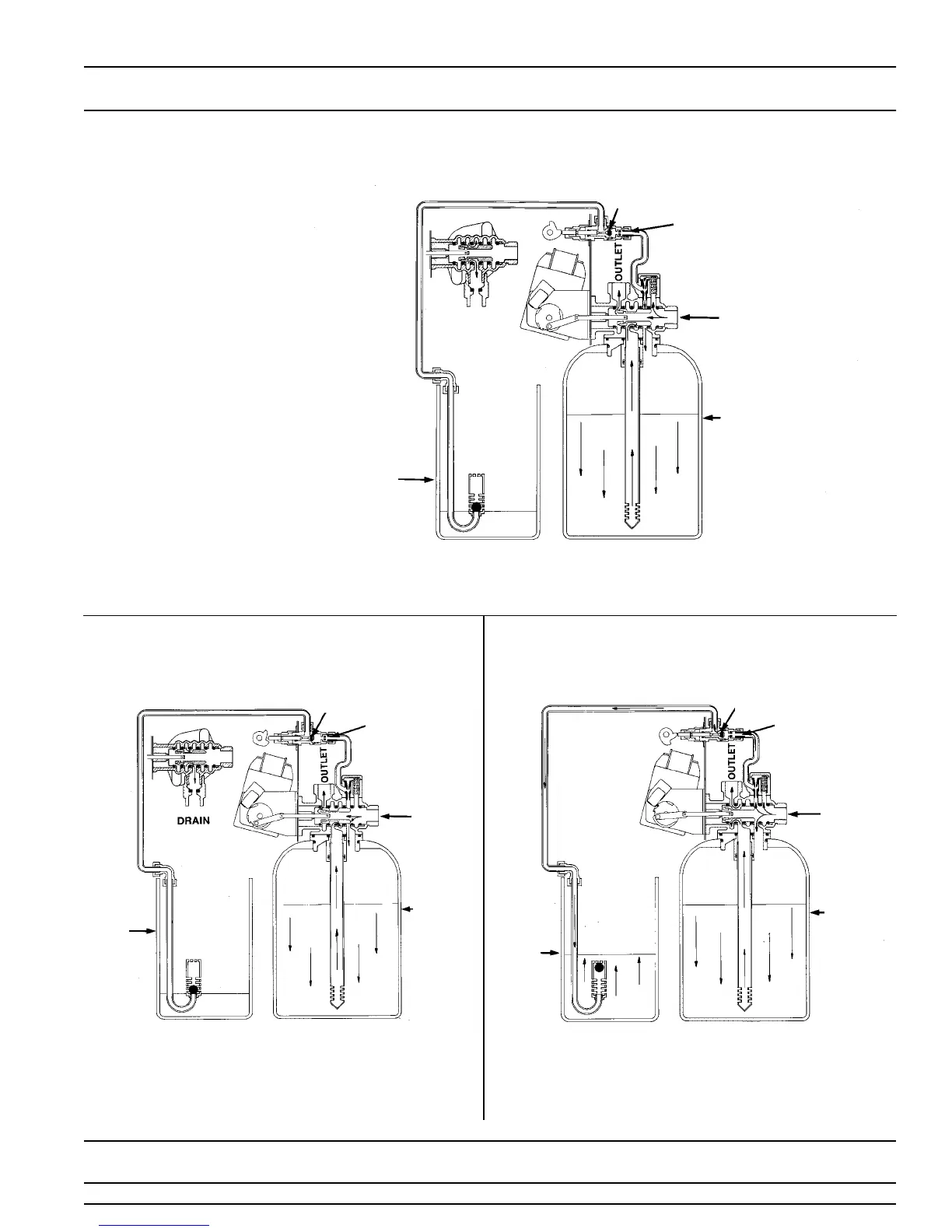

MODEL 2750 DOWNFLOW
Water Conditioners Flow Diagrams (Cont’d.)
5 RAPID RINSE 6 BRINE TANK FILL POSITION
Hard water enters unit at valve inlet  flows up into injector housing and down thru nozzle
and orifice
 around the piston  down thru mineral  enters center tube thru bottom
distributor
 flows up thru center tube  around piston and out thru drain line.
Hard water flows directly from inlet down thru mineral into center
tube bottom distributor and up thru center tube
 around piston
and out thru the drain line.
Hard water enters unit at valve inlet
 flows up thru the injector
housing
 thru the brine valve to fill the brine tank.
4 SLOW RINSE POSITION
BRINE VALVE
FLOW CONTROL
INLET
MINERAL TANK
BRINE TANK
BRINE TANK
FLOW
CONTROL
INLET
MINERAL
TANK
BRINE
TANK
BRINE TANK
FLOW
CONTROL
INLET
MINERAL
TANK
BRINE
TANK
