PAGE 14 QualityWaterForLess.com Help: 888-426-5001

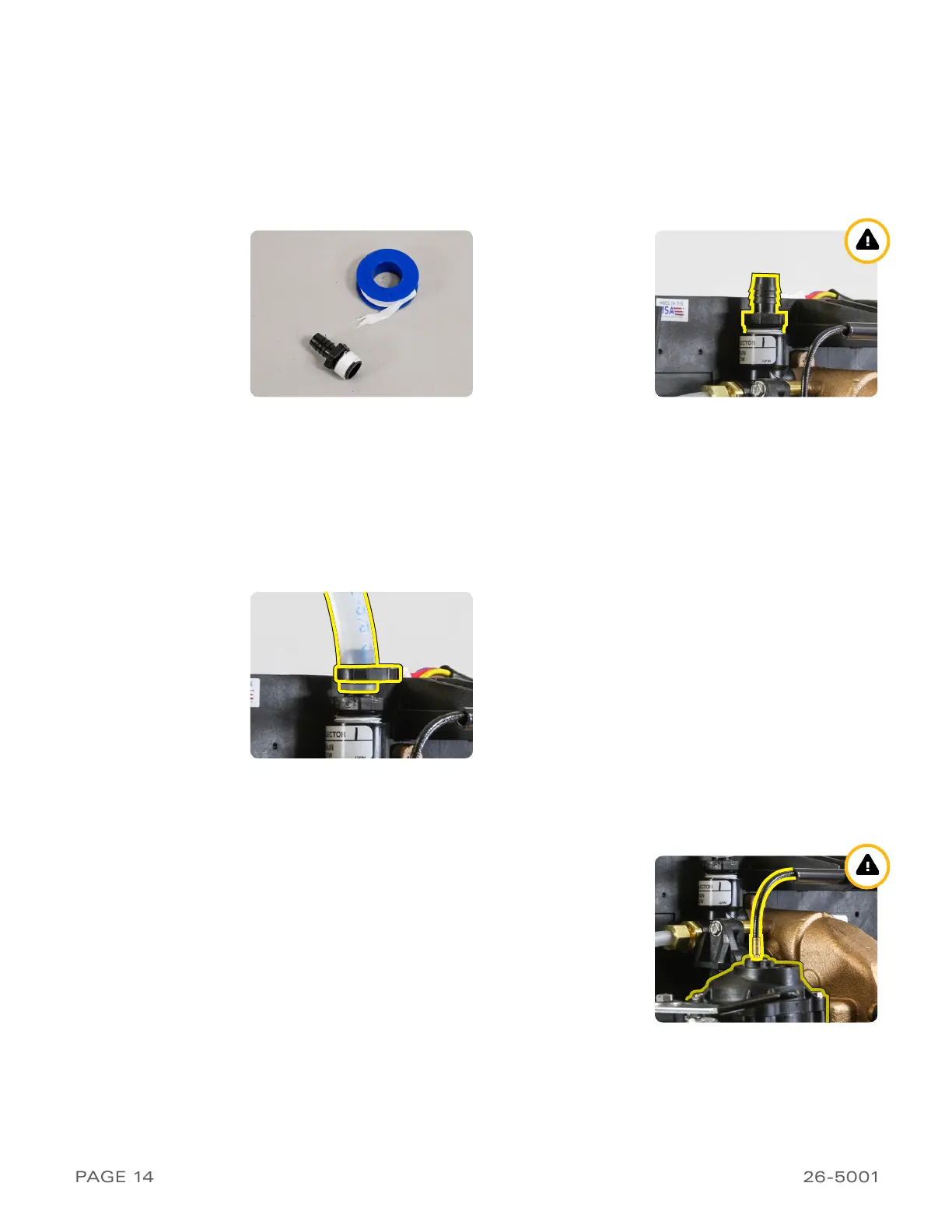

fIGure 14-a fIGure 14-b
fIGure 14-d
fIGure 14-c
6 ›draIn connectIon
1) Locate the drain barb fitting and use Teflon tape
to wrap the threading as shown in Figure 14-A.
Be sure to wrap the tape clockwise with the
threading towards you
2) Install the drain barb fitting to the Fleck 9000
Meter Valve by screwing the fitting using a
wrench snugly into the threads as shown in
Figure 14-B.
i
Please use caution not to over
tighten this fitting
7 ›Meter connectIon
1) Locate the meter cable on the rear of the control valve just in front of
the drain port and plug it into the meter as seen in Figure 14-D (Your
meter cable and meter model may vary. The model in Figure 14-D is
the mechanical version).
i
If you fail to connect the meter cable
to the meter on your meter demand softener, your system will
not regenerate on time
3) Next, connect your ½” I.D. drain line to the drain
barb. Be sure to use rigid wall ½” I.D. tubing that
will not flatten. Wrap electrical tape over the drain
tubing to prevent a tubing split, and clamp the
tubing securely into place with the included clamp
as shown in Figure 14-C
4) Connect the other end of this drain line tubing
securely to a standpipe or drain in accordance with
all local plumbing codes.
Be sure that the drain
line is securely in place before the use of the
water softener system. When the system
regenerates, there will be increased flow via
this tubing which may cause the tubing to
become loose
