MODEL 9000 ECONOMINDER


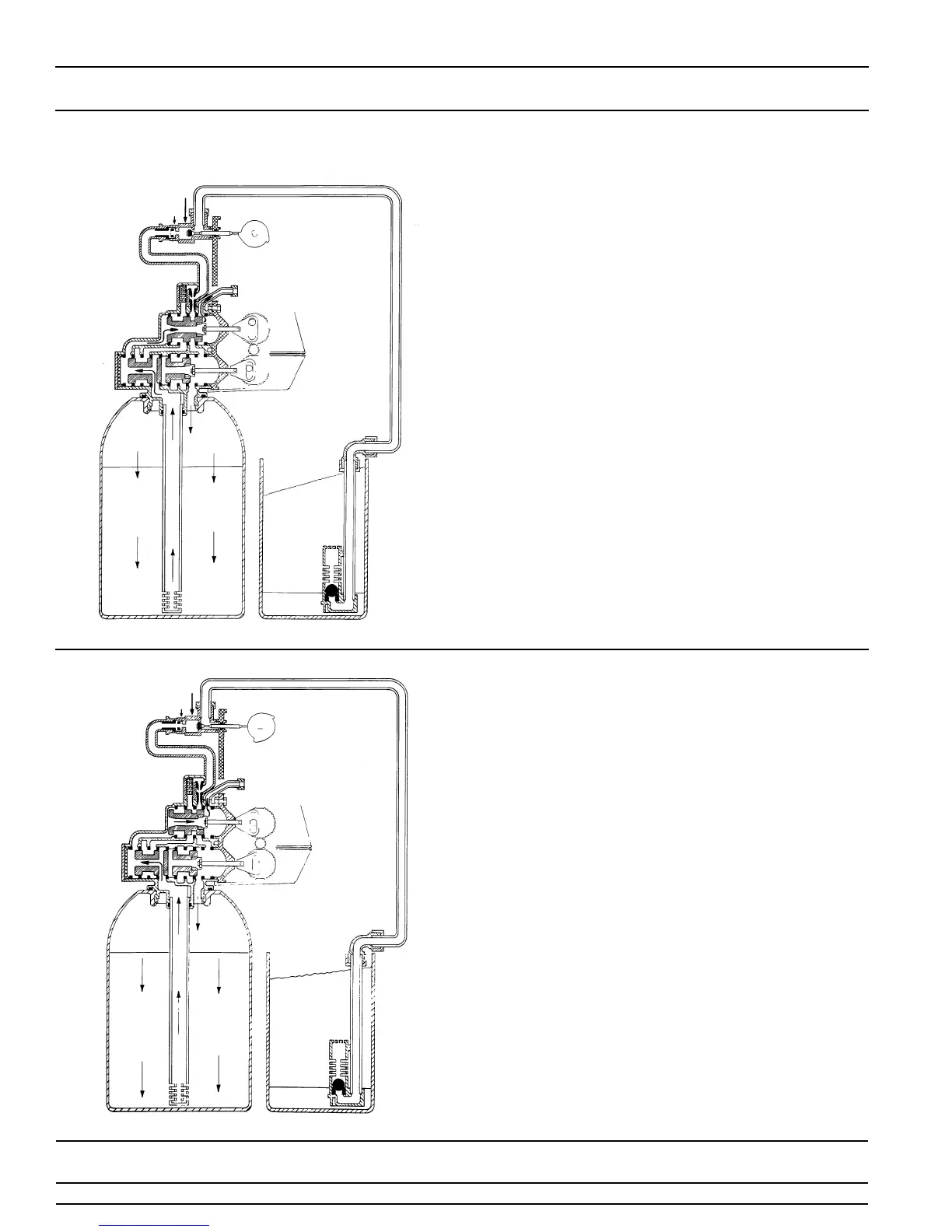

5 - SLOW RINSE
Conditioned water from the second mineral tank flows
around the lower piston, around the upper piston, into the
injector housing, down through the nozzle and throat,
around the upper piston, down through the mineral, into
the center tube through the bottom distributor, up the
center tube, through the center of the lower piston,
through the center of the upper piston, and out through
the drain line.
6 - RAPID RINSE
Conditioned water from the second mineral tank flows
around the lower piston, around the upper piston, and
down through the mineral in the first tank. Rinse water
from the mineral bed enters the center tube through the
bottom distributor, flows up the center tube, through the
center of the lower piston, through the center of the upper
piston, and out through the drain line.
BRINE VALVE
FLOW CONTROL
DRAIN
MINERAL TANK #1 BRINE TANK
BRINE VALVE
FLOW CONTROL
DRAIN
MINERAL TANK #1 BRINE TANK

Fleck 9000 Specifications

General

Display	LCD
Valve Type	Piston
Valve Size	1 inch
Regeneration	Upflow or Downflow
Programming	Microprocessor
