MODEL 9000 ECONOMINDER


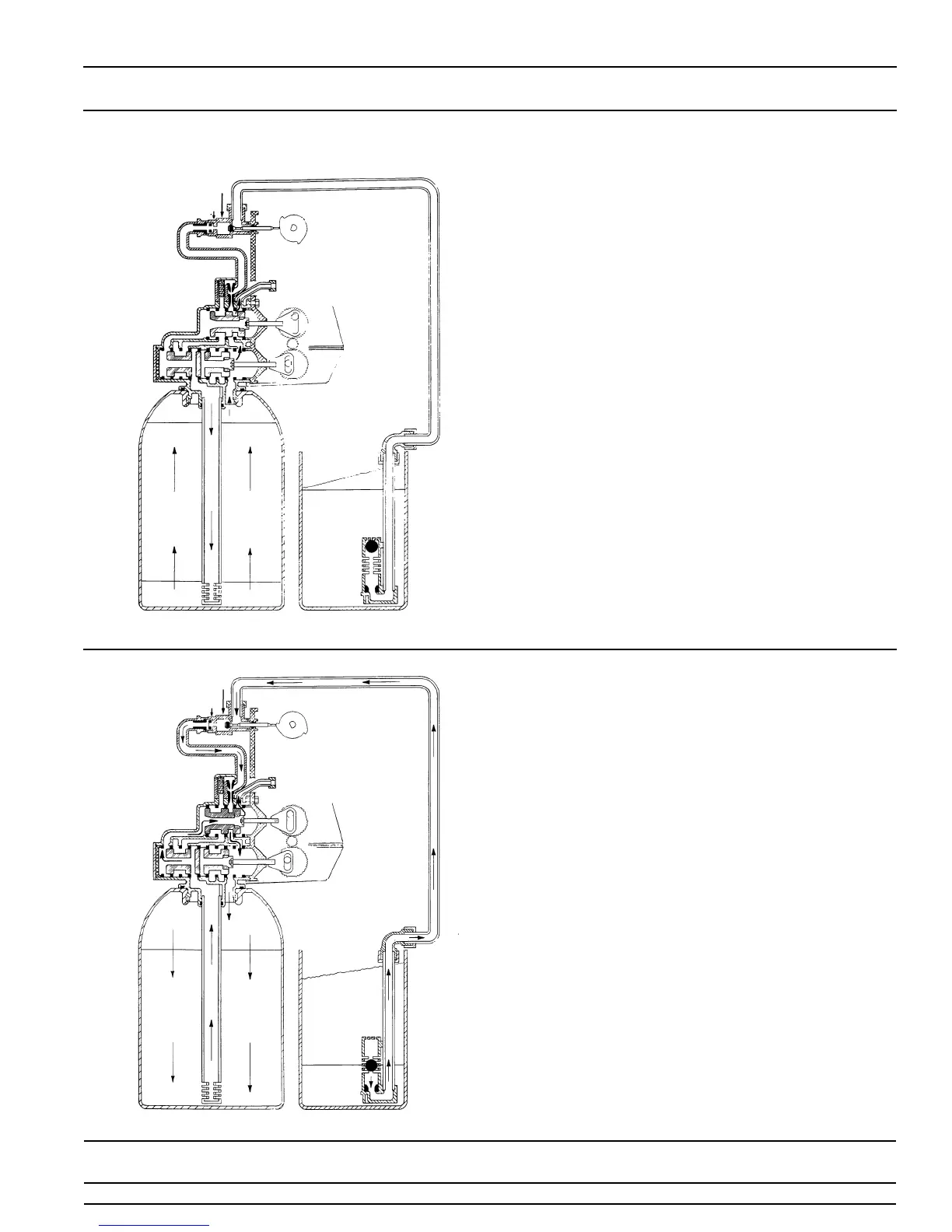

3 - BACKWASH
Conditioned water from the second mineral tank flows
around the lower piston, around the upper piston,
through the center of the lower piston, down the center
tube, up through the mineral, around the upper piston,
and out the drain line.
4 - BRINE DRAW
Conditioned water from the second mineral tank flows
around the lower piston, around the upper piston, into
the injector housing, and down through the nozzle and
throat to draw brine from the brine tank. Brine flows
around the upper piston, down through the mineral, into
the center tube through the bottom distributor, up the
center tube, through the center of the lower piston,
through the center of the upper piston, and out through
the drain line.
BRINE VALVE
FLOW CONTROL
DRAIN
MINERAL TANK #1 BRINE TANK
BRINE VALVE
FLOW CONTROL
DRAIN
MINERAL TANK #1 BRINE TANK

Fleck 9000 Specifications

General

Display	LCD
Valve Type	Piston
Valve Size	1 inch
Regeneration	Upflow or Downflow
Programming	Microprocessor
