Fleck 9000 - Wiring and Control Information; 9000 Wiring Diagram; Control Information Table

Printed in U.S.A.
Page 24
MODEL 9000 ECONOMINDER

2 Tank Wiring & Control Information
1
B.L.F.C. (Brine Line Flow Control). Refill Rate for Filling Brine Tank.
2
D.L.F.C. (Drain Line Flow Control). Backwash and Rapid Rinse Flow Rates.
3
8-54-6-6 Refer to -8 min. Backwash; 54 min. Brine and Slow Rinse; 6 min. Rapid Rinse; 6 min. Brine Tank Refill.
Note: Due to varying water conditions, tank sizes and water pressures, the above settings should be used only as a
guideline.
CONTROL INFORMATION
Tank Size Dia. Injector
Slow Rinse
Rate (gpm)
B.L.F.C.
1
D.L.F.C.
2
Timer Motor
Timer Setting
3
6″
7″
#0 Red
#0 Red
.26 gpm
.26 gpm
.5 gpm
.5 gpm
1.2 gpm
1.2 gpm
1/15 rpm
1/15 rpm
8-54-6-6
8-54-6-6
8″
9″
10″
#1 White
#1 White
#1 White
.33 gpm
.33 gpm
.33 gpm
.5 gpm
.5 gpm
.5 gpm
1.5 gpm
2.0 gpm
2.4 gpm
1/15 rpm
1/15 rpm
1/15 rpm
8-54-6-6
8-54-6-6
8-54-6-6
12″
13″
#2 Blue
#2 Blue
.64 gpm
.64 gpm
1.0 gpm
1.0 gpm
3.5 gpm
4.0 gpm
1/15 rpm
1/30 rpm
8-54-6-6
8-60-6-6
14″
16″
#3 Yellow
#3 Yellow
.89 gpm
.89 gpm
1.0 gpm
1.0 gpm
5.0 gpm
7.0 gpm
1/30 rpm
1/30 rpm
8-60-6-6
8-70-6-6

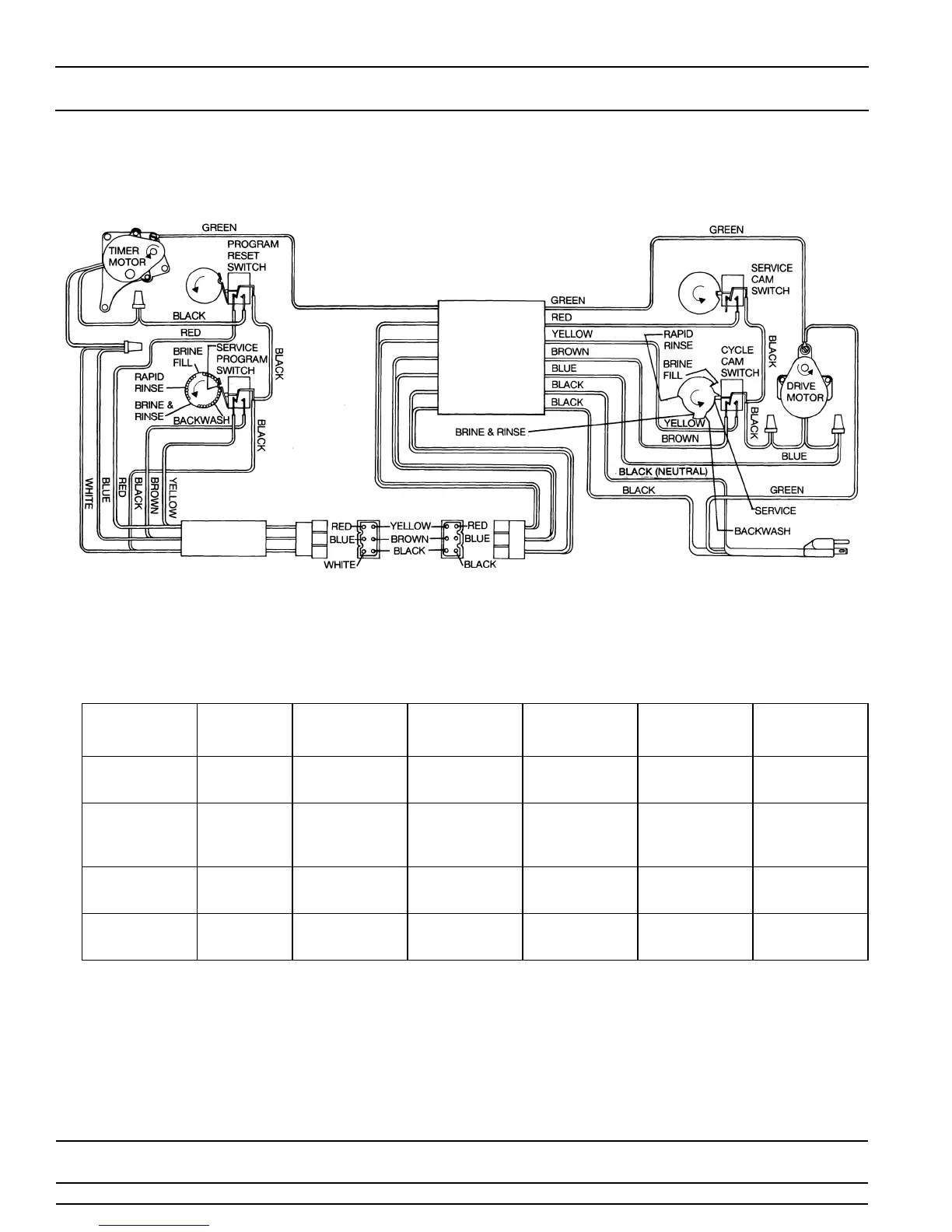

9000 WIRING DIAGRAM
