a. Type 1 Headlamps: The projected beam
should be centered vertically and horizon-
tally on the vertical surface as marked in
step 6 and 7.
b. Type 2 Headlamps: The top edge of the
projected beam is to even with a horizontal
line parallel to a line formed by the two
head lamp lament centers and to the right
of the vertical center line of each head
lamp.

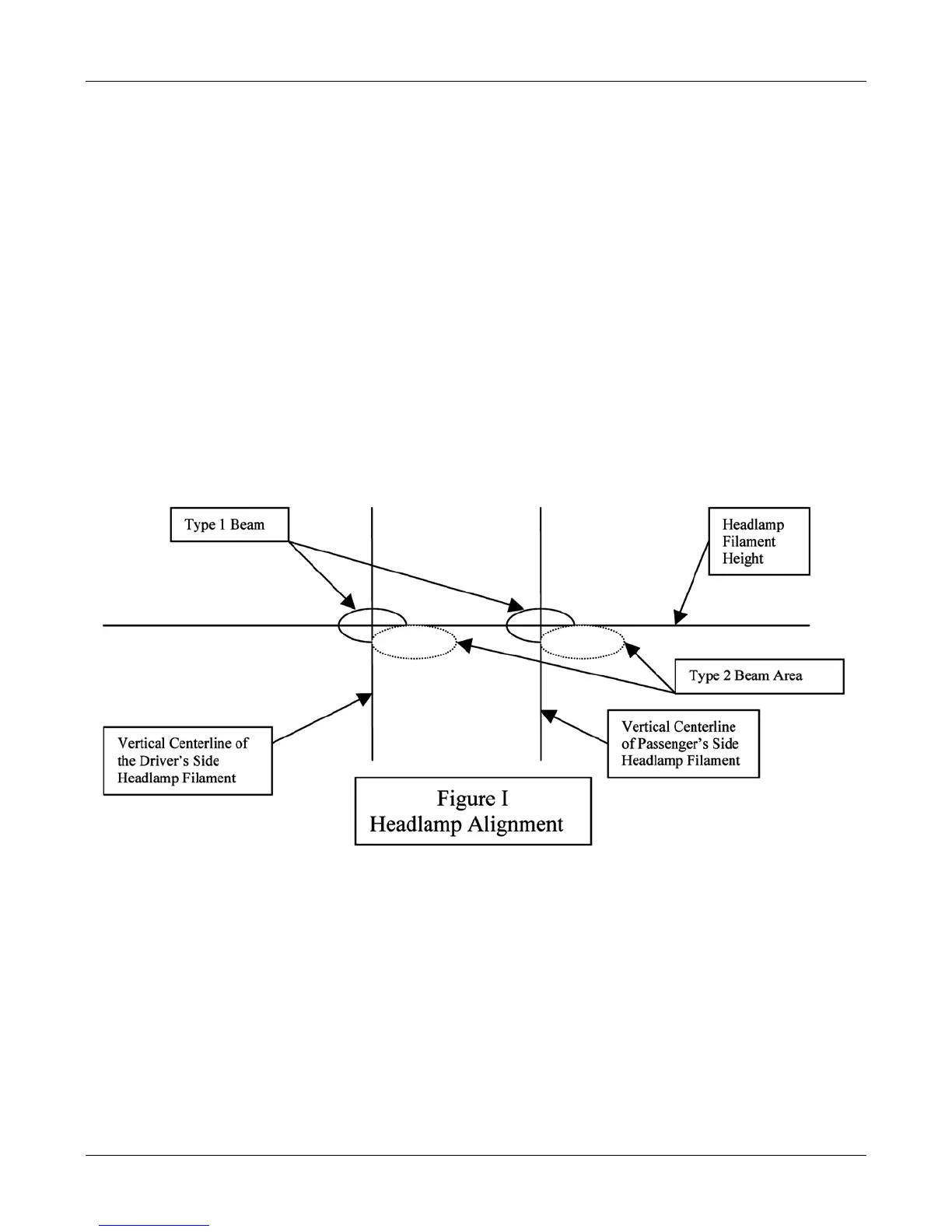

9. If the headlamps do not meet the align-
ment criteria adjust the “Vertical “and/or
“Horizontal” positioning as shown on the
attached gure, rotate the knobs and/or
screws on the head lamp. When turning the
knobs and/or screws watch the direction in
which the projected beam moves to help
understand which direction on the beam
moves in relation to turning each.
10. Remember, this procedure is only a
guideline and is not a substitute for having
headlamps professionally aligned.
