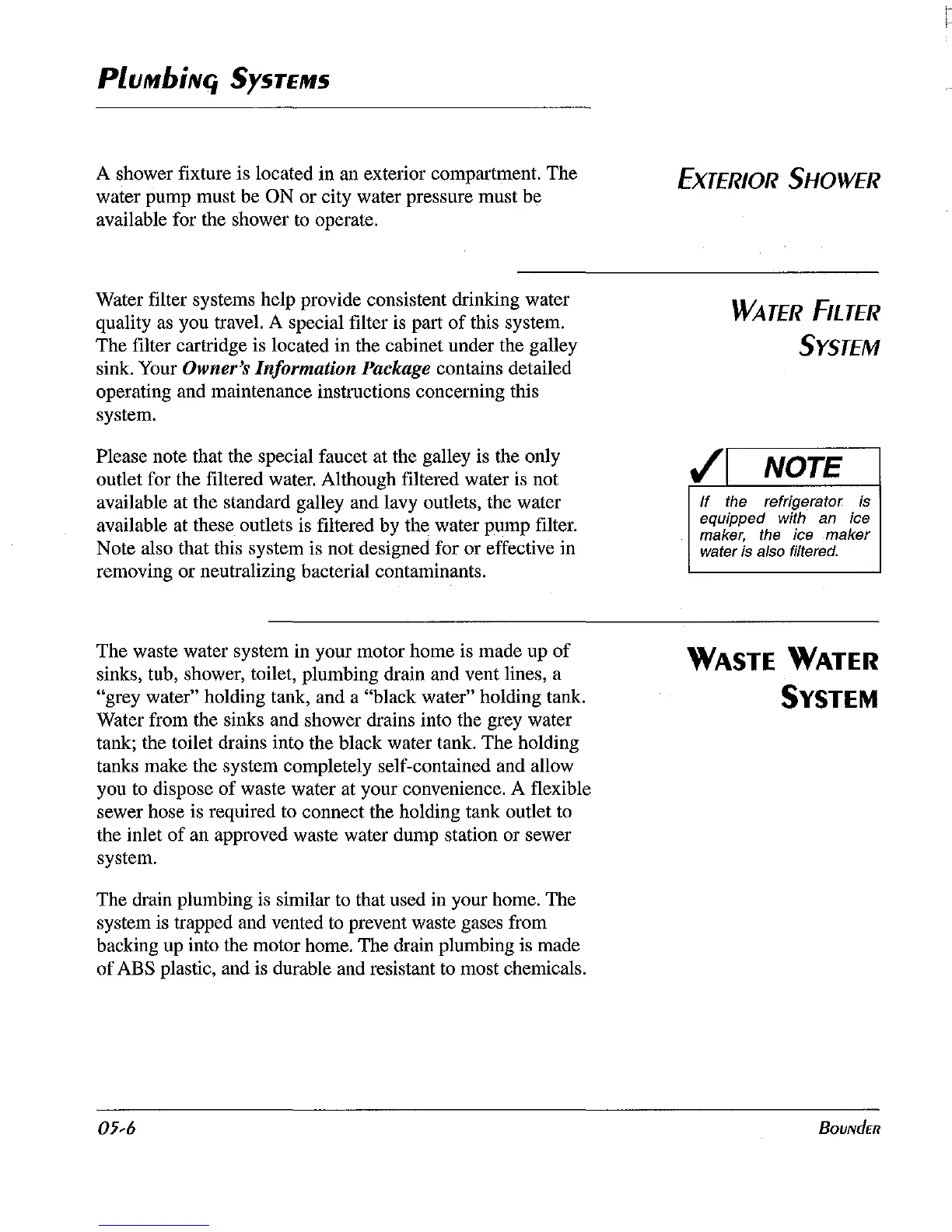

PlUMbiNq
SYSTEMS
A shower fixture is located in an exterior compartment. The
water pump must be
ON or city water pressure must be
available for the shower
to
operate.
Water filter systems help provide consistent drinking water
quality as you travel. A special filter is part
of
this system.
The filter cartridge is located in the cabinet under the galley
sink. Your
Owner's Information Package contains detailed
operating and maintenance instructions concerning this
system.
Please note that the special faucet at the galley is the only
outlet for the filtered water. Although filtered water is not
available at the standard galley and lavy outlets, the water
available at these outlets is filtered by the water pump filter.
Note also that this system is not designed for or effective in
removing or neutralizing bacterial contaminants.
The waste water system in your motor home is made up
of
sinks, tub, shower, toilet, plumbing drain and vent lines, a
"grey water" holding tank, and a "black water" holding tank.
Water from the sinks and shower drains into the grey water
tank; the toilet drains into the black water tank. The holding
tanks make the system completely self-contained and allow
you to dispose of waste water at your convenience. A flexible
sewer hose is required to connect the holding tank outlet to
the inlet
of
an approved waste water dump station or sewer
system.
The drain plumbing is similar
to
that used in your home. The
system is trapped and vented
to
prevent waste gases from
backing up into the motor home. The drain plumbing is made
of
ABS plastic, and is durable and resistant to most chemicals.
EXTERIOR
SHOWER
WATER
FILTER
SYSTEM
v'1
NOTE
If
the refrigerator is
equipped with an ice
maker, the ice maker
water is also filtered.
WASTE WATER
SYSTEM
