Electric Wiring:
DANGER!!
Make sure the main power supply to the machine is off to prevent accidental shock.

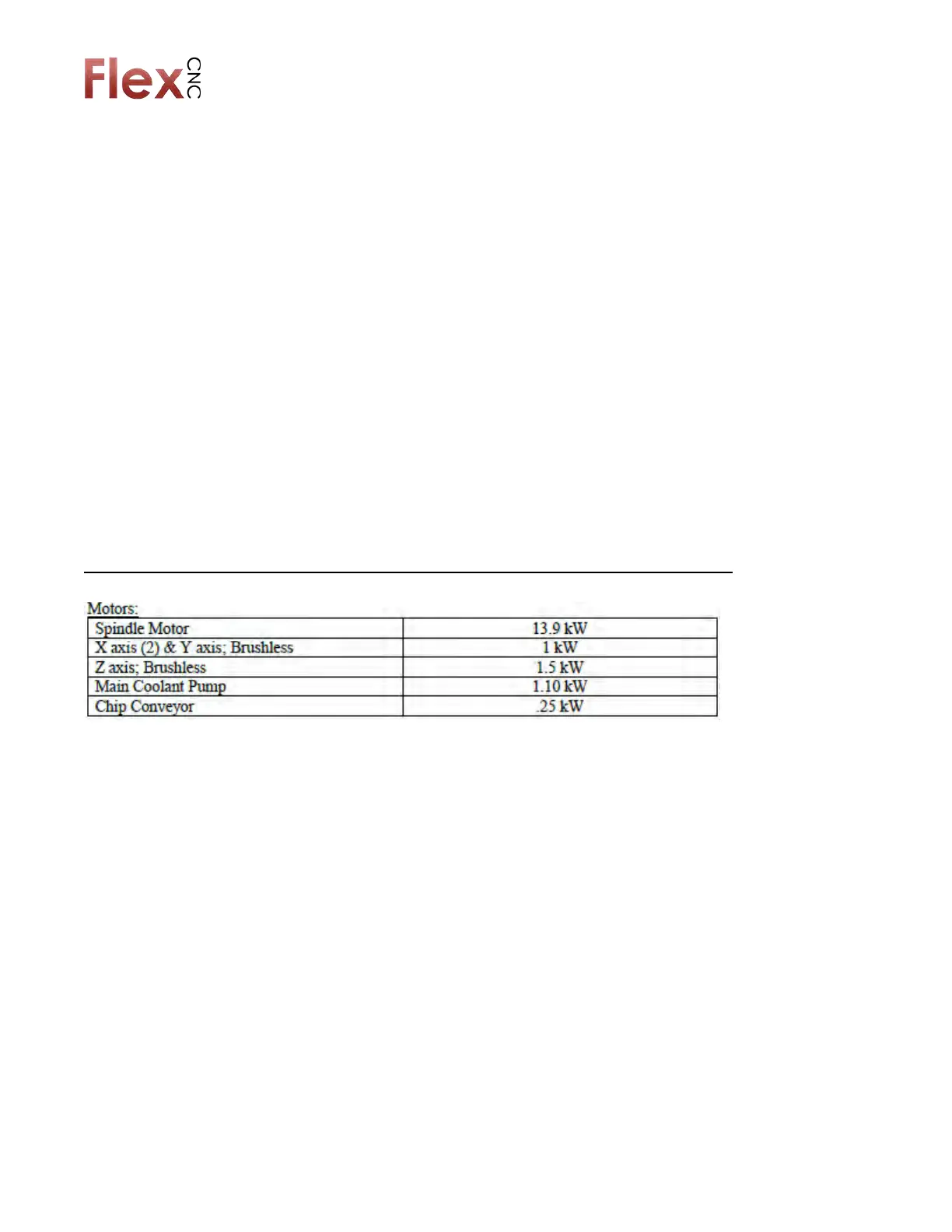

After the machine is installed, connect the machine to a suitable power supply line. To
do this, prepare a cable for 4 wires (3 phases + ground) suitable for the required power.
This will supply the autotransformer. For example:
- 3 Phases - 8 AWG (480V) - 1 Ground - 8 AWG
A power shut off switch needs to be located between the building power and the
machine. Terminal Box is located at the rear right side of the machine looking from
control side. Connect the wires from the autotransformer to the terminals in the main
switch, ensuring that supply voltage is 480 volts/60 HZ/3 phase/40 amps. A 480V to
400V autotransformer will ship with the machine. A NEUTRAL WIRE NEEDS WIRED
BETWEEN THE AUTOTRANSFORMER AND THE MACHINE!!! Without it will cause damage
to components.
Don’t turn on the main power switch without checking the voltage first.
