Page
15
of
18
Machine Locking Me
chanisms:
The following nee
ds to be adde
d to the machine f
or moving, tra
nsportation, an
d lifting.

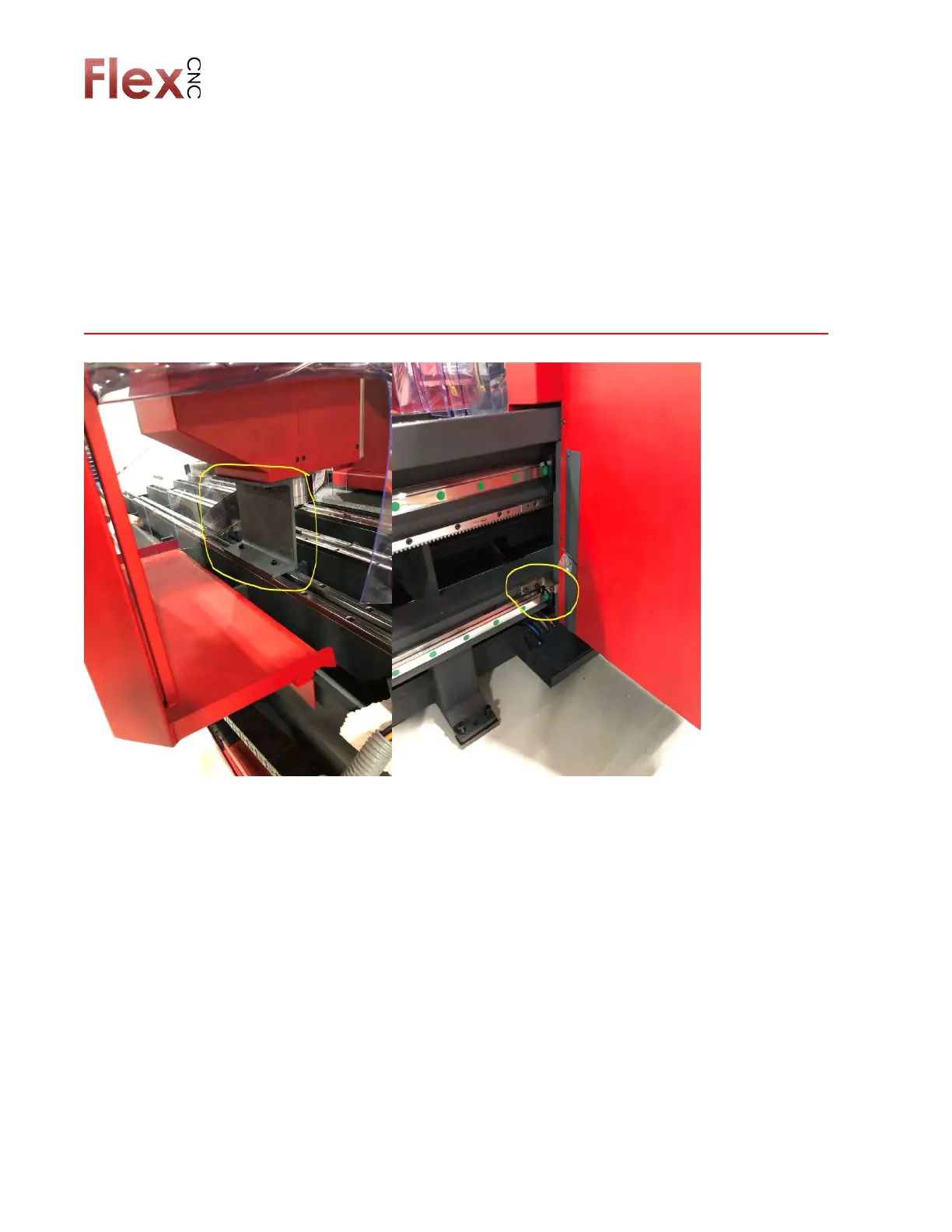

Below is the su
pport for the Z a
xis. It is attached to t
he head to ke
ep Z axis in its low
est
position. It also pr
ohibits X, Y, an
d Z axis from mov
ing. Below is also an extra s
upport for
the X axis, the
bracket is locate
d on the re
ar of the machi
ne.
ALL OF THESE B
RACKETS MUST
BE REMOVED PRIOR
TO POWERING M
ACHINE UP!!
14
16
Table of Contents
Table of Contents
2
Introduction
3
Safety Standards
4
Technical Data
5
Installation
8
Foundation and Anchoring Machine
10
Electric Wiring
11
Air Connection
13
Ethernet Connection
14
Machine Locking Mechanisms
15
Shipping Information
16
Cleaning Machine after Installation
16
Maintenance
17
