8.8 Sensor Module (SENSPROM)
The sensor module contains important transducer data for the operation of the transmitter with the transducers. It is con-
nected to the connector strips above the display of the transmitter.
If transducers are replaced or added, the sensor module also has to be replaced or added.
• Insert the sensor module into the socket of the measuring channel to which new transducers have to be connected.

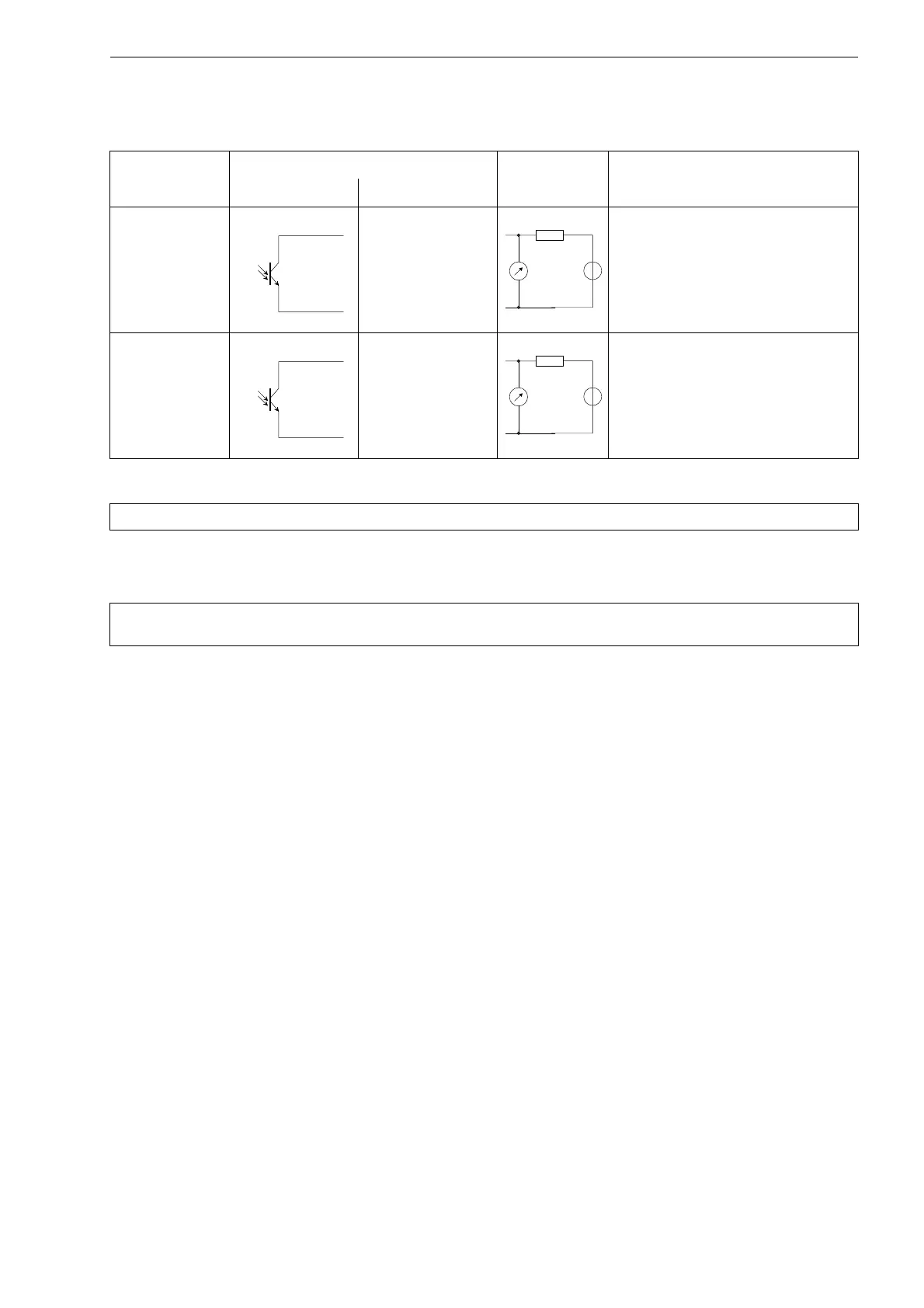

Tab. 8.4: Circuits of the outputs
output transmitter external circuit remark
internal circuit connection
binary output
(open collector) B1: 14
B1: 13
U
i
= 13.2 V
U
ext
= 5...12 V
R
c
[kΩ] = U
ext
/I
c
[mA]
I
c
= 1...4 mA
frequency output
(open collector) F1: 3
F1: 2
U
i
= 13.2 V
U
ext
= 5...12 V
R
c
[kΩ] = U
ext
/I
c
[mA]
I
c
= 1...4 mA
Attention! Observe the "Safety Instructions for the Use in Explosive Atmosphere" (see document SIFLUXUS).
Note! The serial number of sensor module and transducer have to be identical. A wrong or incorrectly con-
nected sensor module will lead to incorrect measured values or to a measurement failure.
R
c
U
ext
V
+
-
R
c
U
ext
V
+
-
