FLUXUS ADM 8027, F801, ADM 8127B 5 Selection of the Measuring Point
24 UMFLUXUS_F8V4-6-1EN, 2018-10-10

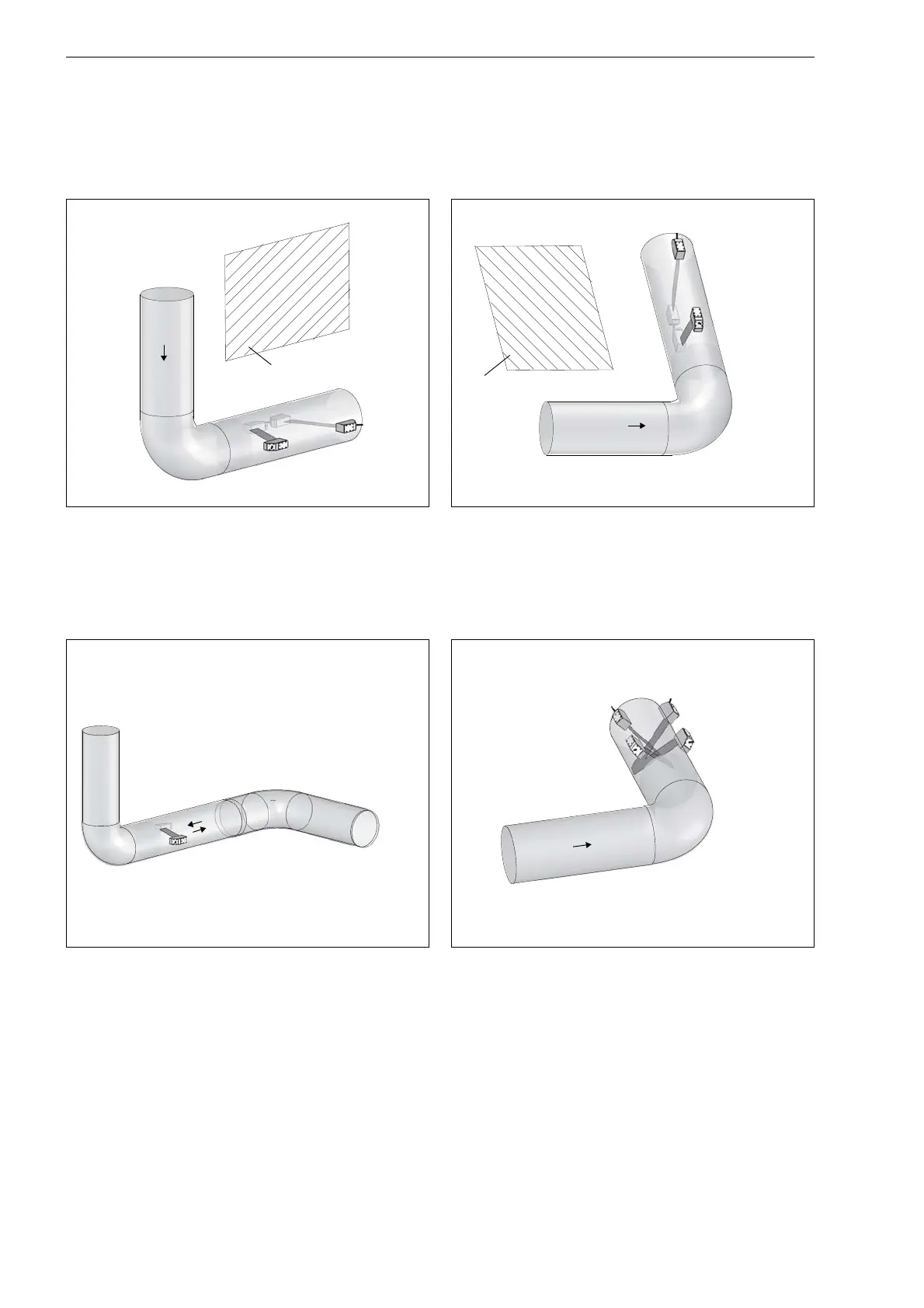

5.4 Selection of the Sound Beam Plane near an Elbow
With vertical pipe orientation With horizontal pipe
The sound beam plane (see section 3.3.1) has an angle
of 90° to the elbow plane. The elbow is upstream of the
measuring point.
The sound beam plane (see section 3.3.1) has an angle
of 90° ± 45°to the elbow plane.
With measurements in both directions With measurements in the reflection arrangement with
2 beams and 2 planes
The sound beam plane (see section 3.3.1) is selected
according to the nearest elbow (horizontal or vertical, de-
pending on the pipe orientation - see above).
The 2 sound beam planes (see section 3.3.1) have an
angle of 45° to the elbow plane. The elbow is upstream of
the measuring point.
With horizontal pipes, the transducers are mounted on
the upper half of the pipe.
elbow plane
flow direction
elbow plane
flow direction
flow direction
flow direction
