FLUXUS F70x 6 Installation
42 UMFLUXUS_F7V4-6-2EN, 2017-10-01
• Insert the long end of the tension strap into the second slot of the tension strap clamp (see Fig. 6.44 a).
• Tighten the tension strap and bend it.
• Bend both ends of the tension strap (see Fig. 6.44 b).
• Repeat the steps for the second tension strap. Position the tension strap at the distance s (see Fig. 6.44).
• Put the rail on the tension strap clamps.
• Use the screws to fix the rail to the tension strap clamps (see Fig. 6.45).
• Tighten the screws.
Installation of the rail with the ratchet clasp
• Cut the tension strap to length (pipe circumference + at least 120 mm).
• Insert approx. 100 mm of the tension strap into parts 1 and 2 of the ratchet clasp (see Fig. 6.46 a).

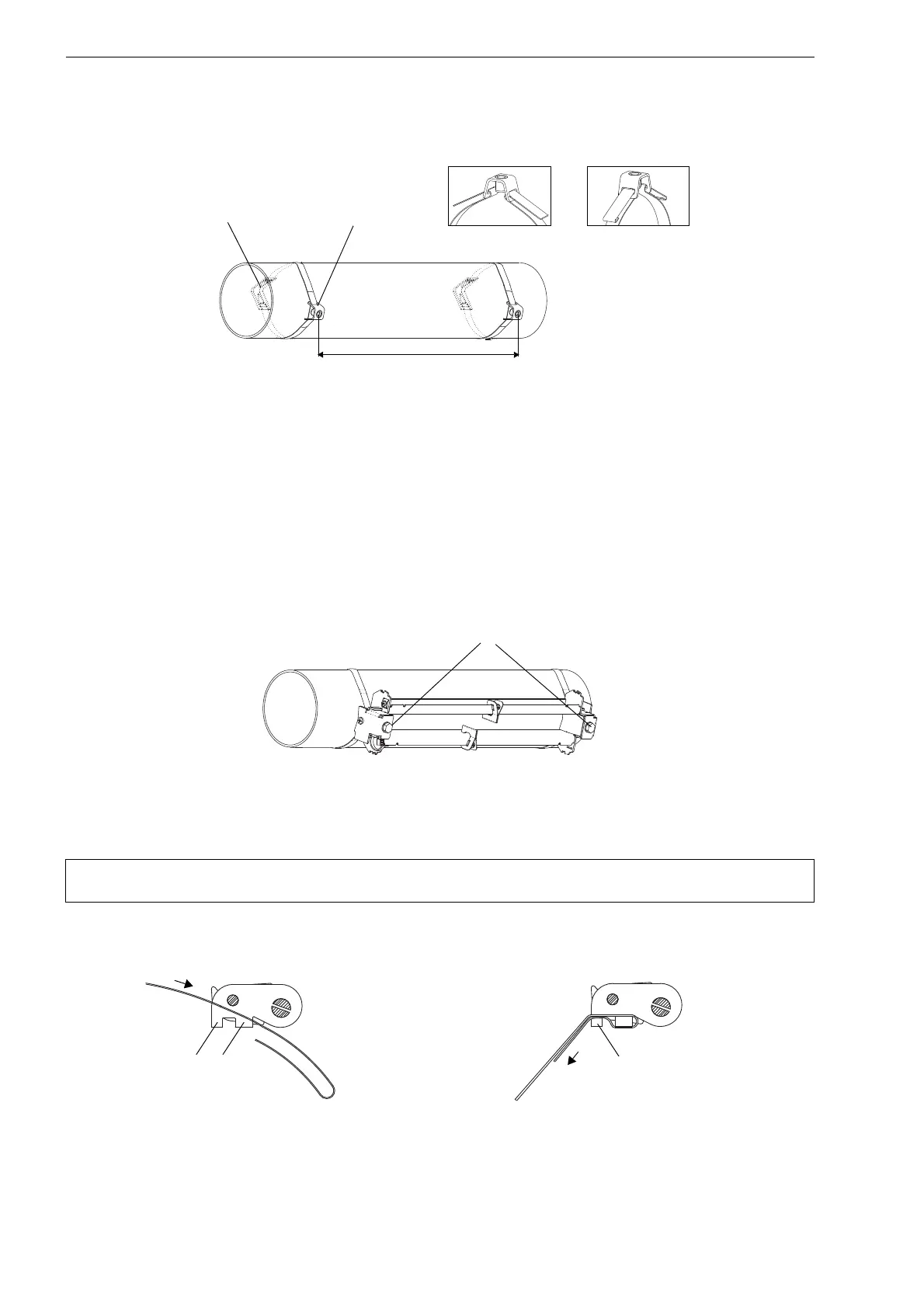

Fig. 6.44: Tension strap with the metal spring and the tension strap clamp on the pipe
Fig. 6.45: Rail on the pipe
Note! The edge of the tension strap is very sharp, leading to risk of injury. Remove the burr of the sharp
edge.
a b
Fig. 6.46: Ratchet clasp with tension strap
s
ab
tension
strap
metal spring
s = length of the rail - 33 mm
