6 Installation FLUXUS F70x
UMFLUXUS_F7V4-6-2EN, 2017-10-01 43
• Bend the tension strap.
• Insert the tension strap into part (1) of the ratchet clasp (see Fig. 6.46 b).
• Tighten the tension strap.
• Insert the long end of the tension strap into the tension strap clamp and the metal spring (see Fig. 6.47). It is not neces-
sary to mount the metal spring:
– on steel pipes
– on pipes with an outer pipe diameter < 80 mm or
– on pipes that are not subjected to significant temperature fluctuations
• Place the tension strap around the pipe (see Fig. 6.48).
• Position the metal spring (if mounted), the ratchet clasp and the tension strap clamp:
– On a horizontal pipe, mount the tension strap clamp on the side of the pipe, if possible.
– Mount the metal spring (if necessary) on the opposite side of the tension strap clamp.
• Insert the long end of the tension strap into part (3) of the ratchet clasp (see Fig. 6.49).
• Tighten the tension strap.
• Cut off the protruding tension strap (see Fig. 6.50).
• Tighten the screw of the ratchet clasp.
• Repeat the steps for the second tension strap.

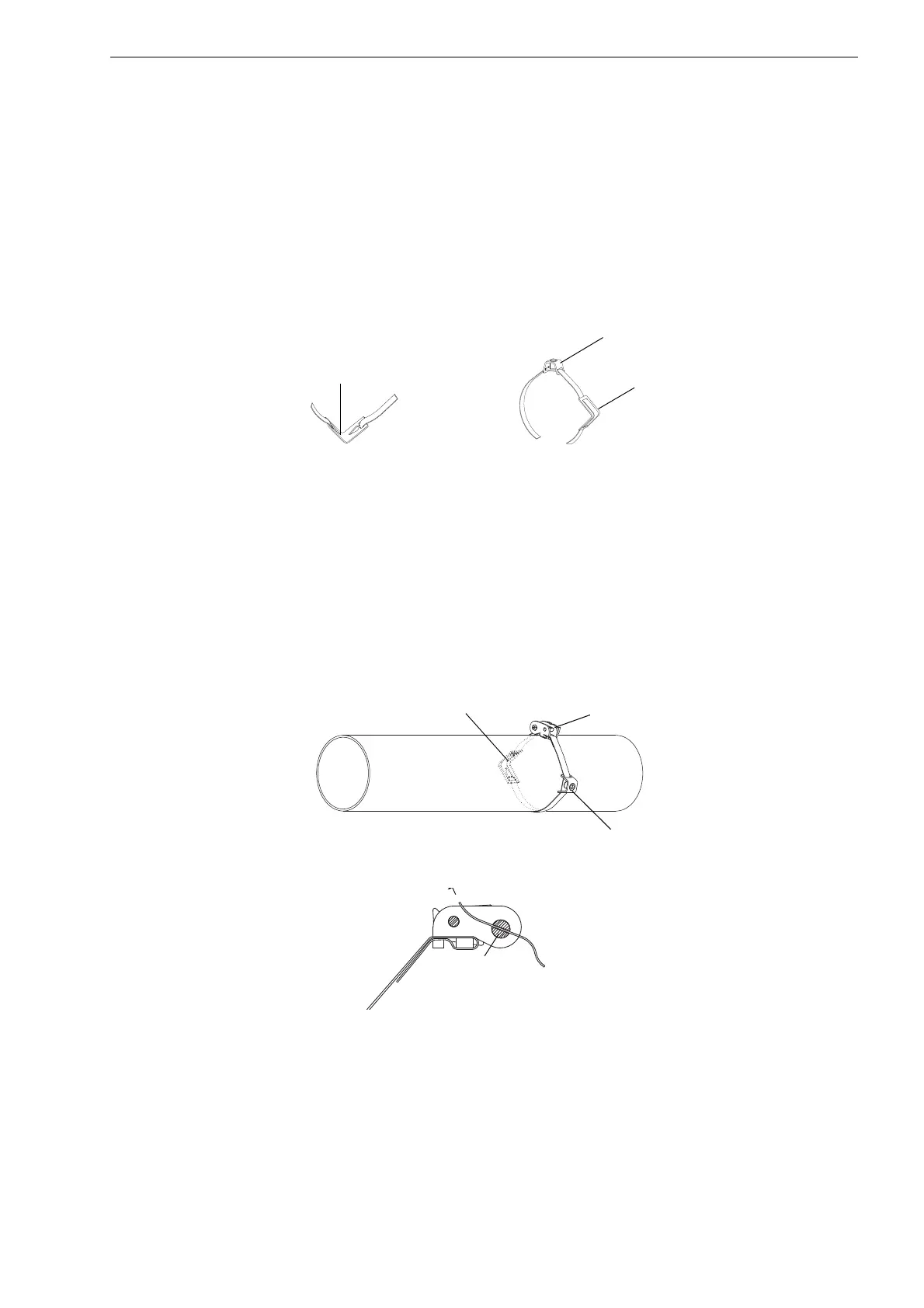

Fig. 6.47: Tension strap with the metal spring and the tension strap clamp
Fig. 6.48: Tension strap with the metal spring, the ratchet clasp and the tension strap clamp on the pipe
Fig. 6.49: Ratchet clasp with tension strap
tension strap clamp
metal spring
tension strap clamp
metal spring
ratchet clasp
