7 Installation of FLUXUS F809 FLUXUS F808, F809
UMFLUXUS_F808_8091V1-2-1EN, 2019-08-23 55
7.3 Installation
7.3.1 Wall installation
• Fix the housing to the instrument mounting plate (2) (see Fig. 7.2).
• Fix the transmitter to the wall.

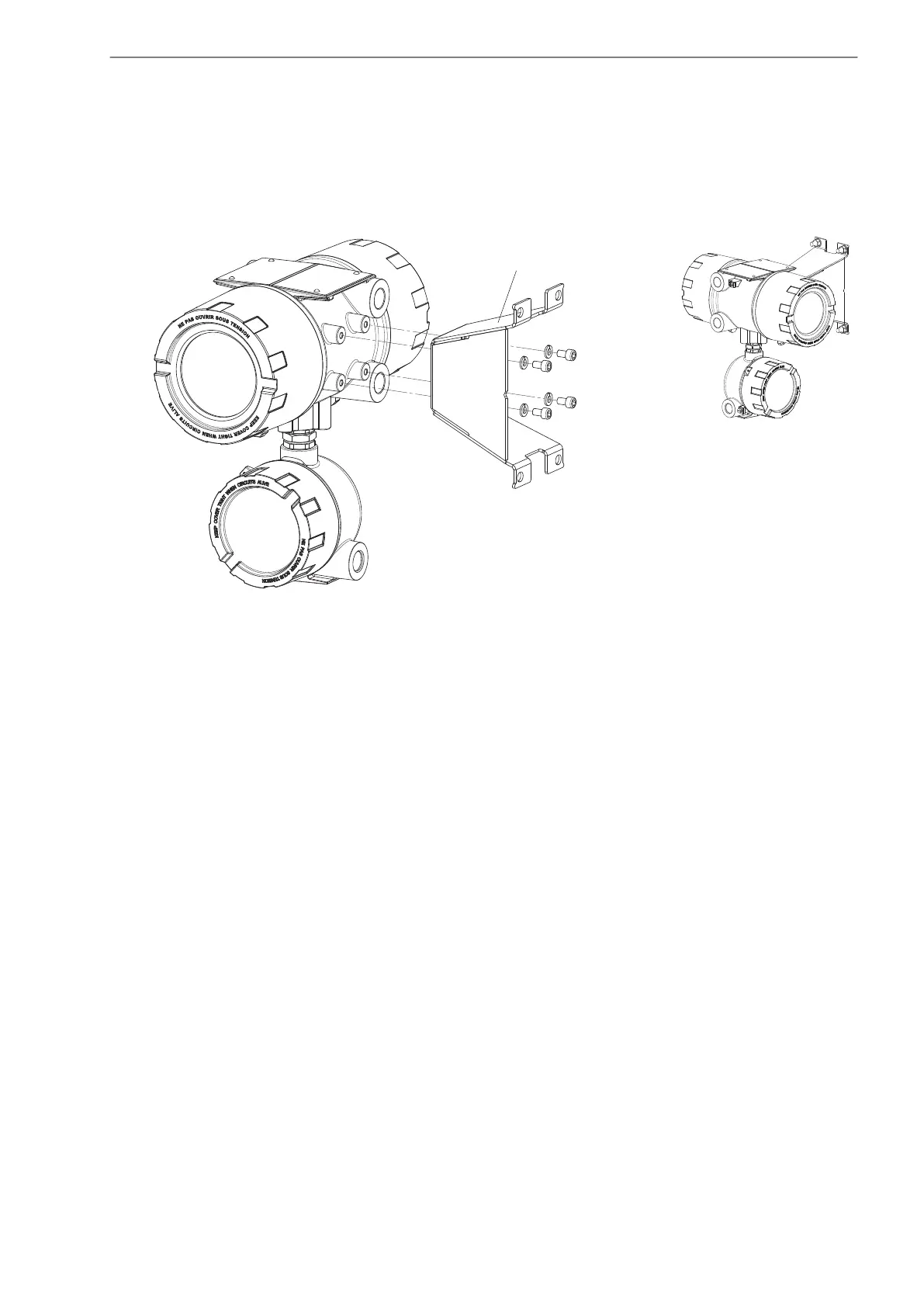

Fig. 7.2: Wall installation
2
