3.3 Introduction to drive units
3.3.1 Three types

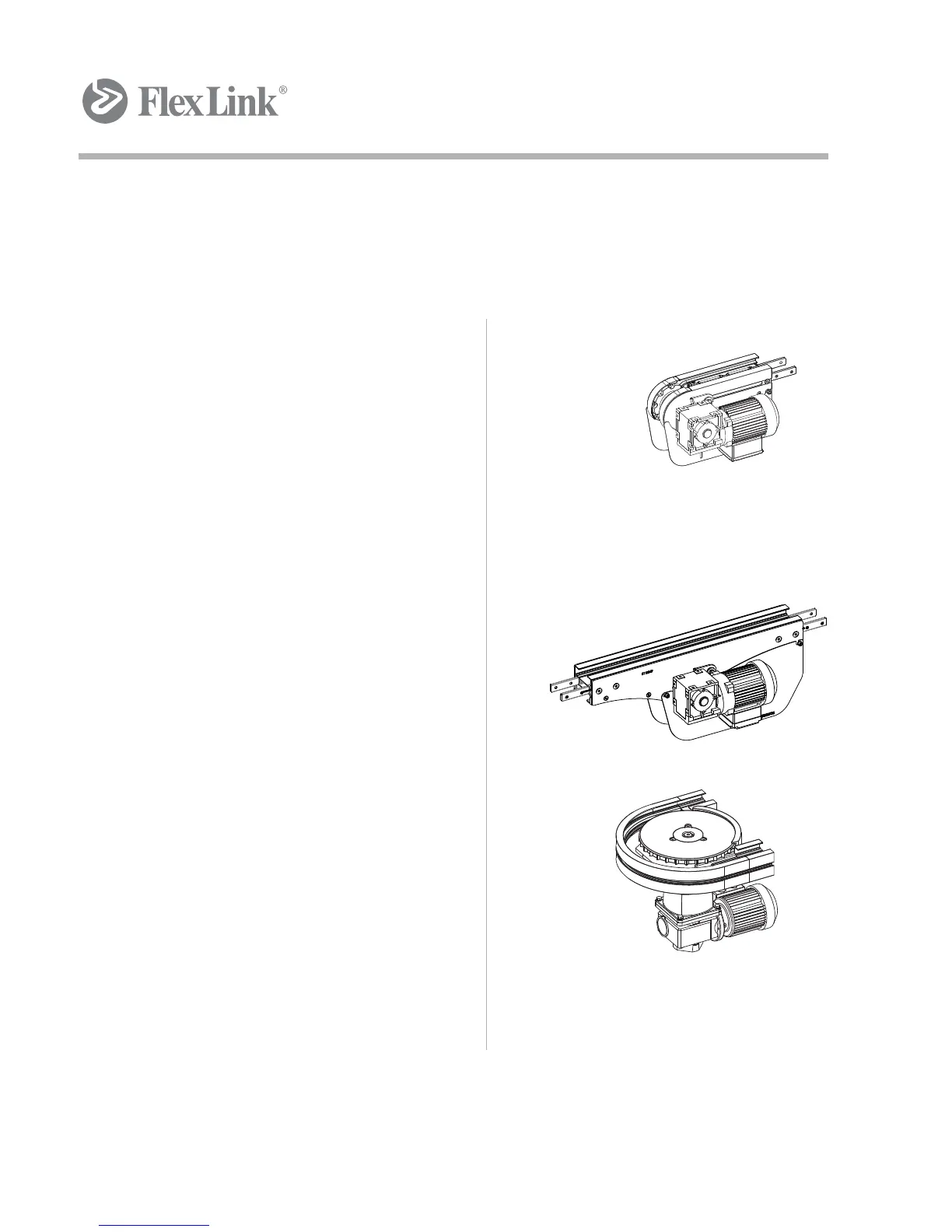

There are three different types of drive units: end drive, intermediate drive
and horizontal bend drive units
1
End drive units
End drive unit with return chain,
located at the ‘pulling’ end of the
conveyor. End drive units are either
direct drive types (see picture) or
transmission chain types.
NB: The roller chain transmission has
chain guards and gearing
protection. These guards should
always be in position when the
conveyor is in operation.
2
Intermediate drive units
Intermediate drive unit located at an
intermediate position along the
conveyor.
3
Horizontal bend drive units
Horizontal bend drive unit for driving
endless conveyors without return
chain.
