Maintenance
Created by EBCCW 00:06
25
5814EN-3

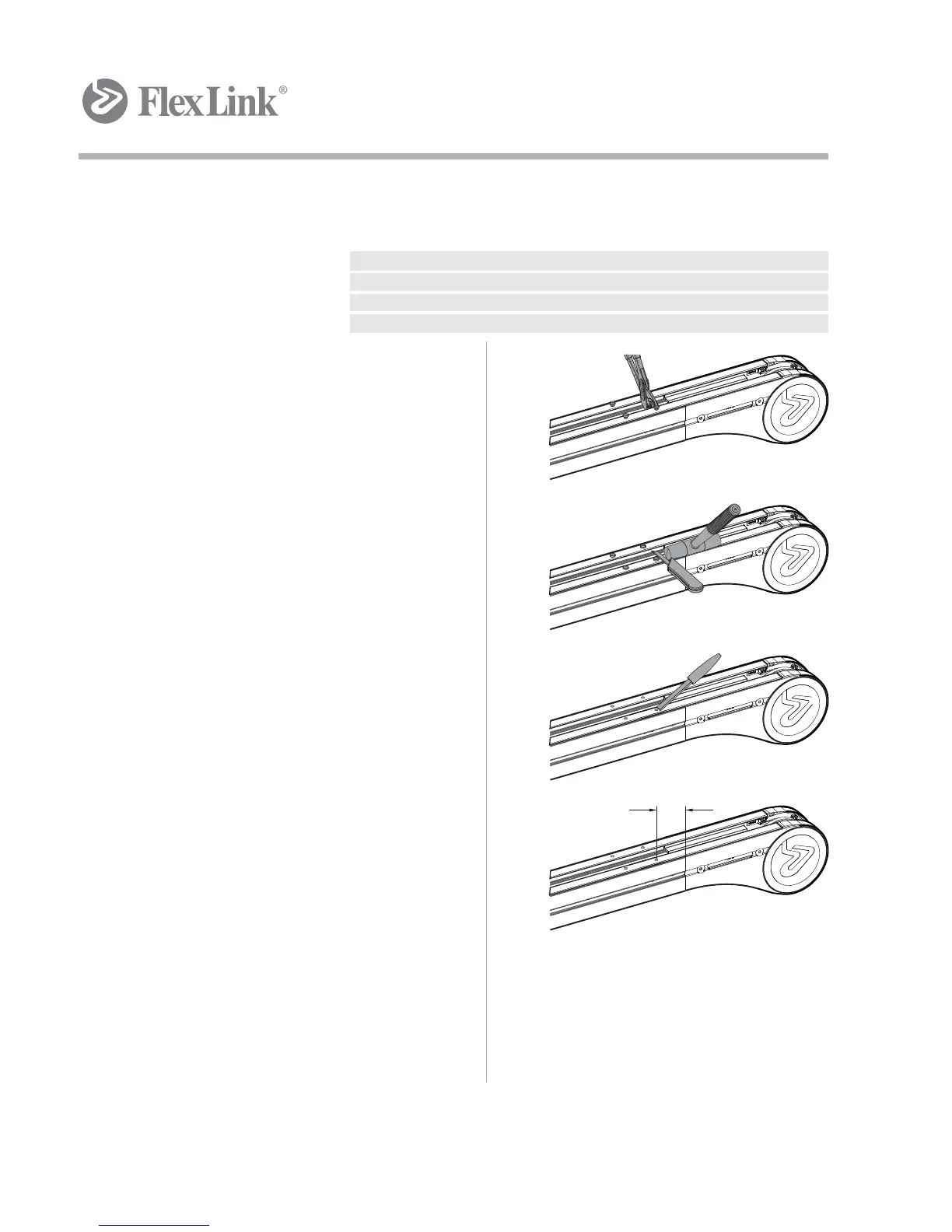

Installation of slide rail (continued)
Method 2: Using plastic screws
Pliers/screwdriver
Knife
Hammer
Plastic screws XLAG 5
1
Press or screw the plastic screws into
the holes using a pair of pliers or a
screwdriver.
2
Cut off the screw heads by using a
knife and a hammer. The cut should be
made away from the joint, in the
direction of chain travel.
3
Check that the screws do not protrude
over the surface of the slide rail.
Check both top and underneath
surface of slide rail for protruding
plastic.
4
Keep a distance of approximately 30
mm between rivets and idler/drive
units. This is in case the units have to
be removed after conveyor system
assembly.
