Page 6
© 2018 FlexRadio Sy
stems, V1.2
Installing the G
PSDO Module Asse
mbly
The next step is to install the
GPSDO module assembly
into the FLEX
-6000.
If installed, remove the GPSD
O RF shield
from the module

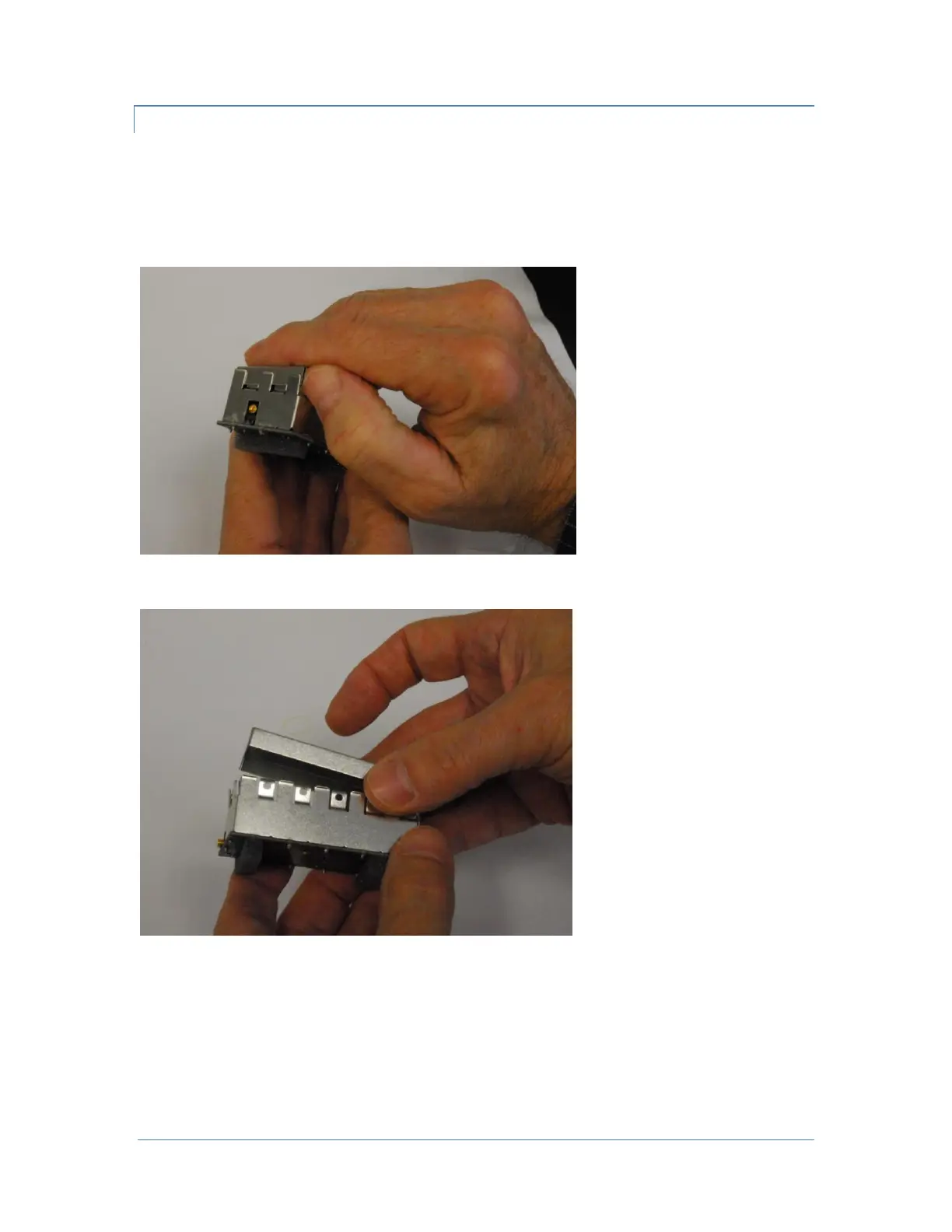

housing by gently pry
ing it upwards on all four
sides evenly as sho
wn below. Be careful not
to bend the retaining teeth b
y prying up one side more
than
another.
Gently lift off the shi
eld as shown below.
5
7
