FLIR A6 Series - Explanation; FLIR A6 Xx Sc Series; Figure

Example system overviews11
11.1.6 Explanation
1. Computer.
2. CAT-6 Ethernet cable with RJ45 connectors.
3. Industrial Ethernet switches with fiber optic ports.
4. Fiber-optic cable.
5. Wireless access points.
6. CAT-6 Ethernet cable with RJ45 connectors—powering the camera using PoE (de-
pendent on the camera model).
7. Industrial Ethernet switch.
8. FLIR A6xx cameras.
11.2 FLIR A6xx sc series
11.2.1 Figure

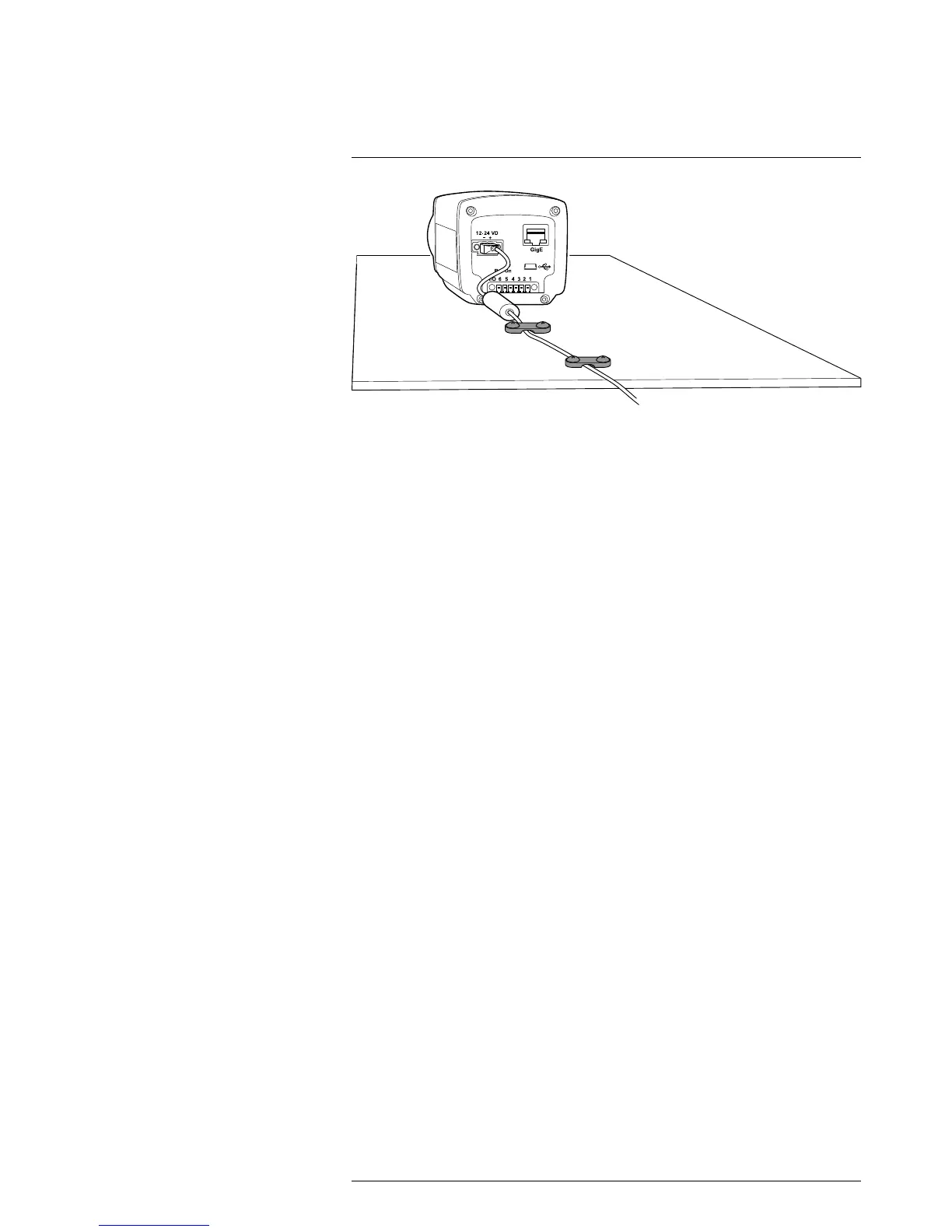

11.2.2 Explanation
1. Computer.
2. CAT-6 Ethernet cable with RJ45 connectors.
3. Laboratory set-up with a FLIR A6xx sc camera.
