Example system overviews

12.1 FLIR A6xx series

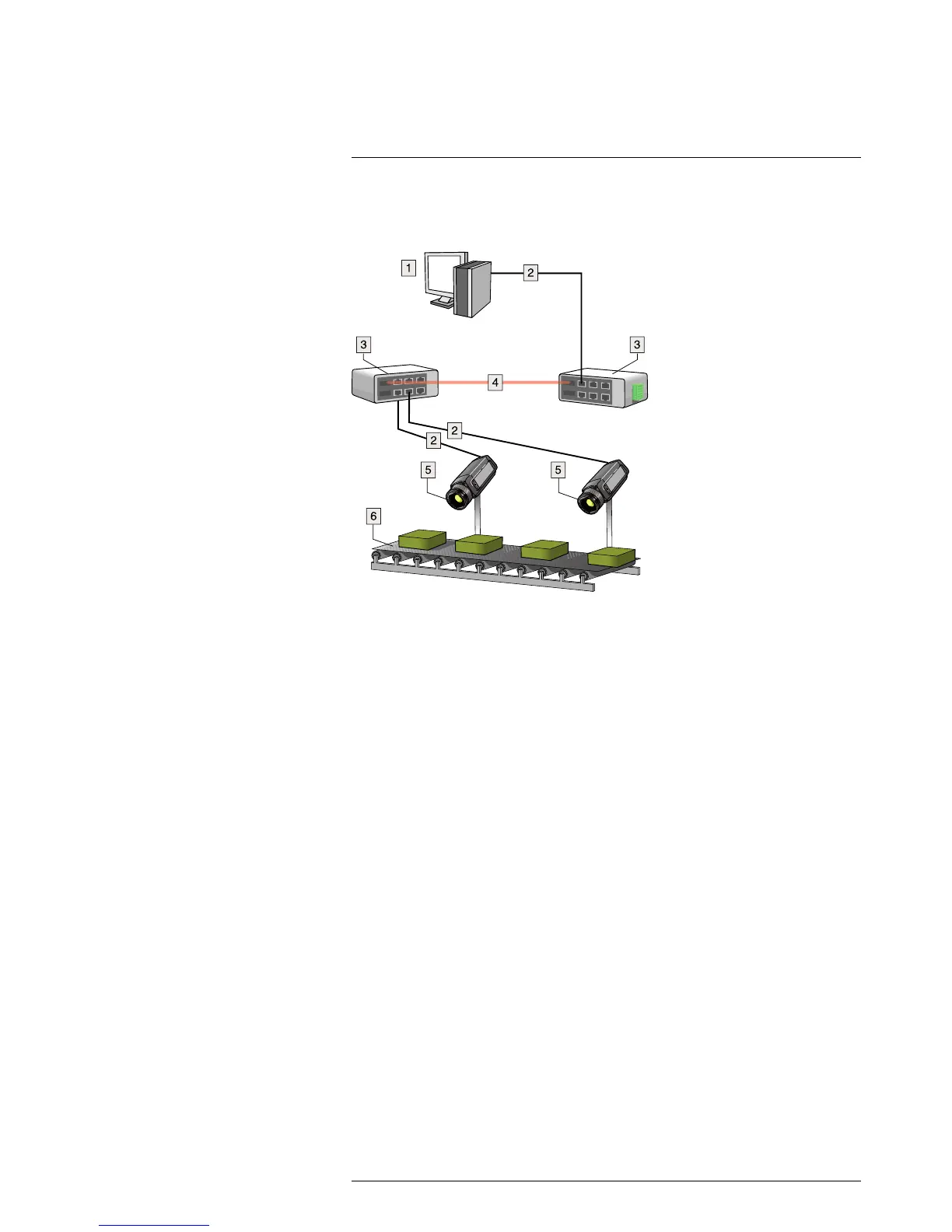

12.1.1 Figure

12.1.2 Explanation

1. Computer.

2. CAT-6 Ethernet cable with RJ45 connectors.

3. Industrial Ethernet switches with fiber-optic ports.

4. Fiber-optic cable.

5. FLIR A6xx cameras.

6. Industrial process to be monitored, e.g., items on a conveyor belt.
