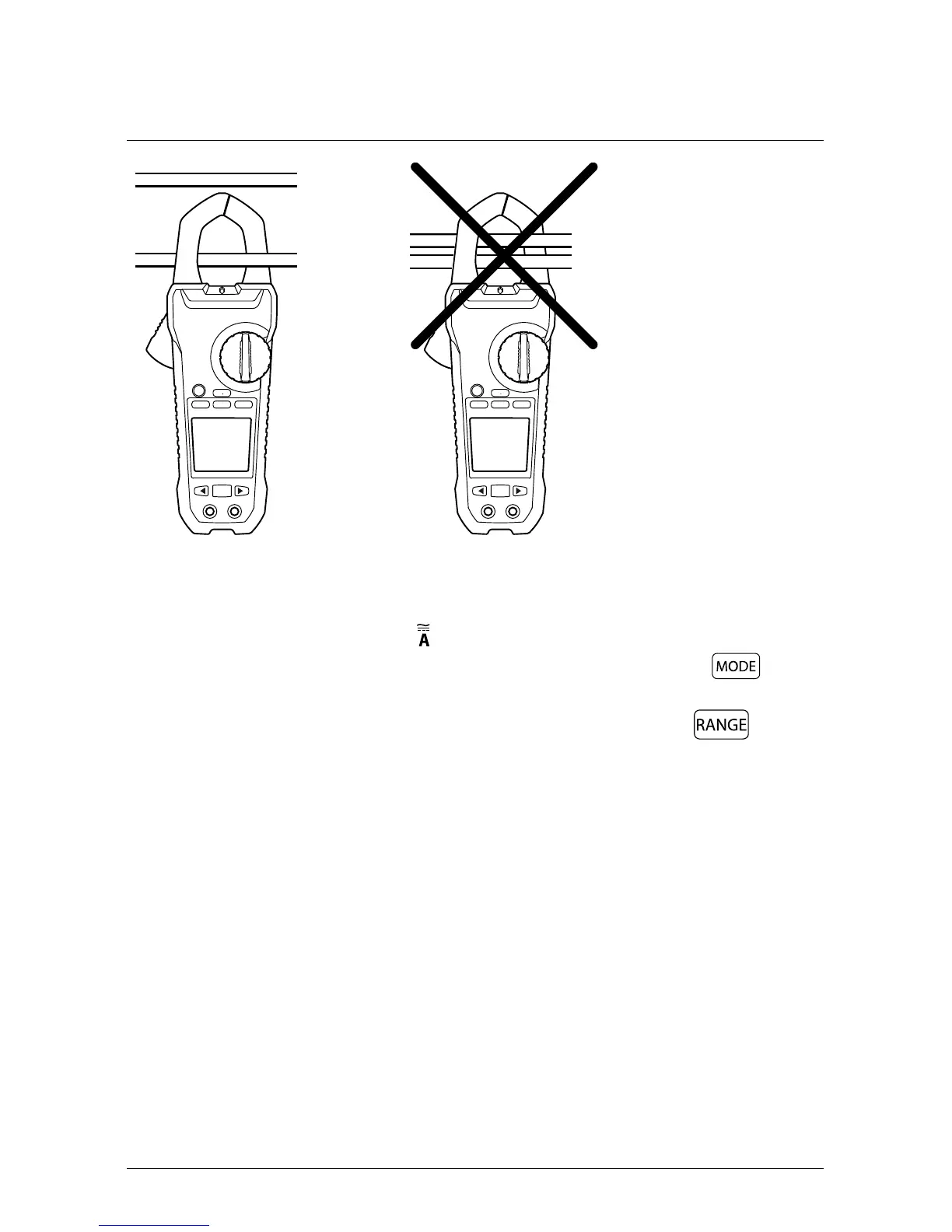

Figure 5.1 Correct and incorrect setup
1. Ensure that the probe leads are disconnected from the meter.
2. Set the function switch to the
position.
3. To manually select AC, DC, or AC+DC measurement, press the
button
repeatedly. Refer to section 5.2 Auto/Manual select mode, page 14.
4. To manually select the measurement range (scale), press the
button
repeatedly. Refer to section 5.3 Auto/Manual range mode, page 15.
5. Press the trigger to open the clamp jaws. Fully enclose one conductor—refer
to Figure 5.1. For optimum results, center the conductor in the jaws.
6. Read the current value on the display.
5.6.3 Extended functionality
In addition to the basic voltage and current measurements, the meter can be set
to different modes for extended functionality.
5.6.3.1 Selecting the mode
The mode icons applicable for the selected measurement type are displayed in
the lower part of the display. When a mode is enabled, the icon is framed.
