427-0032-00-12, Version 170 Mar 2014 1-7
1 PT-Series Camera Installation
Analog Video
(monitoring output only)
Camera Power
IP Network Analog Visible Video
Analog Infrared Video

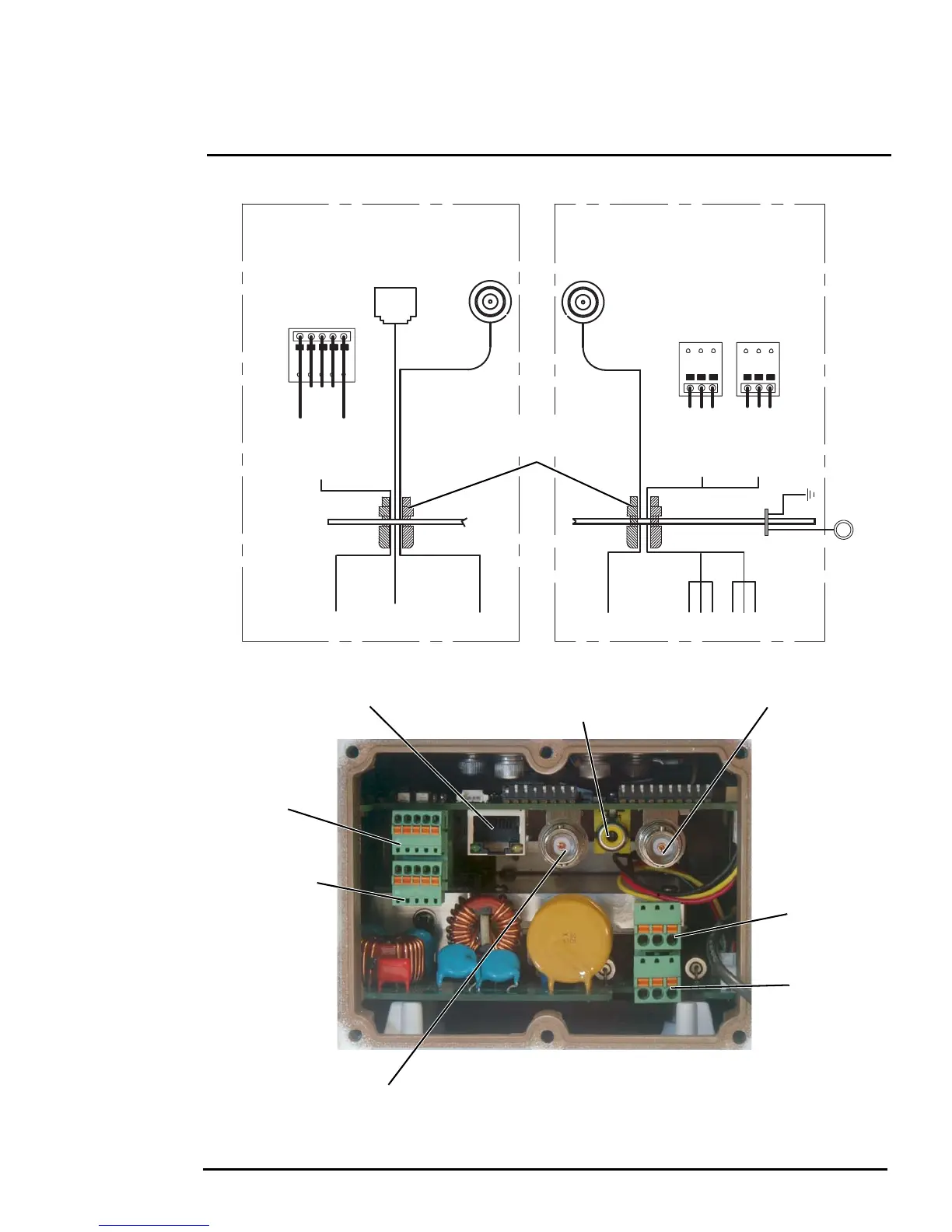

Figure 1-3: PT-Series Camera Connections
Heater Power
Not used
Serial Connector
for local control
Gland A Camera End
Serial and IP Communications
Main Analog Video
Gland B Camera End
Auxiliary Analog Video and Power
EthernetSerial
Control
Male
BNC
Video
Ethernet
RS232
RS422
20 AWG MAX
RX+
TX+
GND
RD(A)-
GND
RD(B)+
TD(A)-
TD(B)+
1
2
3
4
5
{
Main
Port
Back Cover
16 AWG Shielded
16 AWG Shielded
Local
GND
24
VAC/DC
24
VAC/DC
1
2
3
1
2
3
24 VAC/DC+
24 VAC/DC-
Earth Ground
24 VAC/DC+
24 VAC/DC-
Earth Ground
{
{
Chassis
GND
Video
Male
BNC
Auxiliary
Port
3/4” NPT for Cable
Gland or Conduit
