To configure a radar synchronization method and chirp slot, use the following steps:
Note
onization method must be programmed before being able to change the chirp slot.
Step 1 Start the Radar Console application in direct mode
Step 2 Logon as Administrator on the Radar Console. Select the desired radar assembly to configure,
and click on the button.
Step 3 In the Parameters window, Radar Setup group of parameters, and Current, set Sync_method
and Chirp_slot to the desired values. For the R5D also set the frequency Band to the desired
value. Then press the FLASH button. The radar assembly will reset.

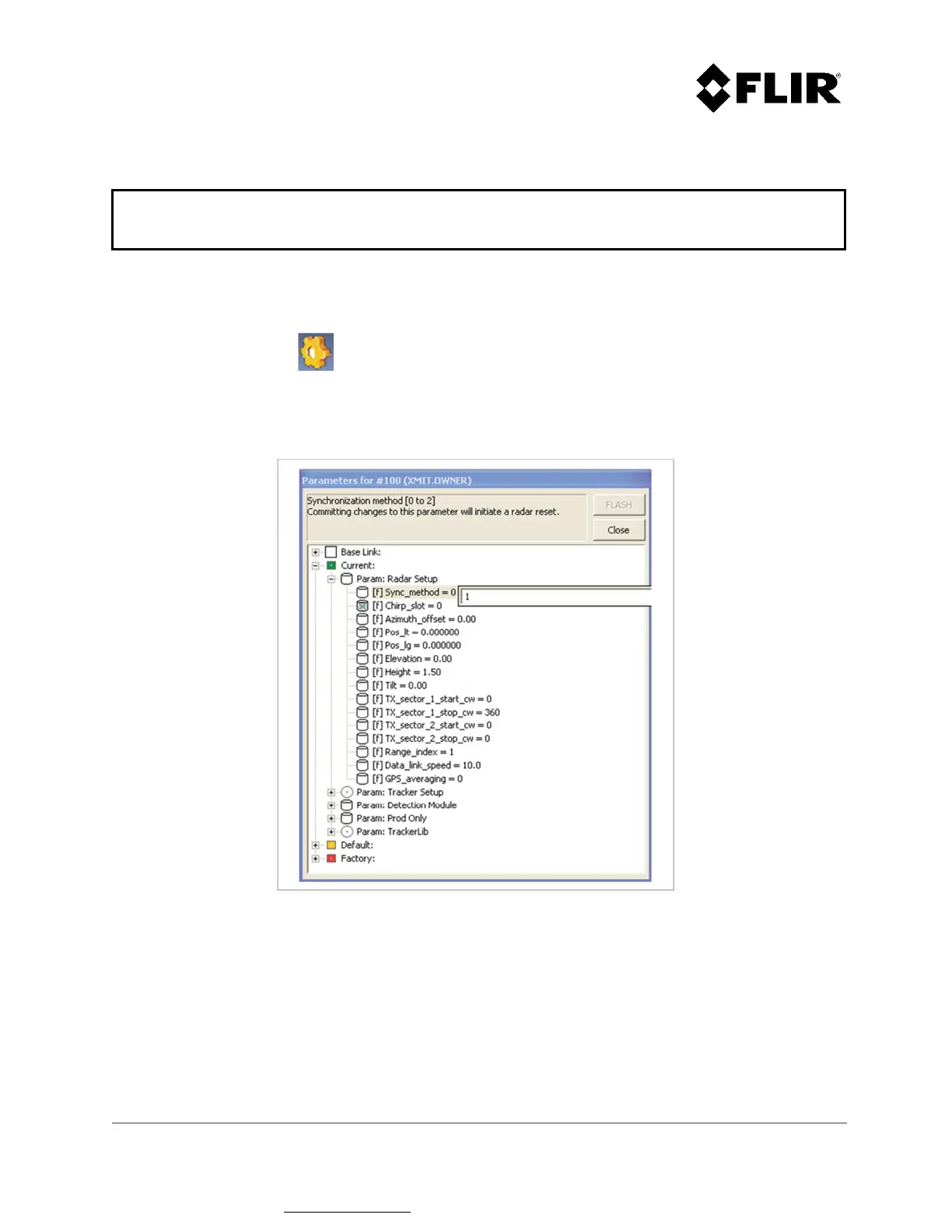

Figure 26 - Configuring Chirp Slots
