7,1in
180,4mm
1,72in
43,7mm
6,58in
167,2mm
5,63in
142,9mm
2,68in
68mm
7,41in
188,3mm
8,05in
204,5mm
7,41in
188,3mm
4,55in
115,5mm
1,72in
43,7mm
2,3in
58,4mm
4,55in
115,5mm
4,76in
120,8mm
5,67in
144mm
5,37in
136,3mm
1,75in
44,5mm
0,55in
14mm
2,77in
70,4mm
1,74in
44,3mm
6,31in
160,2mm
5,63in
143mm
Viewfinder
Optional
Camera housing
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
1(7)
T128849

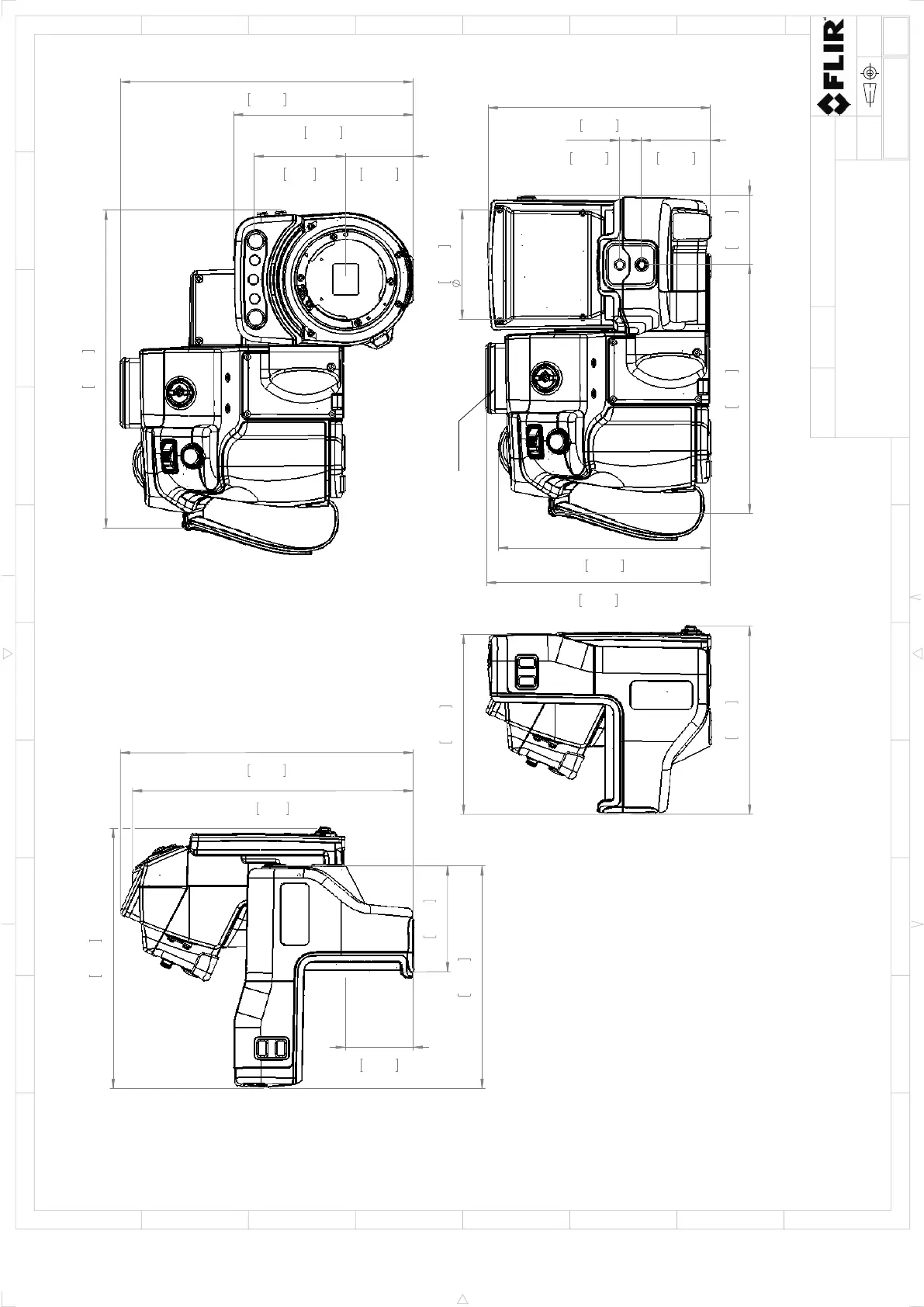

Basic dimensions FLIR T10xx
JOTA
2015-09-17
R&D Thermography
Modified
1 2 3 4 5 6 7 8 9 10
A
B
C
D
E
F
G
H
1 32 54
C
F
B
D
G
E
A
6
Size
D
1:2
Scale
