FLIR T1040 User Manual

6,07in
154,2mm
7,03in
178,5mm
8,1in
205,7mm
7,49in
190,1mm
4,83in
122,6mm
3,58in
91mm
4,32in
109,8mm
3,59in
91,2mm
3,68in
93,4mm
IR-LENS 28° (f=36mm)
Sheet
Drawing No.
Size
Check
Drawn by
Denomination
A3
3(7)
T128849

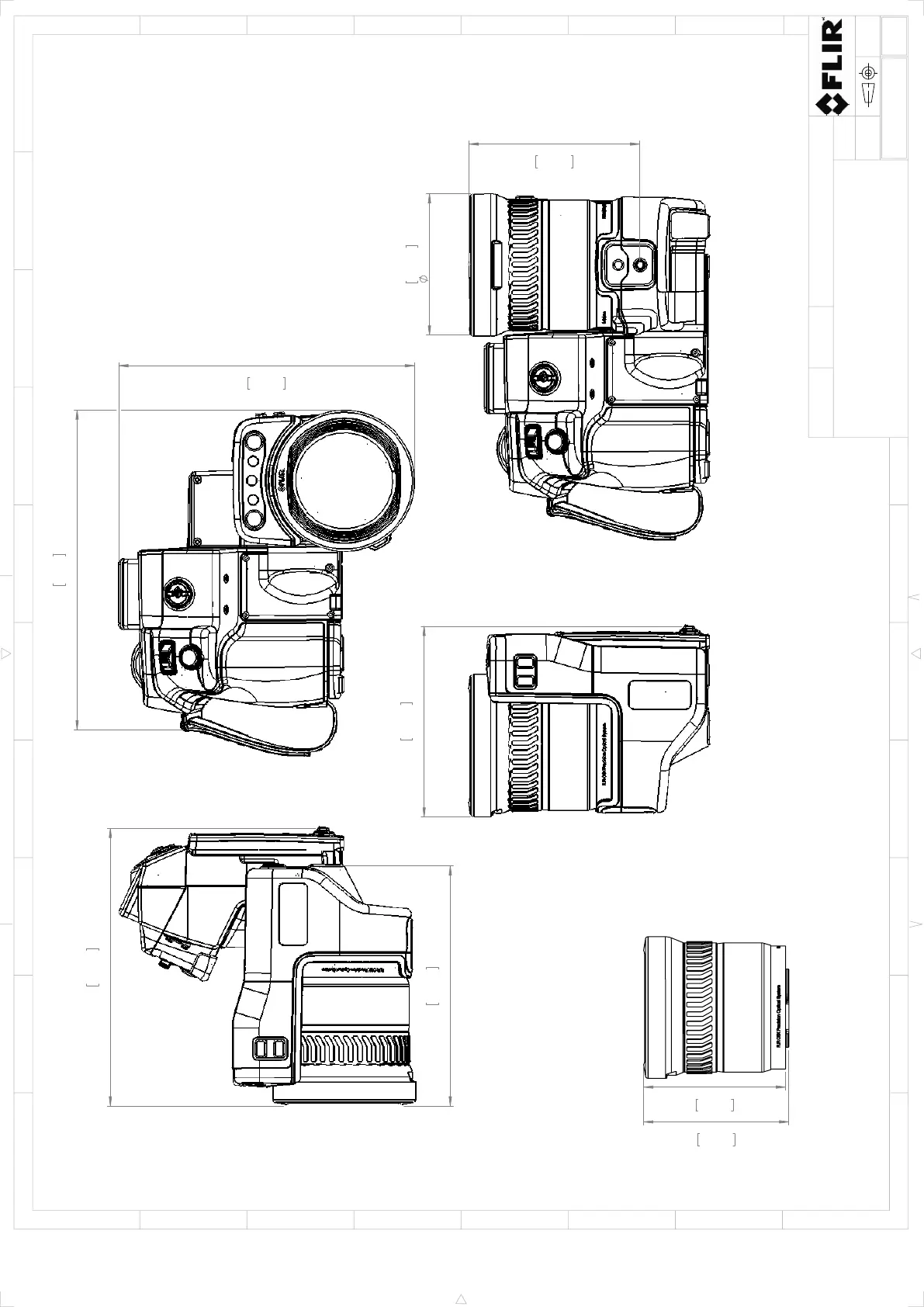

Basic dimensions FLIR T10xx
JOTA
2015-09-17
R&D Thermography
Modified
1 2 3 4 5 6 7 8 9 10
A B
C D
E
F
G
H
1 32 54
C
F
B
D
G
E A
6
Size
D
1:2
Scale
© 2012, FLIR Systems, Inc. All rights reserved worldwide. No part of this drawing may be reproduced, stored in a retrieval system, or transmitted in any form, or by any means, electronic, mechanical, photocopying, recording, or otherwise,
without written permission from FLIR Systems, Inc. Specifications subject to change without further notice. Dimensional data is based on nominal values. Products may be subject to regional market considerations. License procedures may apply.
Product may be subject to US Export Regulations. Please refer to exportquestions@flir.com with any questions. Diversion contrary to US law is prohibited.
-

FLIR T1040 Specifications

General

Brand	FLIR
Model	T1040
Category	Thermal cameras
Language	English
