Camera parts
8
3. Focus button. Move left/right to focus the camera.
4. Attachment point for the neck strap.
5. Camera lamp.
6. Digital camera.
7. Release button for additional infrared lenses.
8. Laser pointer.
Note
The laser pointer may not be enabled in all markets.
9. Infrared lens.

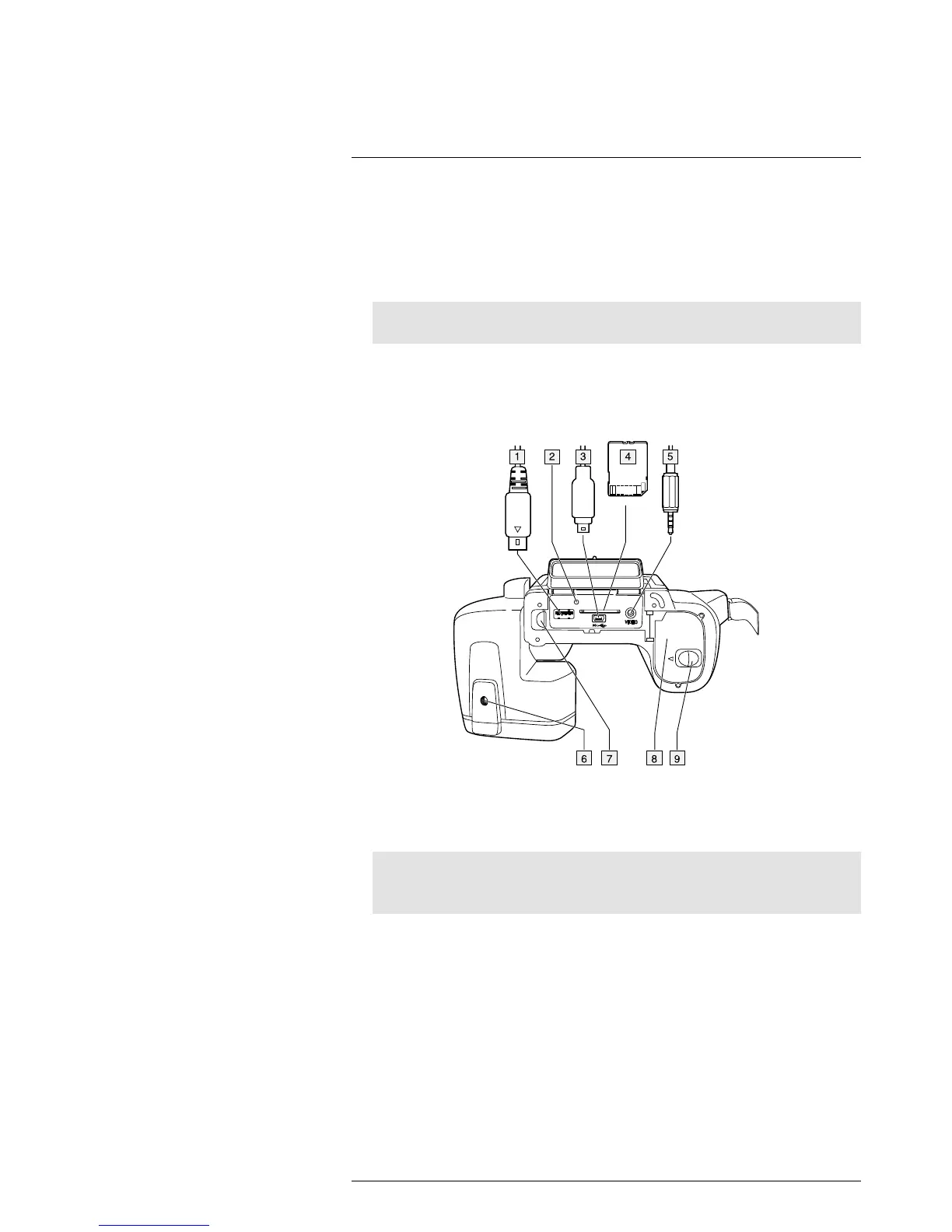

8.3 View from the bottom
8.3.1 Figure
8.3.2 Explanation
1. USB-A cable (to connect an external USB device to the camera).
2. Indicator showing that the memory card is busy.
Note
• Do not eject the memory card when this LED is flashing.
• Do not connect the camera to a computer when this LED is flashing.
3. USB Mini-B cable (to connect the camera to a computer).
4. Memory card.
5. Video cable (composite video).
6. Tripod mount 1/4″-20.
7. Latch for the cover to the connector bay.
8. Battery compartment cover.
9. Latch for the battery compartment cover.
#T559879; r. AG/12171/13006; en-US
