Pin configurations
25

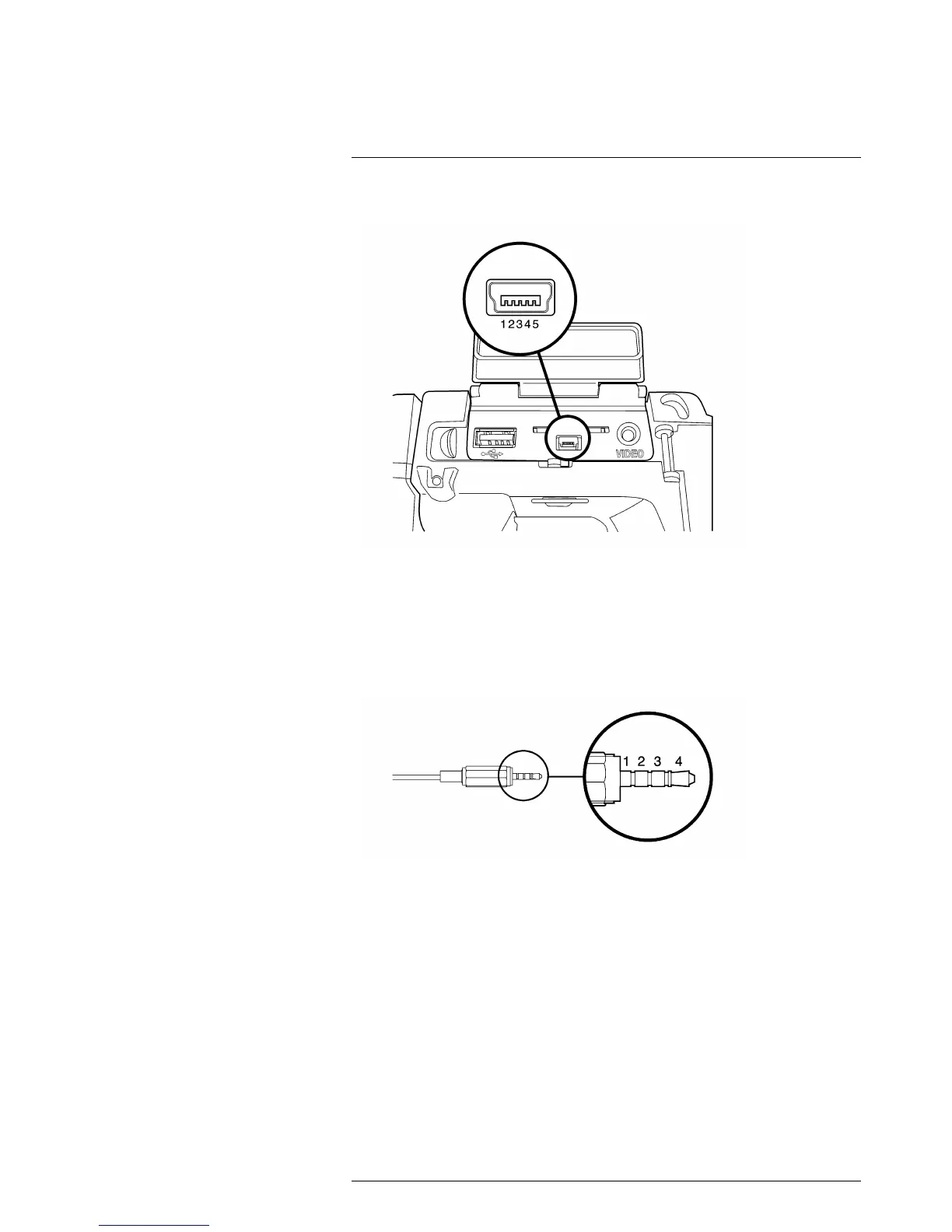

25.1 Pin configuration for USB Mini-B connector
1. +5 V (out)
2. USB –
3. USB +
4. N/C
5. Ground
25.2 Pin configuration for video connector
1. Audio right
2. Ground
3. Video out
4. Audio left
#T559879; r. AH/23788/24627; en-US
111
