Achieving a good image11

In automatic mode, the camera continuously adjusts the level and span for the best im-

age presentation. The colors are distributed based on the thermal content of the image

(histogram color distribution). The temperature scale to the right of the screen shows the

upper and lower temperatures of the current span.

By using the Auto adjustment region feature it is possible to select an area of the image,

and then have the colorization of the image adjusted based on the temperatures within

that selected area. For more information, see section 11.3.2 Auto adjustment region.

In manual mode, you can adjust the temperature scale to values close to the temperature

of a specific object in the image. This will make it possible to detect anomalies and small-

er temperature differences in the part of the image of interest. In manual mode, the col-

ors are distributed evenly from the lowest to the highest temperature (linear color

distribution).

In manual mode, you can adjust the image by touching the screen or by using the naviga-

tion pad. For more information, see sections 11.3.3 Manual adjustment by touching the

screen and 11.3.4 Manual adjustment by using the navigation pad.

• In live mode, touch the soft button

to switch between automatic and manual image

adjustment modes.

• In preview/edit mode, manual image adjustment mode is active.

Note You can also assign image adjustment functions to the programmable buttons.

For more information, see section 7.12 Programmable buttons.

• Switch between auto and manual: Allows you to switch between automatic and man-

ual image adjustment modes.

• Auto adjust the manual temperature scale: Allows you to perform an automatic adjust-

ment of the image while remaining in manual image adjustment mode.

11.3.1.1 Example 1

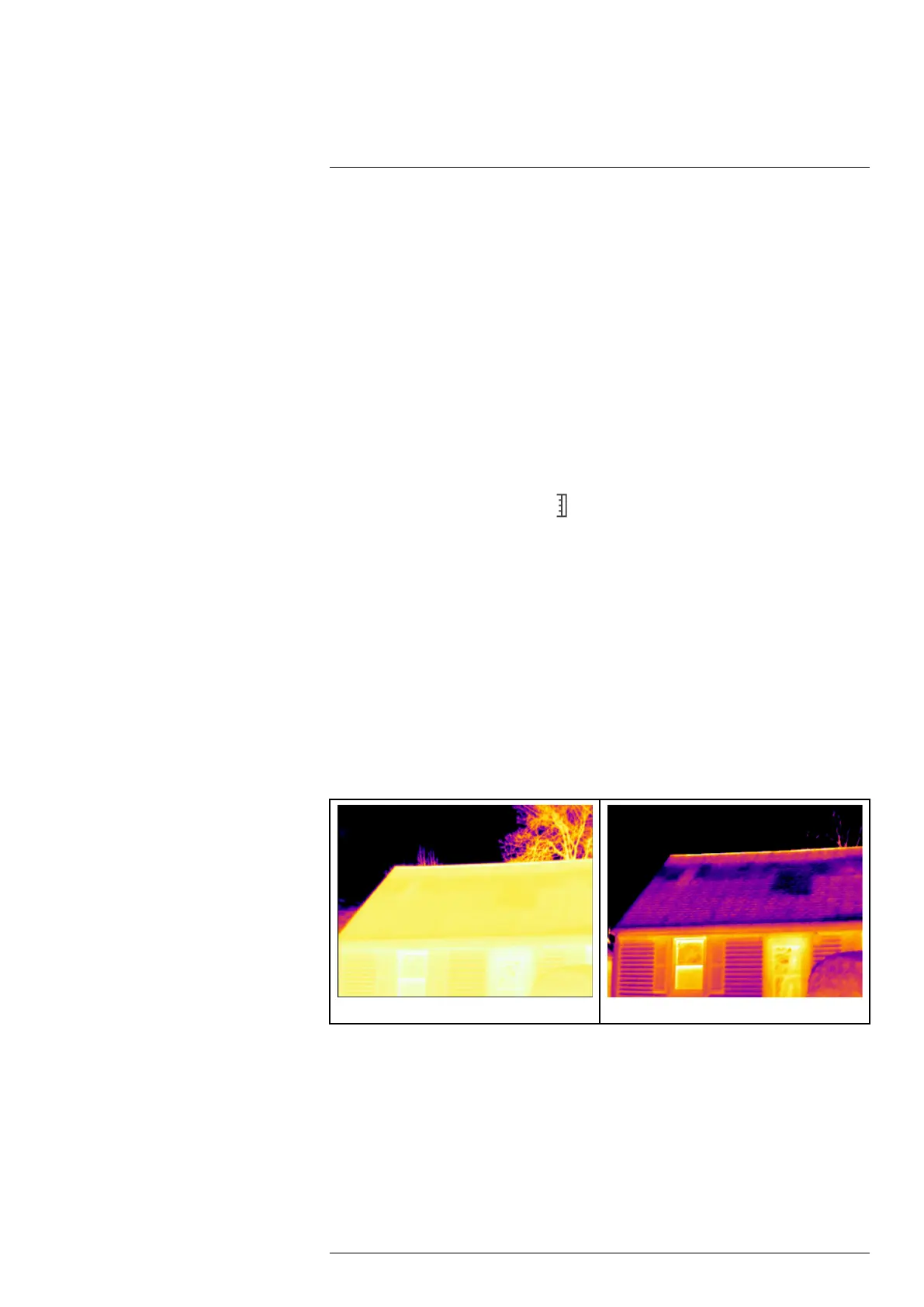

Here are two infrared images of a building. In the left image, which is auto-adjusted, the

large temperature span between the clear sky and the heated building makes a correct

analysis difficult. You can analyze the building in more detail if you change the tempera-

ture scale to values close to the temperature of the building.

Automatic Manual

11.3.1.2 Example 2

Here are two infrared images of an isolator in a power line. To make it easier to analyze

the temperature variations in the isolator, the temperature scale in the right image has

been changed to values close to the temperature of the isolator.
