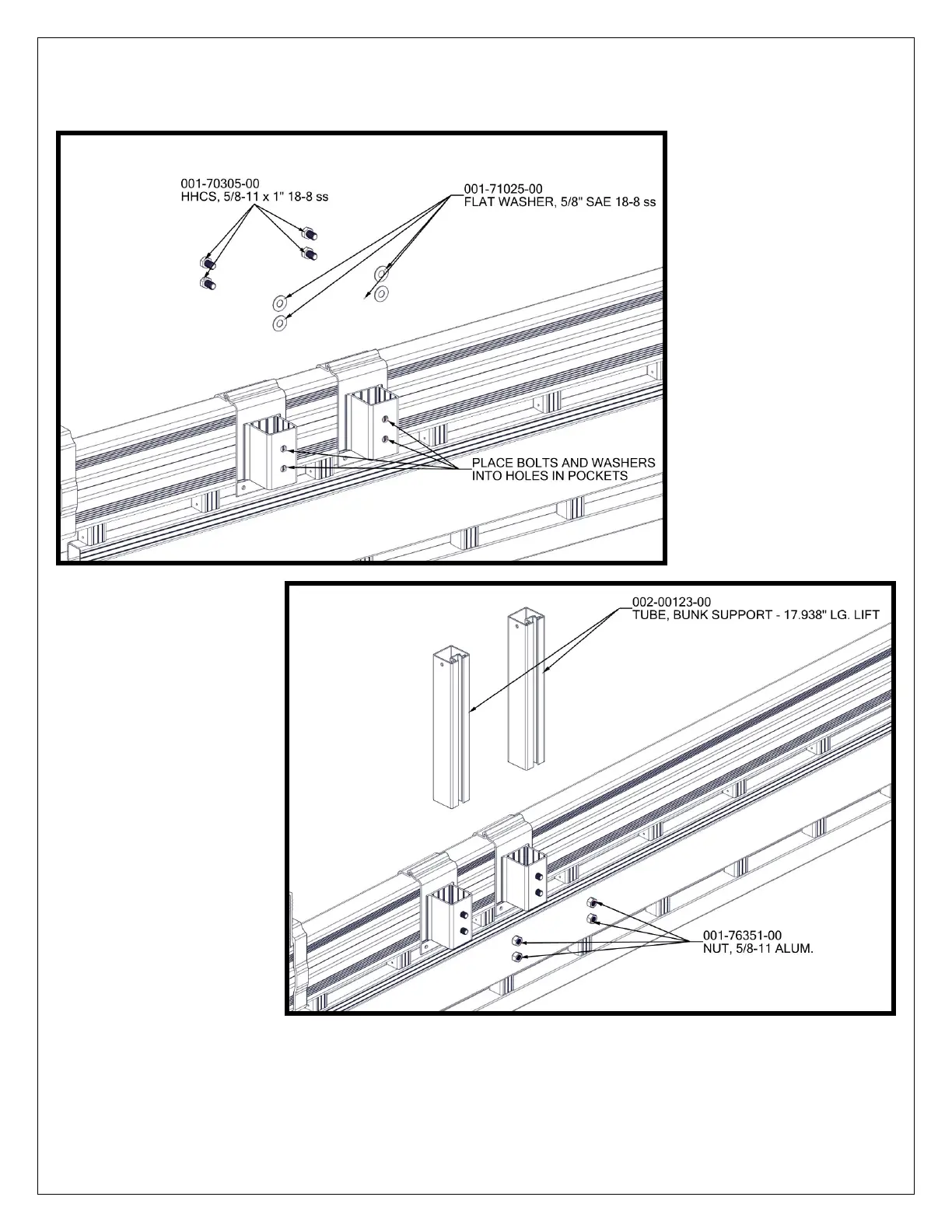

PLACE (2) 5/8” X 1” BOLTS AND (2) 5/8” WASHERS INTO EACH CLAMP WELDMENT POCKET (FIGURE 1.4).
INSERT UPRIGHT TUBES INTO CLAMP WELDMENTS AND ATTACH (2) 5/8” NUTS PER POCKET ON BOLTS
(FIGURE 1.5).
4X
4X
FIGURE 1.4
FIGURE 1.5
