Floe VSD6000 - Determining Lift Capacity Adequacy

SHEET 7 OF 16

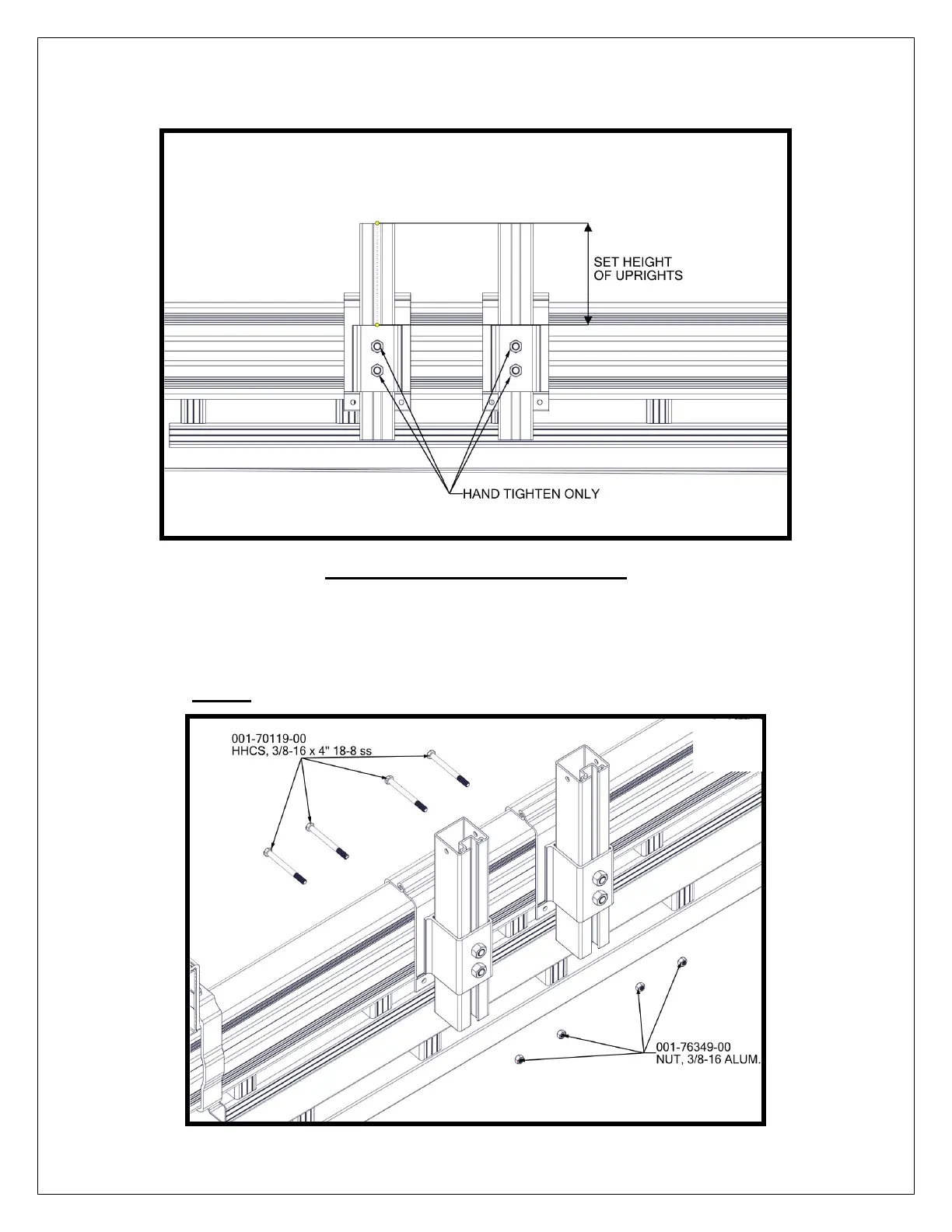

ADJUST HEIGHT AND HAND TIGHTEN ONLY (FIGURE 1.6). ATTACH CLAMP WELDMENTS TO CRADLE
BEAM USING (2) 3/8” X 4” BOLTS AND (2) 3/8” NUTS. DO NOT TORQUE (FIGURE 1.7).
BUNK/CRADLE PAD DISCLAIMER
DUE TO THE LARGE VARIETY OF BOAT HULL DESIGNS, WE STRONGLY RECOMMEND
THAT YOU CONSULT WITH YOUR BOAT’S MANUFACTURER TO ENSURE THAT YOU
ARE SUPPORTING YOUR BOAT PROPERLY TO AVOID ANY POTENTIAL DAMAGE.
NOTE: SEE FIGURE 2.5 FOR GENERAL GUIDELINES ON SETUP
FIGURE 1.6
4X
4X
FIGURE 1.7
