Floe VSD6000 - Page 8

SHEET 8 OF 16
STEP 2

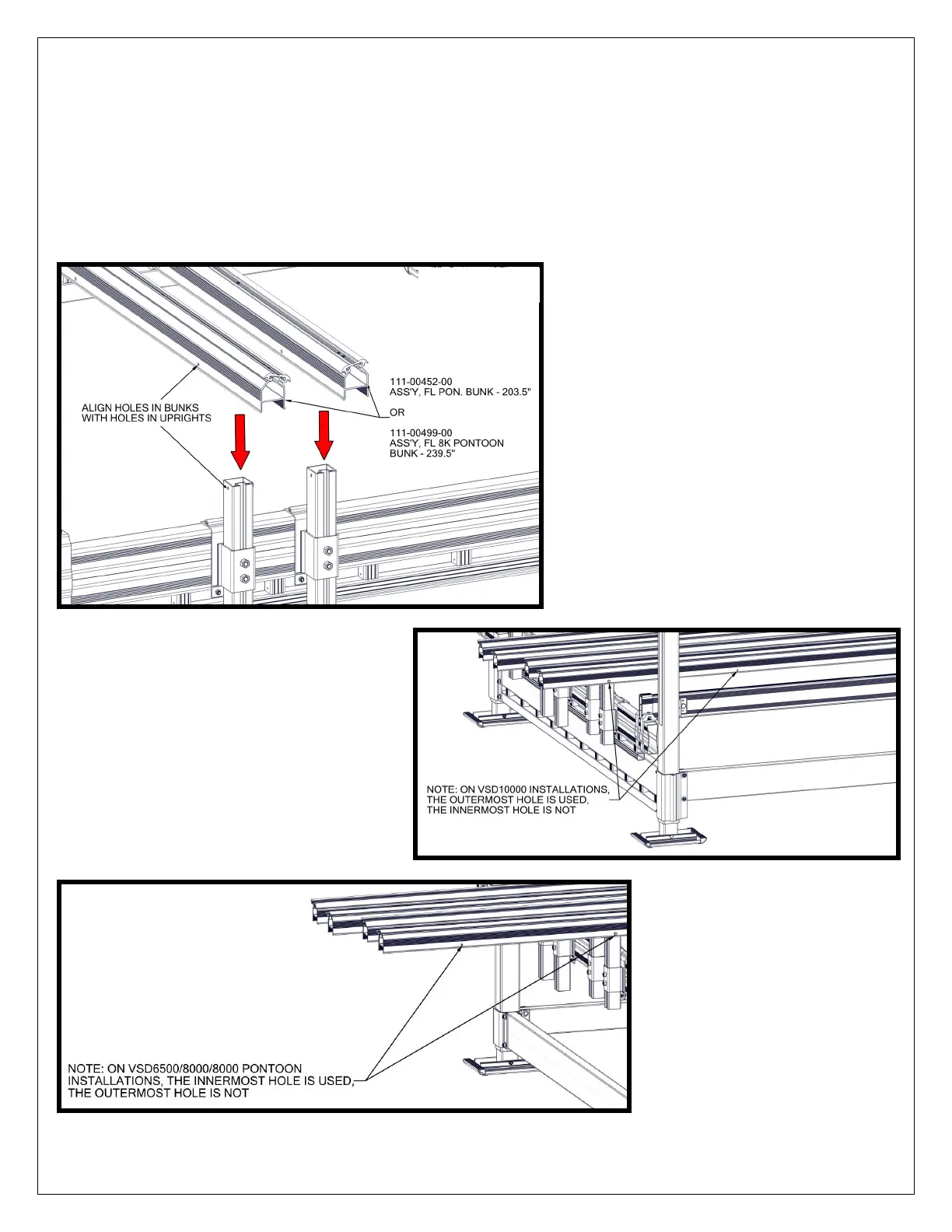

PLACE BUNKS ONTO UPRIGHTS WITH PADS ANGLED TO CRADLE PONTOON (FIGURE 2.1). FOR
VSD10000 INSTALLATIONS, THE OUTERMOST HOLE ON THE BUNKS IS USED, THE INNERMOST HOLE IS
NOT (FIGURE 2.2). FOR VSD6500/8000 INSTALLATIONS, THE INNERMOST HOLE ON THE BUNKS IS
USED, THE OUTERMOST HOLE IS NOT (FIGURE 2.2A). THIS WILL RESULT IN EXTRA OVERHANG OF THE
BUNKS.
FIGURE 2.1
4X
FIGURE 2.2
4X
FIGURE 2.2A
FIGURE 2.2
